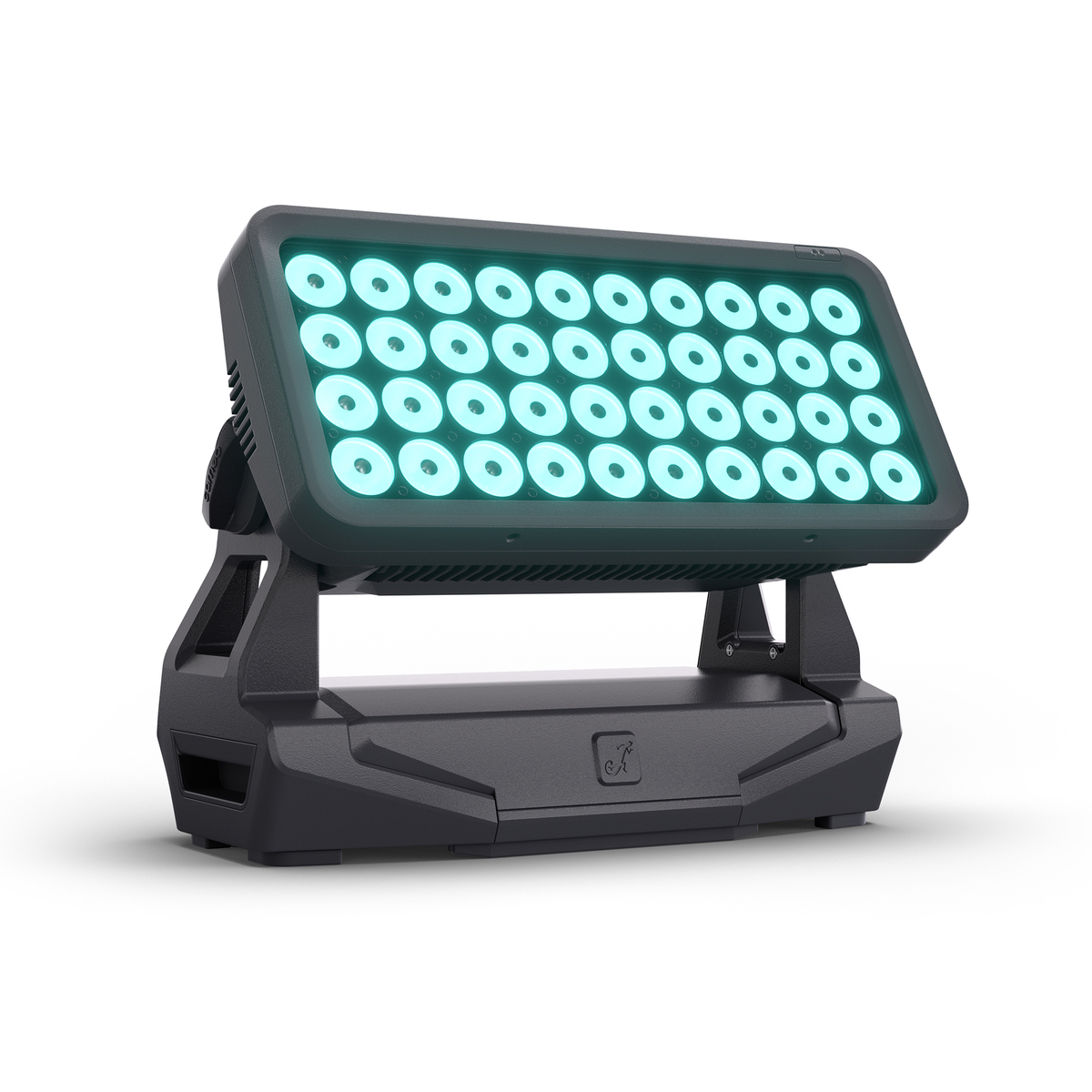

ZENIT® W600 G2

IP65 LED Wash Light

Item no.: CLZW600G2

Guarantee: 24 months

EAN: 4069724028949

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:ZENIT® Series

Versions:

Questions about the item?

Item highlights:

40 x 50 W RGBALC LEDs with 32,000 lm luminous flux at 660 W power consumption
High colour rendering with CRI 98 and TLCI 95 for stage, TV and broadcast
Extremely precise, calibrated XColour™ colour mixing and vertical segment control for creative applications
Only 12.9 kg in weight thanks to compact, IP65-rated die-cast magnesium housing
Swiss-engineered cooling system with selectable fan modes
Fast setup and maintenance via the new all-in-one Cameo Connect App: NFC setup, wireless configuration, firmware updates and direct service access
Quick rigging thanks to ergonomic handles and optimally positioned safety eyelets
Integrated Legacy Mode ensuring consistent colours, output and dimming behaviour with the previous model
Compatible with ZENIT® W600 G1 filters, barndoors and mounting materials
Optional Cameo SnapMag® FX Filter: DMX-controllable electronic frost for quick transitions from 18° to 54° beam angle

Features

The calibration chip ensures that the mixed colours of the lamp are reproduced identically when using several fixtures, thereby preventing any deviations in colour between the lamps.

The W-DMX™ feature facilitates the wireless transmission of DMX control data.

Protection class IP65
The IP code of the protection class indicates how well the sensitive parts of the device are protected from foreign bodies and water entering. This device is fully protected from the penetration of dust and water jets.

LED technology
LEDs are ideal for use in lighting systems: They are bright and have a low level of heat dissipation, a long operating life and low energy consumption. Moreover, LED systems often weigh less than conventional lighting systems.

Environment-friendly
The high energy efficiency, the long service life of the LED lamps and the low level of heat dissipation make this device particularly environment-friendly.

SnapMag™ technology allows objects to be simply and quickly magnetically fixed to a device.

Strobe
Strobes emit fast flash sequences, which makes movements appear “frozen” and creates a kind of slow-motion effect.

DMX512
Communication standard DMX512 was developed specially for lighting systems in 1986. Up to 32 DMX devices can be daisy-chained and controlled via a control source (e.g. a light mixer).

RDM
This device has full RDM capability. The RDM protocol supplements the DMX protocol and enables bidirectional communication via a standard DMX network. It simplifies configuration, administration and monitoring of RDM devices connected to an RDM controller.

RGBALC
This product contains an RGBALC colour mix consisting of red, green, blue, amber, lime and cyan.

The high-frequency control of the LEDs while dimming ensures flicker-free operation, including for filming purposes.

Various dispersion angles possible

Specifications

Illuminant type

RGBALC LED

Luminous flux

32,000 lm

Beam/Field angle

Beam: 18° / Field: 34°

LED PWM frequency

400 Hz, 650 Hz, 1,530 Hz, 3,600 Hz, 6,000 Hz, 12 kHz, 18.9 kHz, 25 kHz

Dimmer resolution

16 Bit

Dimmer curves

Linear, Exponential, Logarithmic, S curve, Halogen

Colour mix functions

RGB, x-y, HSI, CCT + Tint

LED colours

Red, Green, Blue, Amber, Lime, Cyan

Correlated colour temperature (CCT)

1,800 - 10,000 K

Halogen simulation redshift/DTW

Yes

Calibration

Smart calibration

Colour rendering index (CRI)

> 98

Min. TLCI

95

Controller protocols

CRMX, DMX512, RDM, W‑DMX™ (Transceiver)

Number of DMX control modes

17

Stand alone operating modes

Master/slave, Stand-alone

Data in connector

XLR 5-pole male

Data out connector

XLR 5-pole female

Operation voltage

100 V AC - 240 V AC / 50 - 60 Hz

Rated power

700 W

Min. Cos Phi power factor (230 V)

0.99

Inrush current

68 A / 30 ms

Mains fuse

T10AL/250 V

Max. output current

9 A

Cabinet material

Magnesium

Colour

Black

Protection class

IP65

Risk group

2

Ambient temperature

-15 - 45 °C

Width

400 mm

Height

292 mm

Depth

197 mm

Weight

12.9 kg

Included Accessories

Mains cable, Mounting bracket

Description

ZENIT® W600 G2

One Fixture. Any Scenario.

The Cameo ZENIT® W600 G2 continues the success story of the industry standard for outdoor wash lights. With its 660 W LED engine, 32,000 lumens of luminous flux, a CRI of 98 and a TLCI of 95, the second generation delivers even more power, precision and flexibility – from theatre and TV productions to large-scale festival stages.

Equipped with 40 x 50 W RGBALC LEDs and the integrated XColour™ technology, the ZENIT® W600 G2 features a highly precise, calibrated colour mixing system producing a continuous and natural colour spectrum. Thanks to vertical segment control, seamless clustering of multiple units (both vertically and horizontally) and the new SnapMag® FX electronic frost, which enables quick transitions from 18° to 54° beam angle, the fixture offers maximum creative freedom.

In everyday operation, the W600 G2 proves exceptionally practical: weighing just 12.9 kg, with an ergonomic top handle, optimally positioned safety eyelets and IP65 protection, it is a reliable companion for fast rigging and robust outdoor use.

With the new Cameo Connect App, fixtures can be configured quickly and wirelessly via NFC – ideal for large productions and tight schedules. In addition, the app provides direct access to the Adam Hall Service Portal, including error diagnostics, support functions and firmware updates for efficient device management.

For maximum investment security, the ZENIT® W600 G2 is fully compatible with all filters and accessories from the G1 series. It can also be operated in legacy mode, allowing G1 and G2 units to be used together with identical colours, looks and output.
