ZENIT® W600

ZENIT® W600

Outdoor LED Wash Light

Item no.: CLZW600

Guarantee: 24 months

EAN: 4069724181194

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:ZENIT® Series

Versions:

Item highlights:

  • 40 x 15 W RGBW LEDs with 21,000 lm total output for uniform and powerful colour mixing
  • 18° beam and 35° field angles without diffuser
  • Optional SnapMag® filter frames for 25°, 45°, 100° or elliptical 60° x 10° beam angle selection and installation without tools or dismantling
  • Built-in 2.4 GHz W-DMX™ transceiver
  • Wireless master-and-slave function
  • Wireless DMX, RDM (via DMX and W-DMX™), standard DMX plus standalone modes with automated programs
  • IP65 rating for outdoor use
  • Temperature controlled fans for optimized operation and low noise
  • 16-bit technology for high-resolution colours and dimming

Features

RGB additive colour system plus white LEDs
Additional white LEDs create more contrast and clearer colour boundaries. What is more, they improve the creation of white and pastel colours.

Specifications

LED data
40 x 15 W RGBW LED
Luminous flux
21,000 lm
Beam/Field angle
Beam: 18° / Field: 35°
LED PWM frequency
800 Hz, 1,200 Hz, 2,000 Hz, 3,600 Hz, 12 kHz, 25 kHz
Controller protocols
DMX512, RDM
Number of DMX control modes
7
Stand alone operating modes
Autorun, Master/slave, Static
Data in connector
XLR 5-pole male IP65
Data out connector
XLR 5-pole female IP65
Operation voltage
100 V AC - 240 V AC / 50 - 60 Hz
Rated power
565 W
Cabinet material
Aluminium
Colour
Black
Cooling system
Temperature controlled fan cooling
Protection class
IP65
Ambient temperature
-15 - 45 °C
Width
463 mm
Height
291 mm
Depth
161 mm
Weight
13 kg
Product dimensions
463 x 161 x 291 mm
Required Accessories
2 x Omega-Montagebügel

Description

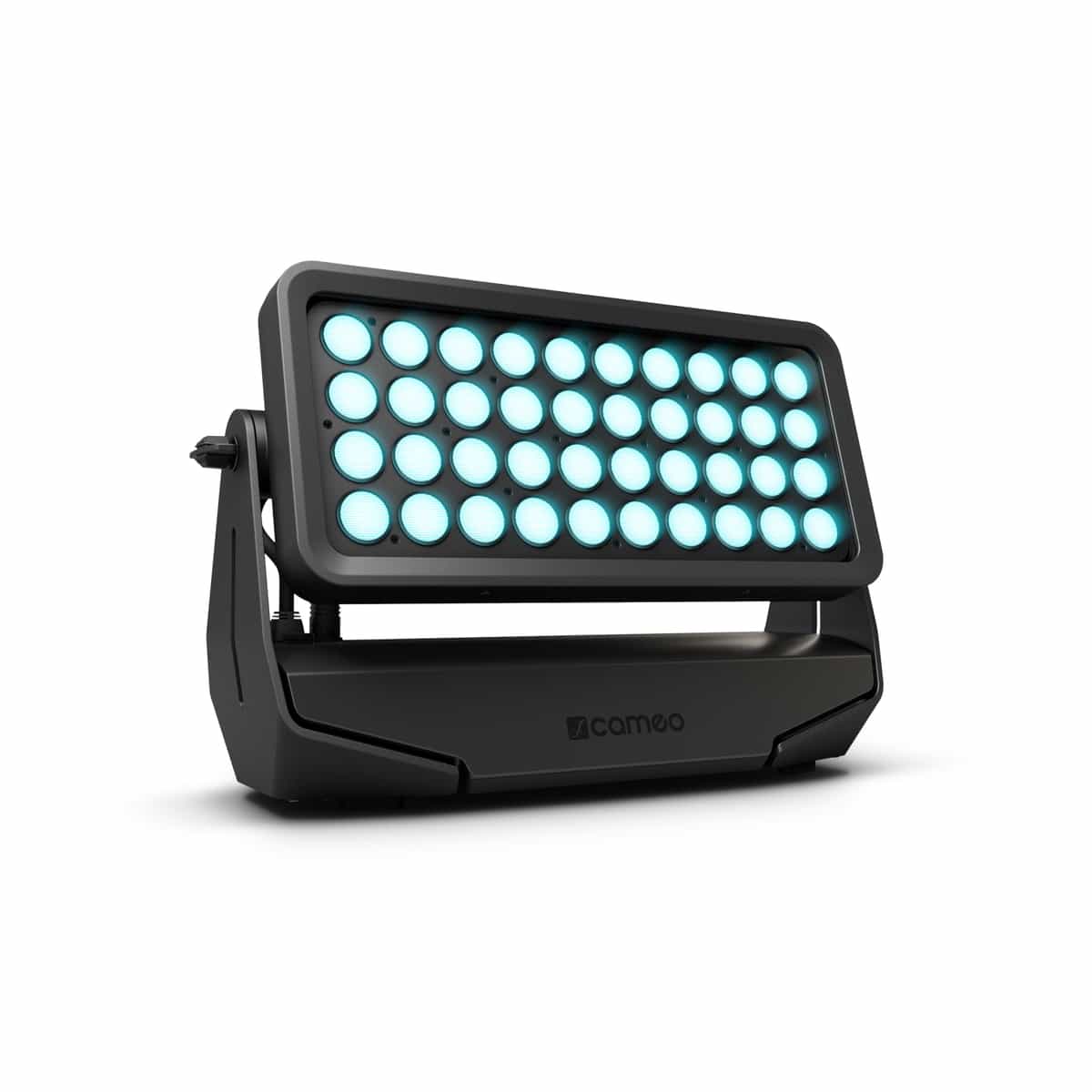

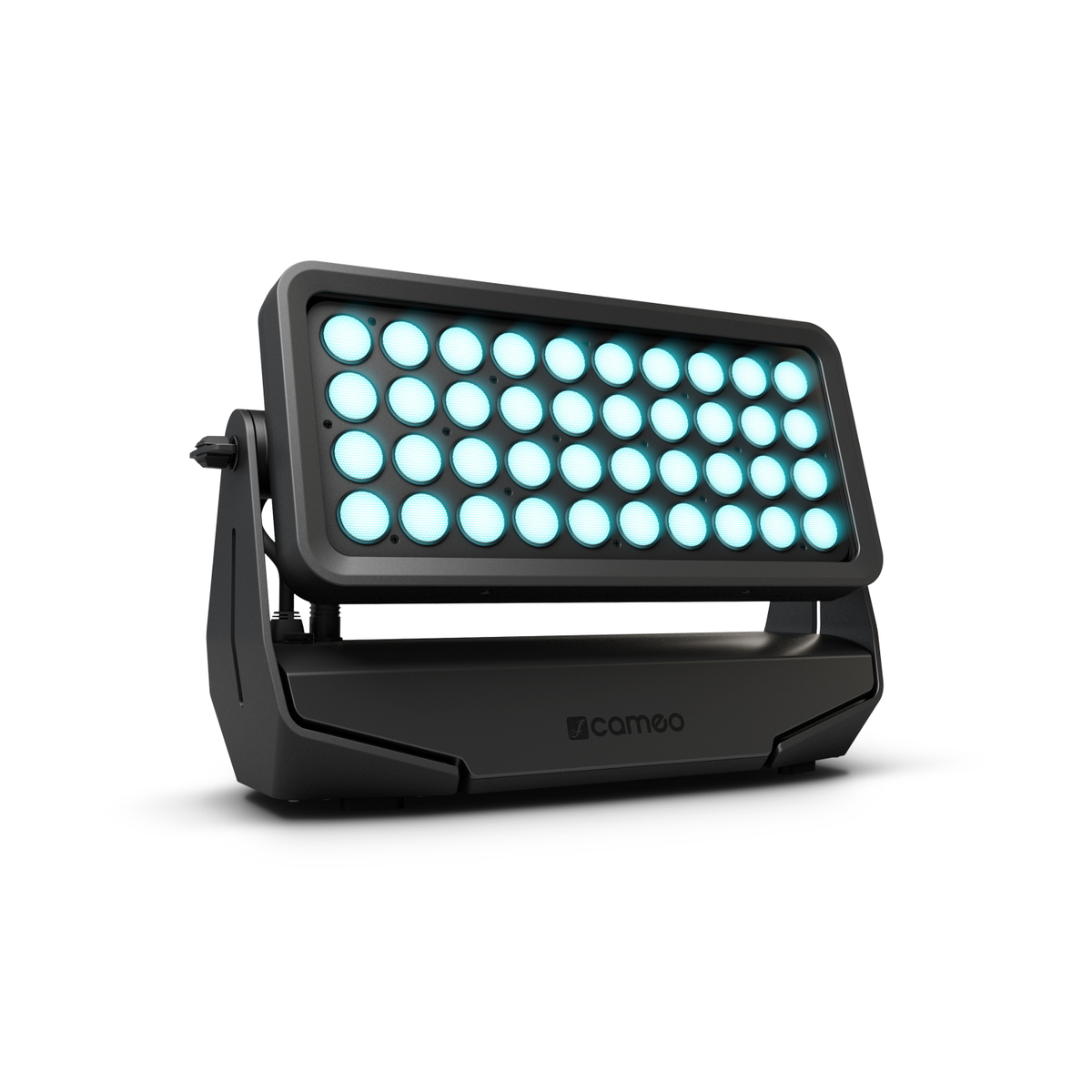

ZENIT® W600

Equipped with a total of forty 15 W RGBW LEDs for a massive 21,000 lm output, the Cameo ZENIT® W600 is a powerful IP65 rated wash light for demanding outdoor applications. In addition to RDM and standard DMX capability it boasts a built-in 2.4 GHz W-DMX™ transceiver by Wireless Solution Sweden AB for convenient wireless control. The fixture also provides a rich variety of stunning automated programs for standalone or wireless master-and-slave operation.

For maximum versatility, the ZENIT® W600 sports Cameo's innovative SnapMag® technology. It allows you to add filter frames in less than a second without the need for tools or dismantling. Magnetic SnapMag® frames with precision light shaping diffusers providing a choice of 25°, 45°, 100° or elliptical 60° x 10° beam angles and a 4-way barn door are available as dedicated accessories.

Featuring advanced 16-bit technology for high-resolution colour mixing and dimming and an 18° beam spread, the ZENIT® W600 projects hugely intense, uniform washes. With colour temperature and individual LED colour correction, four selectable dimming curves and fully adjustable halogen lamp-like dimming response, the fixture is the perfect tool for highly professional lighting.

The ZENIT® W600's die cast aluminium housing integrates three temperature controlled fans that ensure optimized, low noise operation while a bright OLED display with four touch buttons permits easy, intuitive configuration. A security lock prevents unauthorized access to the luminaire's menu settings.
