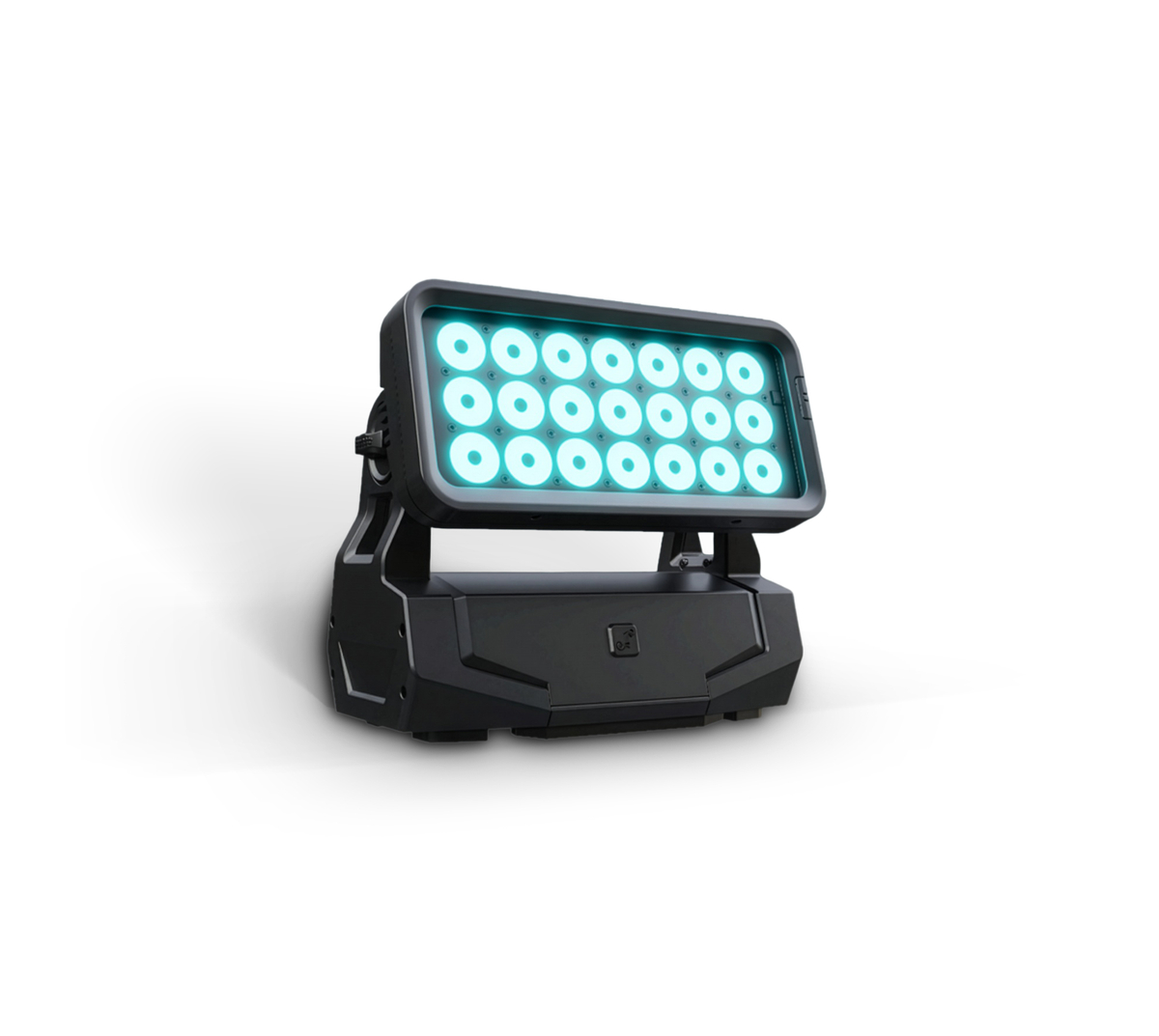

ZENIT® W300 G2
NEW

ZENIT® W300 G2

IP65 LED Wash Light

Item no.: CLZW300G2

Guarantee: 24 months

EAN: 4069724192190

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:ZENIT® Series

Versions:

Item highlights:

  • 21 x 50 W RGBALC LEDs with 14,000 lm luminous flux at 300 W power consumption
  • High colour rendering with CRI 98 and TLCI 95 for stage, TV and broadcast
  • Extremely precise, calibrated XColour™ colour mixing and vertical segment control for creative applications
  • Only 9.5 kg in weight thanks to compact, IP65-rated die-cast magnesium housing
  • Swiss-engineered cooling system with selectable fan modes
  • Fast setup and maintenance via the new all-in-one CAMEO CONNECT App: NFC setup, wireless configuration, firmware updates and direct service access
  • Quick rigging thanks to ergonomic handles and optimally positioned safety eyelets
  • Integrated Legacy Mode ensuring consistent colours, output and dimming behaviour with the previous model
  • Compatible with ZENIT® W300 G1 filters, barndoors and mounting materials
  • Optional Cameo SnapMag® FX Filter: DMX-controllable electronic frost for quick transitions of the beam angle

Specifications

Illuminant type
RGBALC LED
Illuminant power
50 W
Luminous flux
14,000 lm
Beam/Field angle
Beam: 18° / Field: 34°
LED PWM frequency
400 Hz, 650 Hz, 1,530 Hz, 3,600 Hz, 12 kHz, 18.9 kHz, 25 kHz
Dimmer resolution
16 Bit
Dimmer curves
Linear, Exponential, Logarithmic, S curve, Halogen
Colour mix functions
RGB, x-y, HSI, CCT + Tint
LED colours
Red, Green, Blue, Amber, Lime, Cyan
Correlated colour temperature (CCT)
1,800 - 10,000 K
Halogen simulation redshift/DTW
Yes
Calibration
Smart calibration
Min. TLCI
95
Controller protocols
CRMX, DMX512, RDM, W‑DMX™ (Transceiver)
Number of DMX control modes
17
Stand alone operating modes
Master/slave, Stand-alone
Data in connector
XLR 5-pole male
Data out connector
XLR 5-pole female
Operation voltage
100 V AC - 240 V AC / 50 - 60 Hz
Rated power
300 W
Min. Cos Phi power factor (230 V)
0.99
Inrush current
68 A / 30 ms
Mains fuse
T10AL/250 V
Max. output current
9 A
Cabinet material
Magnesium
Colour
Black
Protection class
IP65
Risk group
2
Ambient temperature
-15 - 45 °C
Weight
9.5 kg
Included Accessories
Mains cable, Mounting bracket

Description

ZENIT® W300 G2

The Cameo ZENIT® W300 G2 expands the ZENIT® G2 series with a compact yet powerful solution for professional outdoor wash applications. As the smaller sibling of the ZENIT® W600 G2, it carries over the core technologies of the series and delivers them in an exceptionally lightweight and efficient format – ideal for setups where flexibility, weight and handling are key factors.

Equipped with 21 × 50 W RGBALC LEDs, a power consumption of 300 W and a luminous flux of 14,000 lumens, the ZENIT® W300 G2 offers impressive performance with high energy efficiency. Thanks to XColour™ technology, it features an extremely precise, calibrated colour mixing system and delivers outstanding colour quality with a CRI of 98 and a TLCI of 95 for stage, TV and broadcast applications. Vertical segment control enables differentiated looks and creative lighting accents.

In daily operation, the ZENIT® W300 G2 proves highly practical: weighing just 9.5 kg, its compact IP65-rated die-cast magnesium housing, ergonomic handles and optimally positioned safety eyelets are designed for fast rigging and reliable outdoor use. The Swiss-engineered cooling system with selectable fan modes ensures stable and quiet operation, even under demanding conditions.

The new Cameo Connect App allows quick and wireless configuration via NFC and provides direct access to the Adam Hall Service Portal, including firmware updates and support functions. For maximum investment security, the ZENIT® W300 G2 is fully compatible with filters, barndoors and mounting accessories from the W300 G1 series. In addition, it can be operated in Legacy Mode, allowing G1 and G2 fixtures to be used together with identical colours, looks and output. Optionally, the Cameo SnapMag® FX Filter extends the system with an electronic, DMX-controlled frost for fast adjustment of the beam angle.
