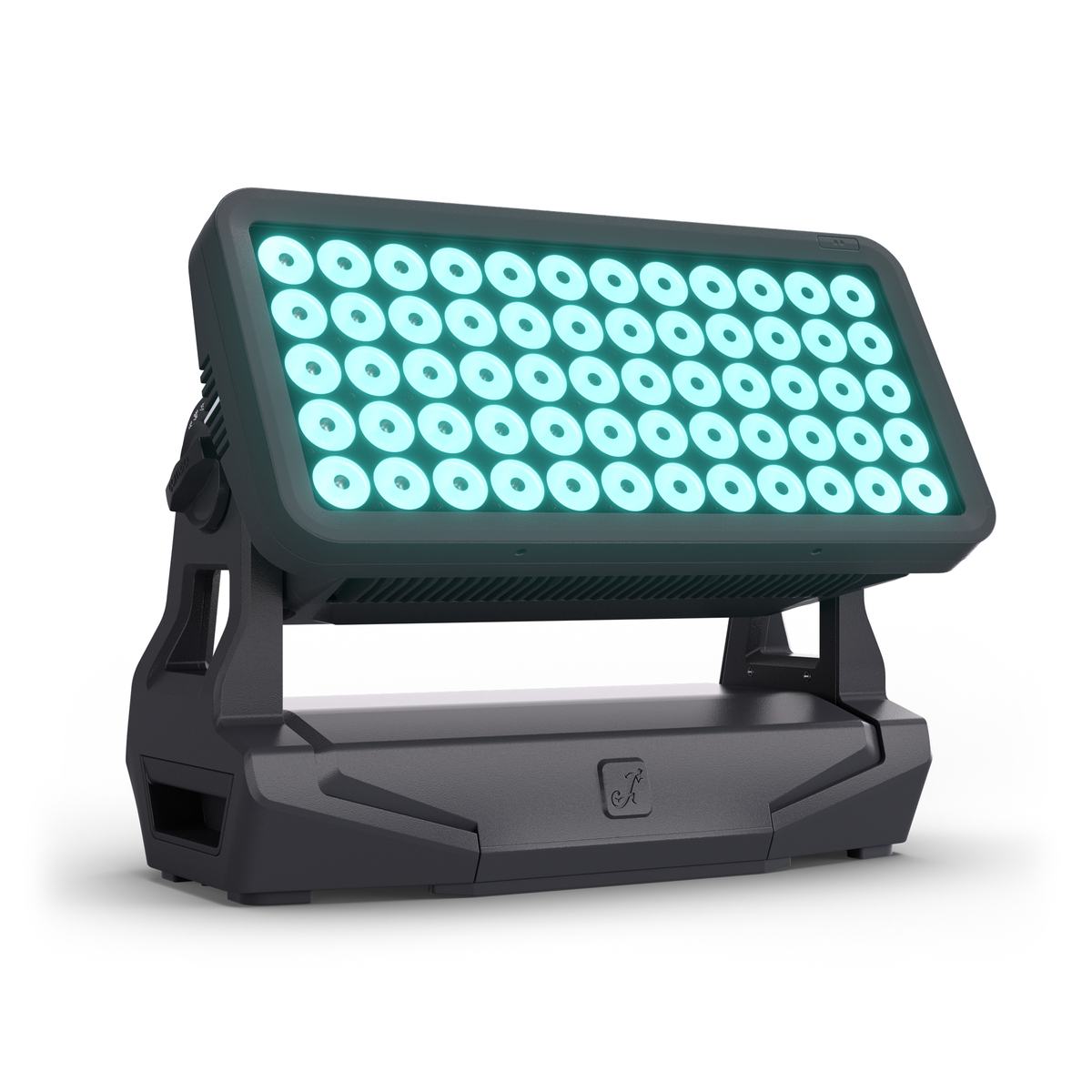

ZENIT® W1200 G2
NEW

ZENIT® W1200 G2

IP65 LED Wash Light

Item no.: CLZW1200G2

Guarantee: 24 months

EAN: 4069724187127

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:ZENIT® Series

Versions:

Item highlights:

  • 60 x 50 W RGBALC LEDs with 50,000 lm luminous flux at 1,200 W power consumption
  • High colour rendering with CRI 98 and TLCI 95 for stage, TV and broadcast
  • Extremely precise, calibrated XColour™ colour mixing and vertical segment control for creative applications
  • Only 21.5 kg in weight thanks to compact, IP65-rated die-cast magnesium housing
  • Swiss-engineered cooling system with selectable fan modes
  • Fast setup and maintenance via the new all-in-one CAMEO CONNECT App: NFC setup, wireless configuration, firmware updates and direct service access
  • Quick rigging thanks to ergonomic handles and optimally positioned safety eyelets
  • Integrated Legacy Mode ensuring consistent colours, output and dimming behaviour with ZENIT® G1 models
  • Optional Cameo SnapMag® FX Filter: DMX-controllable electronic frost for quick transitions of the beam angle

Specifications

Illuminant type
RGBALC LED
Illuminant power
50 W
Luminous flux
50,000 lm
Beam/Field angle
Beam: 18° / Field: 34°
LED PWM frequency
400 Hz, 650 Hz, 1,530 Hz, 3,600 Hz, 6,000 Hz, 12 kHz, 18.9 kHz, 25 kHz
Dimmer resolution
16 Bit
Dimmer curves
Linear, Exponential, Logarithmic, S curve, Halogen
Colour mix functions
RGB, x-y, HSI, CCT + Tint
LED colours
Red, Green, Blue, Amber, Lime, Cyan
Correlated colour temperature (CCT)
1,800 - 10,000 K
Halogen simulation redshift/DTW
Yes
Calibration
Smart calibration
Colour rendering index (CRI)
> 98
Min. TLCI
95
Controller protocols
CRMX, DMX512, RDM, W‑DMX™ (Transceiver)
Number of DMX control modes
17
Stand alone operating modes
Master/slave, Stand-alone
Data in connector
XLR 5-pole male
Data out connector
XLR 5-pole female
Operation voltage
100 V AC - 240 V AC / 50 - 60 Hz
Rated power
1,200 W
Min. Cos Phi power factor (230 V)
0.99
Inrush current
68 A / 30 ms
Mains fuse
T10AL/250 V
Max. output current
9 A
Cabinet material
Magnesium
Colour
Black
Protection class
IP65
Risk group
2
Ambient temperature
-15 - 45 °C
Weight
21.5 kg
Included Accessories
Mains cable, Mounting bracket

Description

ZENIT® W1200 G2

The Cameo ZENIT® W1200 G2 expands the ZENIT® G2 series with a high-output solution for large-scale outdoor wash applications. Featuring a powerful 1,200 W LED engine and a luminous flux of up to 50,000 lumens, it extends the performance range of the series wherever maximum reach and intensity are required.

Equipped with 60 × 50 W RGBALC LEDs and integrated XColour™ technology, the ZENIT® W1200 G2 operates with an extremely precise, calibrated colour mixing system, delivering a continuous and natural colour spectrum. With a CRI of 98 and a TLCI of 95, it is ideally suited for stage, TV and broadcast applications. Vertical segment control enables differentiated looks, smooth transitions and creative lighting accents, even across very large illuminated surfaces.

Designed specifically for professional outdoor use, the ZENIT® W1200 G2 features an IP65-rated die-cast magnesium housing, ergonomic handles and optimally positioned safety eyelets for secure rigging and reliable operation in touring and fixed installations. The Swiss-engineered cooling system with selectable fan modes ensures stable performance, even under demanding environmental conditions.

The new Cameo Connect App allows fixtures to be configured quickly and wirelessly via NFC and provides direct access to the Adam Hall Service Portal, including firmware updates and support functions. For seamless integration into existing setups, the ZENIT® W1200 G2 includes an integrated Legacy Mode, allowing it to be operated alongside ZENIT® G1 fixtures with identical colours, looks and dimming behaviour. Optionally, the Cameo SnapMag® FX Filter extends the system with an electronic, DMX-controlled frost for fast adjustment of the beam angle.
