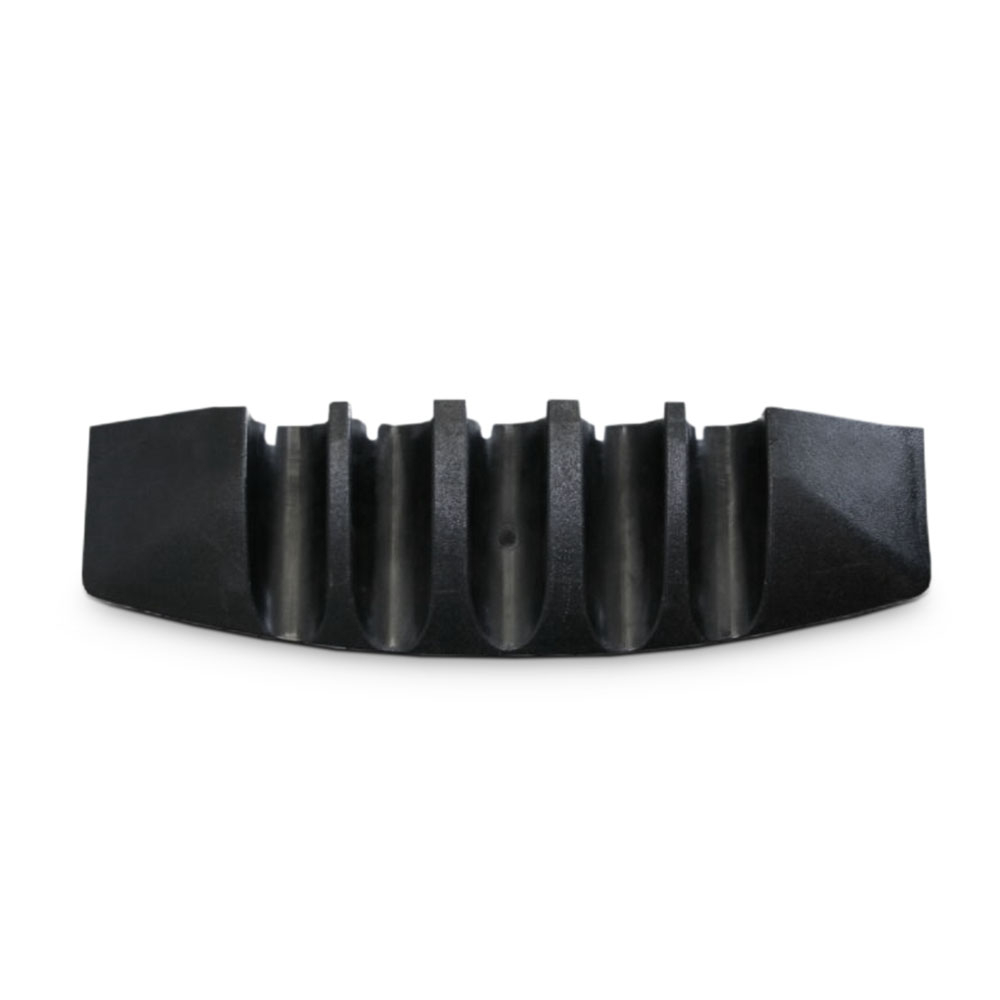

XXL End Ramp
Cable protector 5 channels | end piece with connector | heavy-duty design | height 8.7 cm
Item no.: 85510
Guarantee: 60 months
EAN: 4049521015663
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:XXL
Item highlights:
- Heavy-duty Cable protector made of black, recyclable polyurethane with integrated carrying handles for demanding applications
- 5 channels: 1 channel 60 x 63 mm, 2 channels each 61 x 59 mm and 62 x 65 mm
- Three channels suitable for C-hose couplings
- Load capacity approx. 5 tonnes / 25 x 30 cm
- Fire protection class B2 (DIN 4102)
- Resistant to oil, acid, petrol and short-term contact with solvents
- Reliable cable, hose and personal protection for indoor and outdoor use
- TÜV Süd certified
Specifications
Material
TPU (Thermoplastic polyurethane)
Surface structure
Ribbed
Colour
Black
Maximum load (on 25 x 30 cm)
5 t
Chemical resistance
Petrol, Solvents (short-term contact), Oil
Hardness range (±4 Shore A)
88 Shore A
Shape
Round
Quantity
5
Cable ducts size (W x H)
60 mm x 59 mm - 62 mm x 63 mm
Duct length (effective length)
700 mm
Fire protection class per DIN 4102-1
B2
Fire protection class per EN 13501-1
E
Inflammability (UL 94)
V-2, HB
Ambient temperature
-30 - 60 °C
Length
200 mm
Width
696 mm
Height
87 mm
Weight
2.9 kg
Description
XXL End Ramp
End piece with connector for DEFENDER XXL
