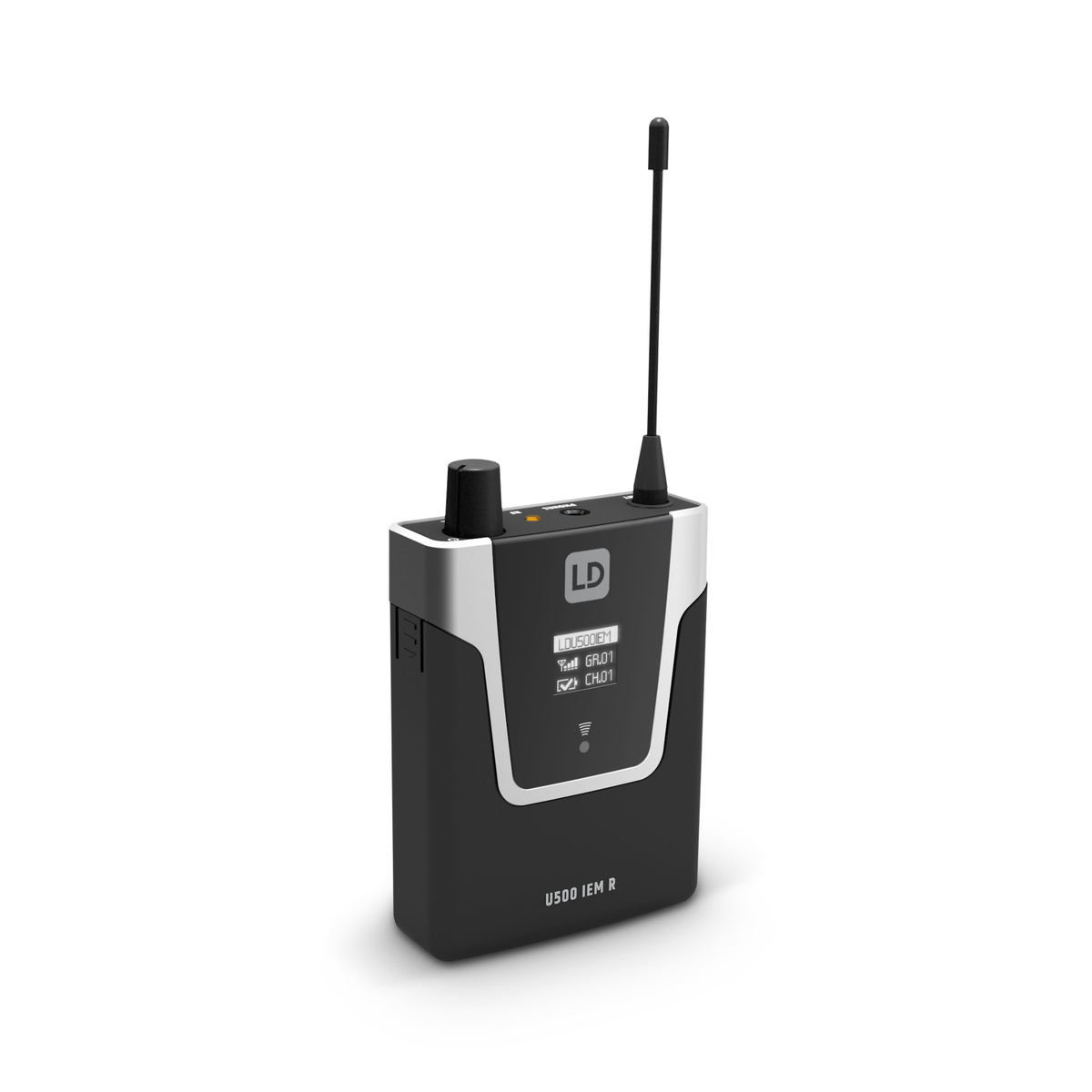

U505 IEM R

Receiver - 584 - 608 MHz

Item no.: LDU505IEMR

Guarantee: 24 months

EAN: 4049521396526

Sliding scale: 1

Unit: Piece

Packaging unit: 100

Series:U500 IEM

Versions:

Questions about the item?

Find a dealer

Item highlights:

Reliable in-ear monitoring with more than 100 m range
96 available channels
2, 10 or 30 mW ERP selectable transmission power
Convenient infrared frequency syncing
Individual user name assignment and memory for 10 custom presets
Extended frequency response
3-band EQ with parametric mids
Switchable limiter
Stereo and mono modes of operation
High-contrast OLED display
Transmitter with direct monitoring headphone output
Bodypack receiver with three selectable squelch levels
10 h of bodypack receiver operation on two AA batteries
U500® IEM transmitter compatible with U300® IEM bodypacks

Specifications

Material

ABS

Wireless frequencies

584 - 608 MHz

Frequency response (-6 dB, rel. Avg)

40 - 16,000 Hz

Colour

Black

Accent colour

Silver

Channel groups number

Channels

120 (10 groups with 12 channels per each)

Antennas

1 (fixed)

Headphone out connector type

3.5 mm Jack TRS female

Min. headphone impedance

16 Ω

Max. headphone out power

80 mW

Batteries

2 x 1.5 V AA/LR6 @ max.10 h

Built in battery tester

Yes

Width

64 mm

Height

100 mm

Depth

24 mm

Weight

95 g

Description

U505 IEM R

Move freely on stage while the perfect monitor mix is delivered directly to your ears. U500® In-Ear Monitoring Systems feature 96 selectable channels and 2, 10 or 30 mW switchable RF output power for a transmission range greater than 100 m. Convenient infrared synchronisation of transmitter and receiver permits quick and trouble-free setup. The systems come with high-contrast OLED information displays and allow for individual user name assignment. In addition, you can save 10 custom presets. With a signal-to-noise ratio greater than 95 dB and less than 0,3% THD, the U500® In-Ear Systems' noise floor is exceptionally low.

Drawing little current only, the U500® IEM Bodypack Receiver operates up to 10 hours on two AA batteries. A volume control allows convenient in-performance monitoring level adjustment. Three selectable squelch levels ensure interference-free operation at all times.
