Item no.: LDTR212
Guarantee: 60 months
EAN: 4049521893117
Sliding scale: 1
Unit: Piece
Packaging unit: 6
Series:TICA®
Versions:
Item highlights:
- 2 loudspeaker circuits
- 120W power handling per channel
- Inputs from 8, 4 or 2 Ohms amplifier signals
- Outputs 100V, 70V or 25V line output to loudspeaker circuits
- All-in-one design combining the transformer and protective chassis
- Compact and easy to mount and connect
Specifications
Description

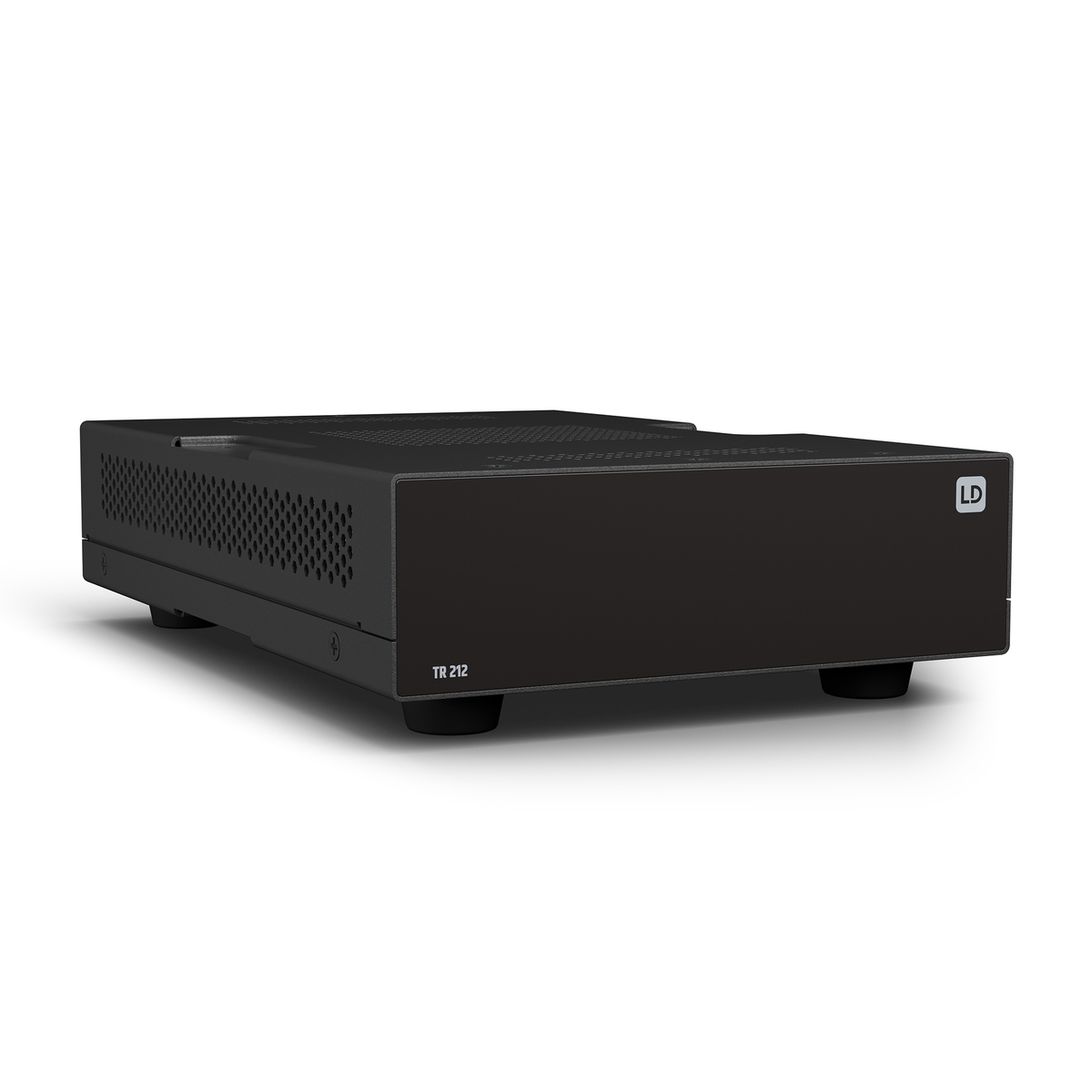

TR 212
Part of the TICA® series, the TR212 is a two-channel 120W loudspeaker transformer designed to take a low impedance amplifier signal and convert to a constant voltage loudspeaker line. This allows a conventional low impedance amplifier to be used to drive multiple loudspeakers on each of its outputs, when used with loudspeakers that have a constant voltage connection. Measuring 142 x 44 x 226 mm, its convenient form factor and included mounting plates allow it to be installed discreetly almost anywhere.
Alternatively, it fits into 1/3 19-inch rack.
Use the optional rack tray to slot several TICA® series products alongside each other and build a system to your exact requirements, using minimal rack space.
