Item no.: LDSUB88A
Guarantee: 24 months
EAN: 4049521081811
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:SAT G2
Versions:
Item highlights:

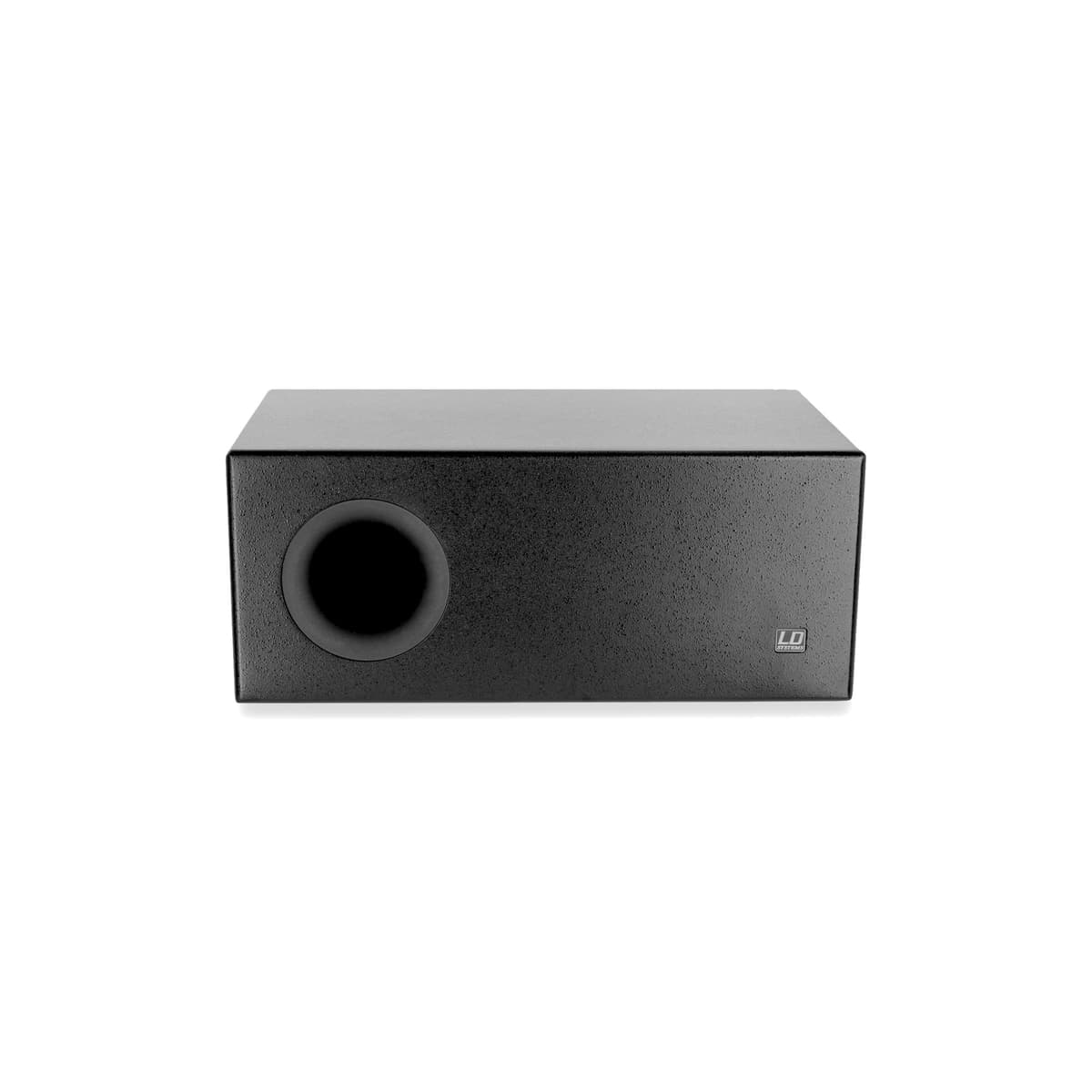

The Ld Systems SUB88A is an active 2 x 8" bandpass subwoofer with a power output of 150 W RMS.
The SUB88A features a 150 Watt (RMS) Mono-amplification unit offering great sound and dynamic characteristics. It is a perfect partner for the SAT62A active speaker or for the passive models SAT42/242/62 in combination with an external amplification unit such as the DJ200.
It can naturally be used with any other high/medium speaker if you wish to complete your sound with a deep and powerful bass fundament.
Specifications
Product type
PA subwoofer
Type
Powered
Low/mid Woofer dimensions
2 x 8 "
Woofer dimensions (mm)
2 x 203 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
Amplifier
Class A/B
System Power (RMS)
150 W
Frequency response
40 - 120
SPL (1W/1m)
92 dB
Max. SPL
115 dB
Protection circuits
overload
Controls
volume, Phase 180°, Low-pass filter (70 - 140 Hz)
Indicators
Limit, Power, Signal
Line inputs
1
Line input connectors
6.3 mm jack, XLR
Power supply
transformer
Operating voltage
220 V AC - 240 V AC, 50-60 Hz
Cabinet material
15 mm MDF
Cabinet surface
texture paint
Cabinet colour
Black
Cabinet construction
Bandpass
Width
600 mm
Height
250 mm
Depth
350 mm
Weight
15 kg
