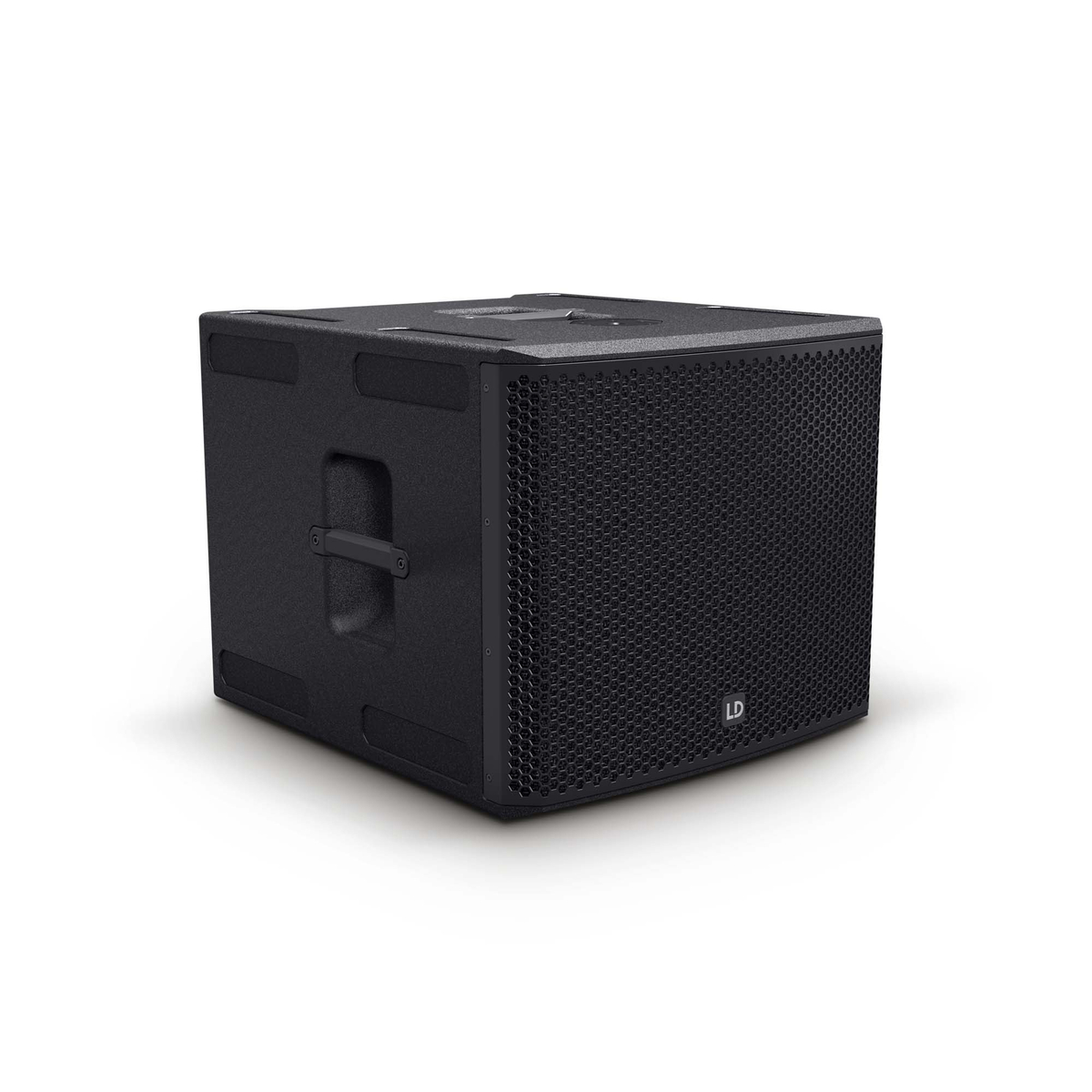

STINGER SUB 15 A G3

STINGER SUB 15 A G3

Active 15" bass-reflex PA subwoofer

Item no.: LDESUB15AG3

Guarantee: 24 months

EAN: 4049521206801

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:STINGER G3

Versions:

Item highlights:

  • Active 15” bass reflex PA subwoofer
  • High-efficiency 450 watts RMS digital power stage and 133 dB max. SPL
  • 15” custom design woofer for extended low end down to 40 Hz
  • DynX® DSP technology for distortion-free performance
  • 80, 100 and 120 Hz low pass presets
  • Cardioid subwoofer array presets
  • Horizontal or vertical placement
  • 18 mm birch ply cabinet with ultra rugged polyurea finish
  • Ergonomic handles and stacking recesses for easy transport and setup
  • Shock-resistant front grill provides maximum speaker protection
  • Insert for M20 threaded poles
  • Smart transport accessories

Specifications

Peak output power
900 W
RMS output power
450 W
Amp class
Class D
Max. SPL peak
133 dB
Low frequency limit
40 Hz
Number of inputs
2
Input connector types
XLR combo socket
Number of outputs
2
Output connector types
XLR 3-pole male
Protection features
Limiter, Short circuit, Overvoltage, Direct current
Colour
Black
Number of line inputs
2
Line-In connector type
Standard speaker connector 4-pole male & speakON®
Input impedance (balanced)
30 kΩ
Number of line outputs
2
Line outputs connector type
XLR 3-pole male
Sub output power per channel (RMS)
450 W
Sub output power per channel (Peak)
900 W
Size
15 "
Outer diameter
381 mm
Magnet
Ferrite
Voice coil
3 "
Operation voltage
100 V AC - 240 V AC / 50 - 60 Hz
Power supply type
Switched-mode power supply (SMPS)
Rated power
600 W
Mains connector
Mains socket indoor power in male & powerCON®
Design
Bass reflex
Number of handles
4
Flange
M20
Chassis material
Birch plywood
Material thickness
18 mm
Coating
Polyurea
Front grille material
Aluminium
Ambient temperature
0 - 40 °C
Maximum air humidity (non-condensing)
80 %
Width
567 mm
Height
477 mm
Depth
624 mm
Weight
31.9 kg
Included accessories
Mains cable

Description

STINGER SUB 15 A G3

Engineered for rock-solid reliability day in, day out this active subwoofer is a truly professional performer. With built-in presets for quick system integration and a variety of cardioid array configurations it is completely user-friendly. The STINGER® SUB 15 A G3 is powered by high efficiency Class D amplification with a mighty 450 watts RMS output. It drives a custom designed 15” woofer delivering a huge bottom end with terrific punch and excellent definition.

The STINGER® SUB 15 A G3 incorporates LD Systems’ proprietary DynX® DSP technology to ensure top-level performance and pristine, distortion-free bass reproduction at all times. Designed to be a real workhorse throughout, the well-braced bass reflex enclosure is constructed for horizontal and vertical orientation. It is made of rigid 18 mm birch ply and coated with ultra tough polyurea for extraordinary strength and durability. Sporting a steel front grille, M20 threaded pole insert, stacking recesses and ergonomic handles the STINGER® 15 A G3 is an attractively priced choice for truly professional sound reinforcement. A large selection of accessories facilitate live and installed applications.
