Item no.: CLSB6TRDM
Guarantee: 24 months
EAN: 4049521310379
Sliding scale: 1
Unit: Piece
Packaging unit: 10
Series:CL SPLITTER
Versions:
Item highlights:
- Professional 6-output DMX/RDM splitter/booster
- 6 optically and electronically isolated 3 and 5-pin XLR outputs
- Compact housing
- Original Neutrik® connectors for maximum reliability
- 3 x M10 threaded inserts for a variety of truss mounting options
- Power and DMX status indicators on front and rear panel
- Optional 2 U 19" rackmount frames available for one or two SB 6T RDM
Specifications
Description
SB 6 T RDM

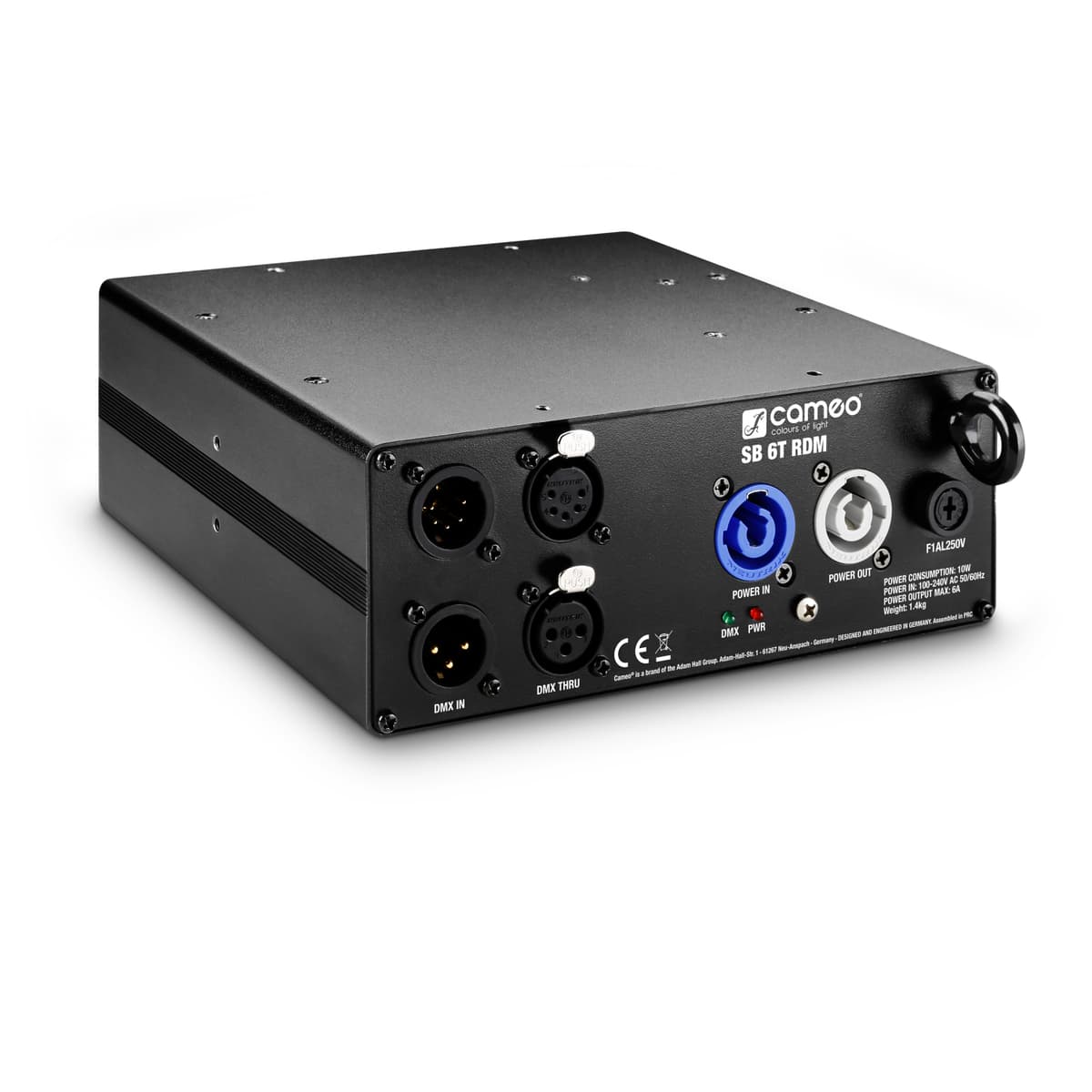

Designed for professional applications and supporting bi-directional communication, the Cameo SB 6T RDM is a 6-output DMX/RDM splitter with two inputs and two parallel thru outputs. It sends the incoming DMX/RDM signal to six separate output ports that are electronically and optically isolated. Each output channel has its own driver to boost the DMX/RDM signal to its original level. All inputs and outputs are fitted with both 3-pin and 5-pin Neutrik® connectors for maximum flexibility and reliability. Front and rear panel LEDs indicate the power and DMX status, and three M10 female threaded inserts facilitate truss mounting. The Cameo SB 6T RDM comes with a powerCON power cord.
