Item no.: LDRM102
Guarantee: 24 months
EAN: 4049521042584
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:ROAD
Versions:
Item highlights:

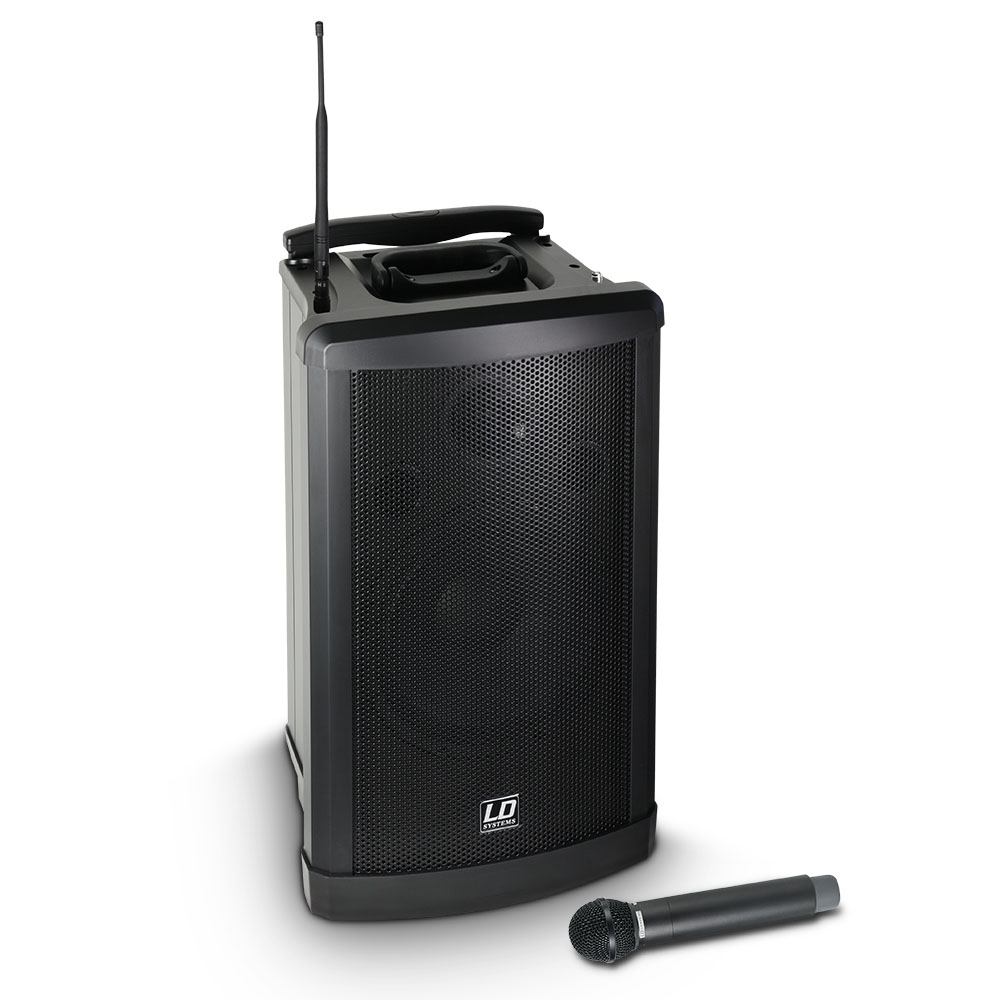

The LD Systems Roadman 102 is a mobile and compact sound system
The Roadman 102 is a portable and mobile PA solution with integrated battery. This system is ideal for solo entertainers, churches, schools, business conferences and presentations where versatility is required. The Roadman comes with a CD/MP3/USB/SD player as well as a wireless microphone unit and a handheld microphone. A second wireless microphone unit can also be integrated as an option.
Specifications
Product type
Battery-powered PA speaker
Version
Set with Handheld Transmitter
Low/mid Woofer dimensions
10 "
Woofer dimensions (mm)
254 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
HF driver dimensions
1 "
HF driver dimention (mm)
25.4 mm
HF driver magnet
Ferrite
HF driver brand
Custom-made
Amplifier
Class D
RMS
80 W
Peak power
320 W
Frequency response
70 - 16.000
SPL (1W/1m)
95 dB
Max. SPL
115 dB
Protection circuits
Short circuit
Controls
Audio-Link Follower Volume, Audio-Link Set ( Main / Follower), Bass, Line Gain, Main, Power, Treble, Speech / music switch (Mic / Line 1), Speech / music switch (Mic / Line 2), Value Down, Voice priority on / off, Volume Mic 1, Volume Mic 2
Indicators
Charge/battery status, Power
Supported media
Audio-CD, CD-R, CD-R/W, SD Card, USB stick
Supported formats
Audio-CD, MP3-CD, MP3 file, WMA-CD, WMA file
Media player controls
CD ejector, Mode (CD / SD / USB), mute, Next Track, Folder +, Folder -, Play / Pause, Power / Volume, Program, Repeat, Shuffle, Stop, Previous Track
Media player display elements
Lighted multifunctional LC display
Line inputs
3
Line input connectors
2 x RCA, Audio-link input XLR, female
Mic inputs
2
Mic inputs
6.3 mm jack, XLR
Line outputs
3
Line output connectors
2 x RCA, Audio-link output XLR, male
Loudspeaker outputs
Speaker Out Switched, Speaker Out Unswitched
Speaker output connections
6.3 mm jack
Transmission frequency range
863 - 865 MHz
Power supply
transformer
Operating voltage
200 V AC - 250 V AC, 24 V DC - 32 V DC (5A)
Rechargeable batteries
2 x 12 V / 4.5 AH
Cabinet material
Aluminium, Plastic
Cabinet construction
Bass Reflex
Width
355 mm
Height
610 mm
Depth
315 mm
Weight
19 kg
Other features
Audio-link function, Stand mount 36 mm, transport handle, Transport casters, Transport bag available optionally, Trolley handle, additional radio receiver (LDRM102R) available optionally
