ROADBUDDY 10 BPH 2

ROADBUDDY 10 BPH 2

Battery-Powered Bluetooth Speaker with Mixer, 2 Bodypack and 2 Headsets

ROADBUDDY 10 BPH 2

Item no.: LDRBUD10BPH2

Guarantee: 24 months

EAN: 4049521267413

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:ROAD

Versions:

Item highlights:

  • Battery powered speaker solution
  • Integrated radio receiver 863 - 865 MHz for license-free operation
  • Bluetooth player with USB port and SD card slot
  • Class D power amplifier with 480 watts of peak power
  • 2 combo sockets for microphone or line inputs
  • 3.5 mm Aux input
  • Master section with 2-band EQ
  • Built-in wheels, pull-out handle and fixing for 35 mm tripod mount
  • 2 Wireless microphones and IR-remote control included

Specifications

Product type
Battery-powered PA speaker
Low/mid Woofer dimensions
10 "
Woofer dimensions (mm)
254 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
HF driver dimensions
1 "
HF driver dimention (mm)
25.4 mm
HF driver magnet
Ferrite
HF driver brand
Custom-made
Amplifier
Class D
RMS
120 W
Peak power
480 W
Frequency response
55 - 18000
SPL (1W/1m)
96 dB
Max. SPL
115 dB
Protection circuits
Short circuit, overload protection, over-current
Controls
AUX / MP3 switch, CD / Tape IN Level, Echo, Total volume, high, low, Mic 1 Level, Mic 2 Level
Indicators
Charge/battery status, Power
Supported media
SD Card, USB stick
Supported formats
MP3 file, WAV-CD, WMA file
Media player controls
equalizer, Mode (Menu / Bluetooth /SD / USB), Next Track, Play / Pause, Repeat, Stop, Previous Track
Media player display elements
Lighted multifunctional LC display
Line inputs
1
Line input connectors
2 x RCA, 2 x XLR, 3.5 mm jack, 6.3 mm jack
Mic inputs
2
Mic inputs
2 x XLR, 6.3 mm jack
Transmission frequency range
863 - 865 MHz
Modulation Type
FM
Channels
16
Frequency Response Wireless Unit
50 - 17000 Hz
Controllers Wireless Unit
ASC, Mute Level (Squelch), Power / Volume, Value Down, Value Up
Indicators Wireless Unit
AF (LED), LED Display, RF (LED)
Connections Wireless Unit
nTNC for receiver antenna
RF Transmitter Power Output
10 mW
Bodypack weight
0.08 kg
Bodypack material
ABS plastic
Power supply
Switching power supply
Operating voltage
100 V - 120 V / 60 Hz, 220 V - 240 V AC / 50 Hz
Rechargeable batteries
12 V / 5 Ah
Cabinet material
Polypropylene
Cabinet construction
Bass Reflex
Width
415 mm
Height
525 mm
Depth
328 mm
Weight
16,5 kg
Other features
extendable handle, IR Remote for Media Player, Stand mount 36 mm, transport handle, Transport casters

Description

ROADBUDDY 10 BPH 2

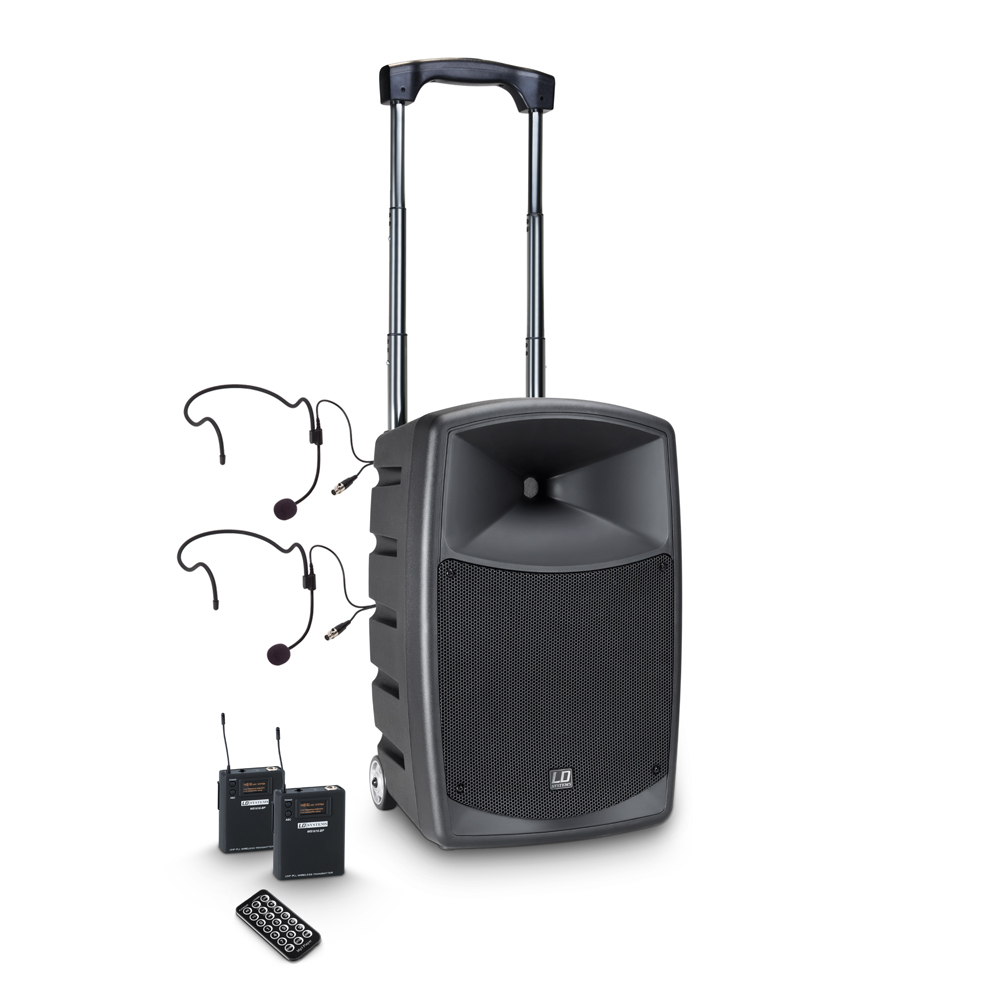

The LD Systems Roadbuddy 10 is an elegant solution for voice and music transmission on the go. The 2-way speaker with a 10" custom woofer and a 1" compression driver is operated with a rechargeable battery for up to 8 hours and is powered by a class D power amplifier with a highly efficient switching power supply and 480 watts of peak power.

The Roadbuddy relies fully on wireless transmission: it has two UHF radio receiver who operates in the license-free 863 - 865 MHz range. The on-board Bluetooth player with backlit multifunction display ,equalizer, USB port and SD card slot supports the mp3, wma and wav formats. Two handheld microphone with 10 mW output power(LDRBUD10HHD2), two headset microphones with belt pack (LDRBUD10BPH2) or as an alternative a handheld microphone and a headset microphone with belt pack (LDRBUD10HBH2) and an IR-remote control for the player are included.

For wired devices, the Roadbuddy has two channels with combo jacks and individual volume controllers that are switchable for microphone and line level, a stereo input via RCA (Cinch) sockets (mono summed) and a 3.5 mm Aux input. Treble, Bass, Echo and Master volume controllers complete the control panel.

The LD Systems Roadbuddy is easily transportable thanks to built-in castor wheels and a pull-out handle. On the top, there is a handy storage compartment for up to two hand-held transmitter microphones. The plastic housing of this lightweight device has been designed to accommodate a 35 mm tripod mount.
