Item no.: LDRB65B5
Guarantee: 24 months
EAN: 4049521205057
Sliding scale: 1
Unit: Piece
Packaging unit: 2
Series:ROAD
Versions:
Item highlights:

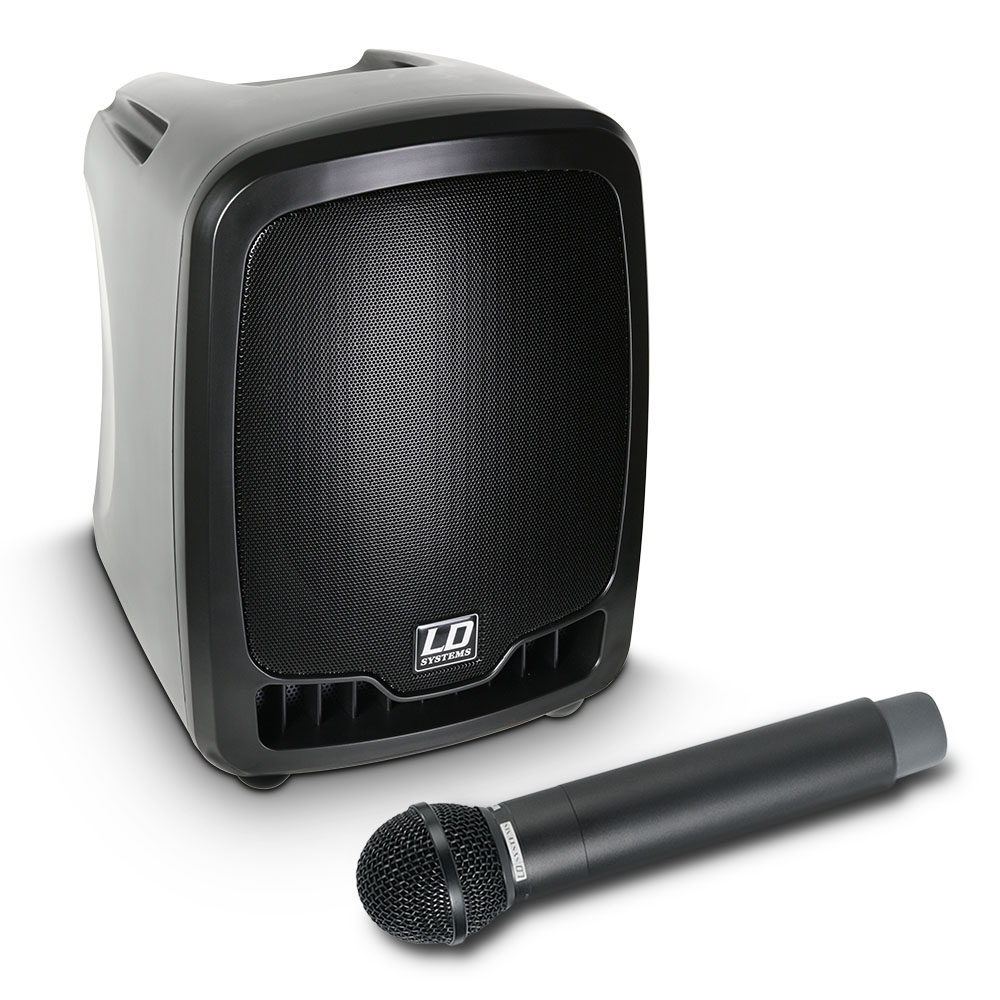

The compact, flexible sound system for small events, conferences, multimedia applications, podium discussions, schools, churches, etc.
The ultra-compact battery-powered combo amplifier, measuring 30 cm x 22 cm and weighting only 5 kg, provides an impressive sound pressure level of 110 dB max. Despite its small format, this mobile all-in-one speaker box provides great audibility and is equipped with unique features.
Specifications
Product type
Battery-powered PA speaker
Type
active
Version
Set with Handheld Transmitter
Low/mid Woofer dimensions
6.5 "
Woofer dimensions (mm)
165.1 mm
Woofer type
Broadband speaker
Woofer magnet
Ferrite
Woofer brand
Custom-made
Amplifier
Class D
RMS
25 W
Peak power
100 W
Frequency response
80 - 15000
SPL (1W/1m)
93 dB
Max. SPL
110 dB
Protection circuits
Short circuit
Controls
Bass, Line Gain, Main, Mic Gain, Power, Treble, Voice priority on / off
Indicators
Charge/battery status, Power
Supported media
Audio-CD, CD-R, CD-R/W, SD Card, USB stick
Supported formats
Audio-CD, MP3-CD, MP3 file, WMA-CD, WMA file
Media player controls
CD ejector, Mode (CD / SD / USB), mute, Next Track, Folder +, Folder -, Play / Pause, Power / Volume, Program, Repeat, Shuffle, Stop, Previous Track
Media player display elements
Lighted multifunctional LC display
Line inputs
2
Line input connectors
RCA
Mic inputs
1
Mic inputs
6.3 mm jack
Line outputs
2
Line output connectors
RCA
Loudspeaker outputs
1
Speaker output connections
6.3 mm jack
Transmission frequency range
584 - 607 MHz
Power supply
External 100- 240 V AC switch mode power supply
Operating voltage
15 - 18 V DC, 3 A
Rechargeable batteries
12 V / 2.6 AH
Cabinet material
Polypropylene
Cabinet construction
Bass Reflex
Width
200 mm
Height
300 mm
Depth
230 mm
Weight
6 kg
Other features
16 mm stand mount, transport handle, Transport bag available optionally
