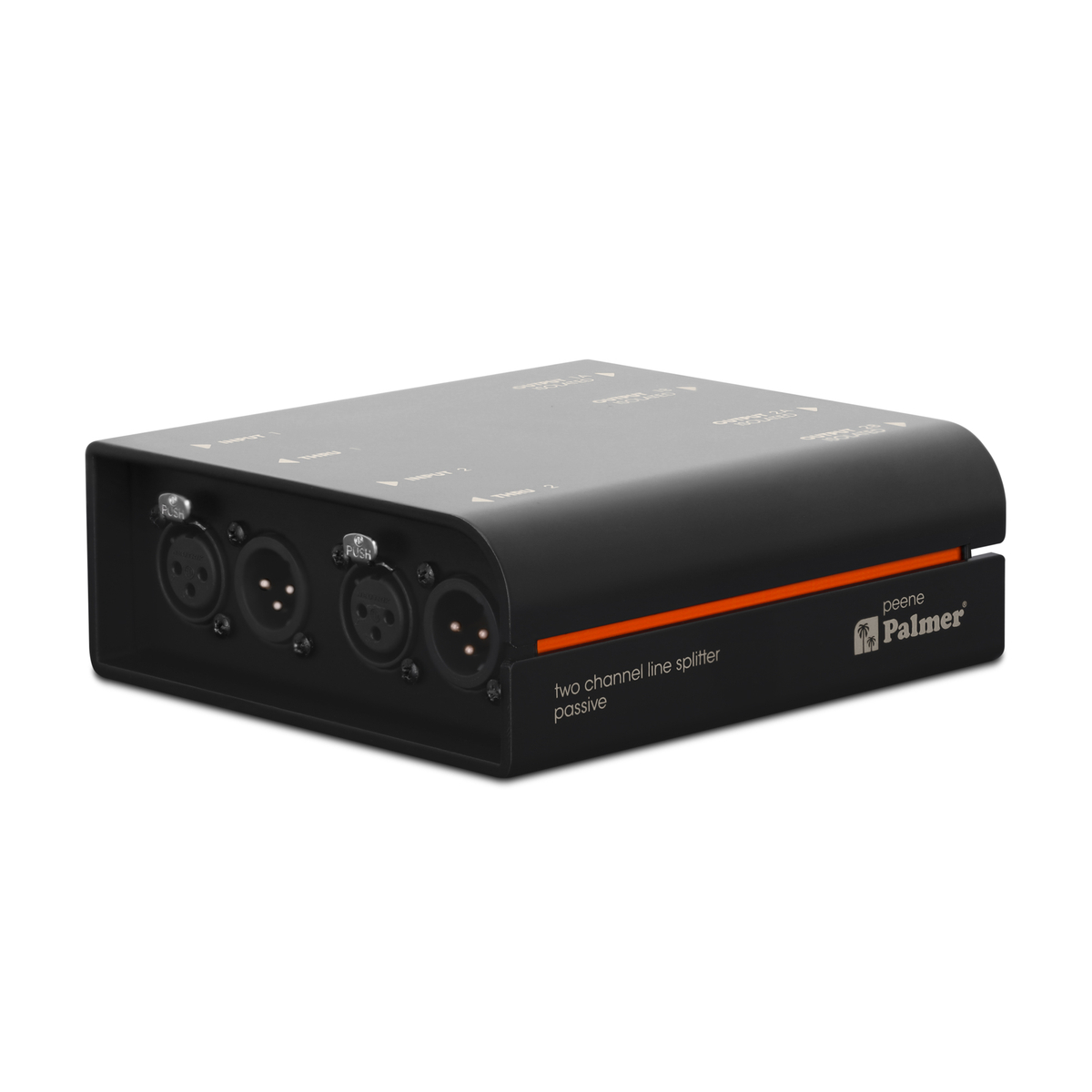

RIVER peene

Passive 2-Channel Line Splitter

Item no.: PPEENE

Guarantee: 60 months

EAN: 4049521705342

Sliding scale: 1

Unit: Piece

Packaging unit: 14

Series:River

Versions:

Questions about the item?

Find a dealer

Item highlights:

Distributes two input signals to two outputs each + link outs
For line signals
Galvanic isolation of outputs by transformers
Switchable ground lift to isolate ground loop hum
Neutral sound
High headroom (+20 dBu max. input level)
Passive construction, no power supply required
Extremely fail-safe
Solid casing made of aluminium and steel
Incl. rewritable tour label for attachment onto the back of the peene
Engineered in Germany

Specifications

Product type

Line Splitter

Channels

Type

passive

Transformer isolated

Yes

Number of inputs

input type

balanced

Input connectors

XLR

Number of outputs

Output type

balanced

Output connectors

XLR

THRU outputs per channel

Ground lift switch

Yes

Housing

Aluminium continuous casting

Dimension (H/W/D)

50 x 140 x 128 mm

Weight

0,805 kg

Ambient temperature during operation

-20 - 70 °C

Relative Humidity

< 80 %, not condensing

Accessories (included)

Inscription label (tour label), rubber feet

Max. input level (< 1% THD, 20 Hz)

+ 20 dBu

Max. input level (< 1% THD, 1 kHz)

+ 32 dBu

Frequency response (±1 dB, relative 1 kHz)

10 Hz - 30 kHz

Input impedance (1 kHz)

6.8 kOhm

Output impedance (1 kHz)

500 Ohm(s)

THD (30 Hz, +4 dBu, unity, unweighted)

< 1 %

THD (1 kHz, +4 dBu, unity, unweighted)

< 0,02 %

IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu)

< 0,01 %

Transformer ratio

1:1:1

Description

RIVER peene

Do you want to send a line signal - stereo or dual mono - to multiple devices, without interference such as hum? Then the Palmer peene line splitter box is the right tool for you. It works on a purely passive basis with large isolation transformers, which can even handle high-level signals without distortion. So, for instance, you can send the stereo output signal from the mixer to several power amps, without any ground loops. The Palmer peene also includes a ground-lift switch. In addition to the two transformer-isolated outputs, the peene also directs the input signal on directly via a link out.

The Palmer peene is everything you need to distribute line signals to several devices and is a reliable audio tool with ultra-simple handling and professional sound characteristics.
