Item no.: RRAC3FX011
Guarantee: 12 months
EAN: 7613187023262
Sliding scale: 1
Unit: Piece
Packaging unit: 50
Versions:
Item highlights:
- Outdoor compliant power socket D-type size
- IP65 protection, weather resistant, airtight
- Compliant to Neutrik powerCON® TRUE1 plugs
- With excellent flammability class by using V0 materials
- Compliant to the IEC/EN 60320-1 VDE certification
- Plug can be connected and disconnected under load
Specifications
Plug type
Mains plug device outdoor female & TRUE1®
Connection type
Soldering contacts
Cabinet material
Polyamide
Protection class
IP65
Inflammability (UL 94)
V-0
Length
43.2 mm
Width
29 mm
Height
31 mm
Weight
26 g
Description

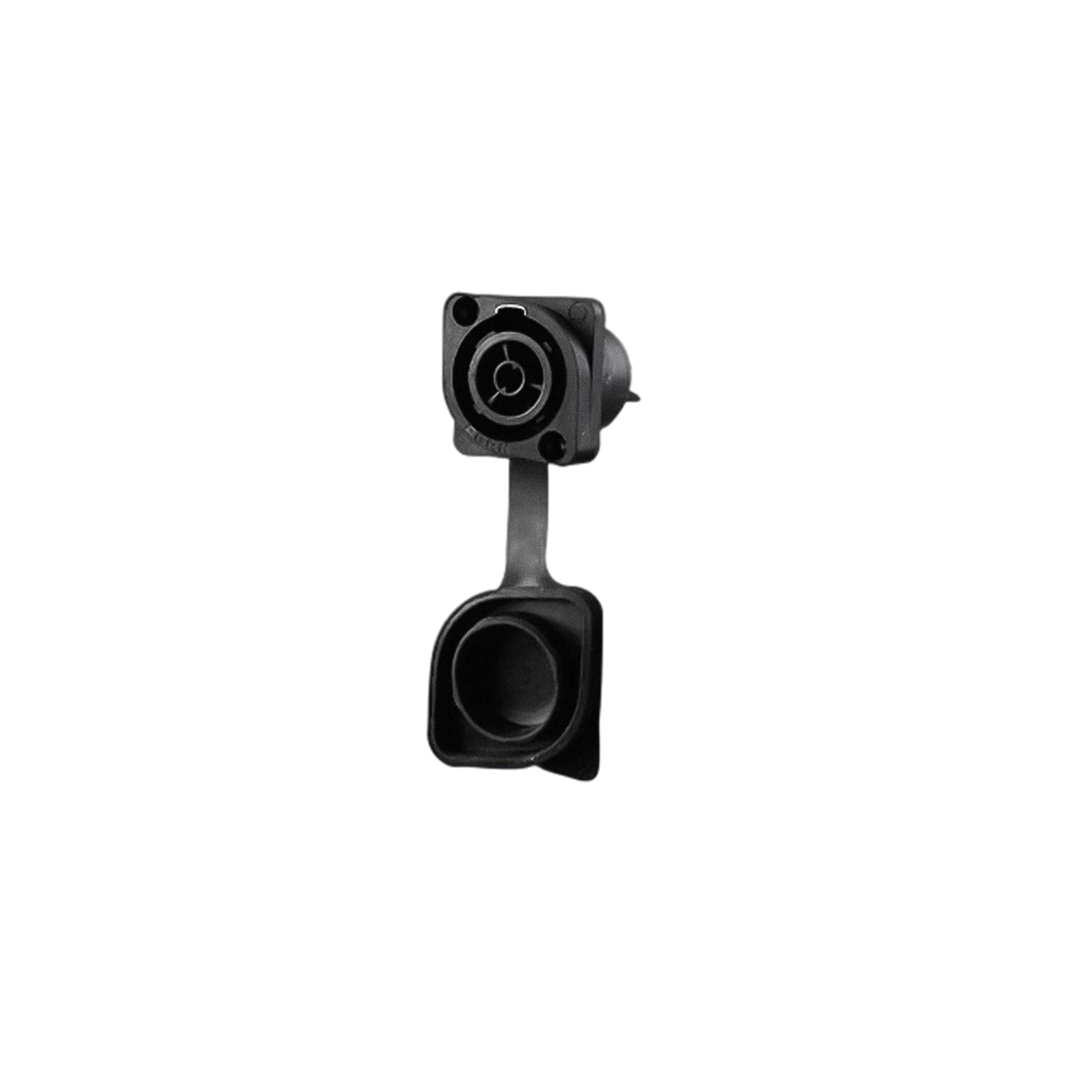

REAN RRAC3F-X-011
Lockable power Female chassis connector, with excellent flammability class by using V0 materials.
Industrial standard D-shape installation dimension
Designed for outdoor applications, IP65 protection and Airtight proof
The power X series are connectors with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
