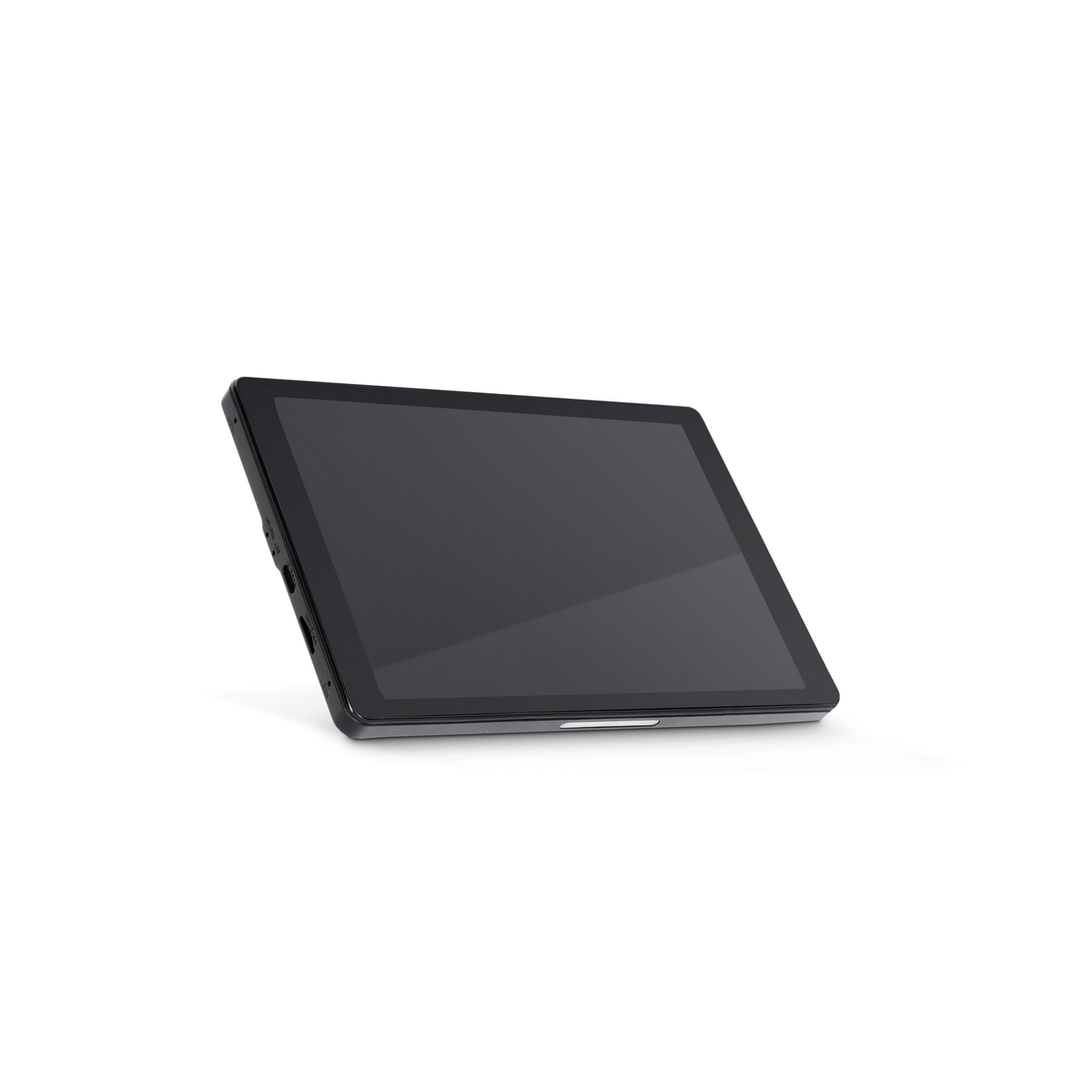

QTP 8

QTP 8

QUESTRA Touchscreen Display 8-inch with Android 11 and PoE

Item no.: LDQTP8

Guarantee: 60 months

EAN: 4049521765964

Sliding scale: 1

Unit: Piece

Packaging unit: 20

Versions:

Item highlights:

  • 8-inch touchscreen Panel
  • Android 11 OS
  • Control of custom Questra User Panels
  • Designd for LD Integrated Systems solutions
  • Universal Wall mounting Options
  • PoE powered (Power over Ethernet)
  • Optional: Power Supply

Specifications

Product type
Installation Accessories
Type
8" QUESTRA Touchpanel
Processor
RK3566 - Quad-core up to 1.8 GHz
RAM
2 GB
Internal memory
16 GB
Controls
8 " Touch display, Restart, Set
Display resolution
1280 x 800 pixels
Display brightness
300 nits
Touch panel type
5-points capacitive IPS Touch Panel
Mounting position
Landscape or portrait format (landscape format recommended)
Operating system
Android 11
Connectors
Ethernet RJ45, Power in, RS485 (currently without function), USB-C
Card reader
TF-Card / MicroSD
Connection
10M / 100M Ethernet, 2.4 GHz WIFI, Bluetooth 4.0
Power supply
External power supply unit 12 V DC 2 A (optionally available), IEEE 802.3at compliant, PoE ( Power over Ethernet )
Mounting options
EU - flush-mounted box, 86-Type Electrical Box, US - 2 - gang-electrical Box
Dimensions (W x H x D)
200 mm x 124.6 mm x 37.7 mm
Operating temperature
0° - 40°C
Relative Humidity
< 80 % ( non-condensing )
Accessories (included)
Mounting plate plus locking screw, Mounting screws
Optional accessories
External power supply 12 V DC 2 A
Weight
0,34 kg

Description

QTP 8

The Questra® Touchscreen Panel 8" is powered by Andriod 11 OS and designed to control LD integrated systems solutions and other professional audio and video applications. Install the QUESTRA® Panel app to control your custom panels, designed with the QUESTRA® software. With this display, you can conveniently and intuitively control your audio settings, lighting and other building functions.

The LD Systems QTP 8 features universal wall mounting options as well as PoE (Power over Ethernet) making installation a breeze. If you require an alternative power source, an optional power supply is also available.

This display in combination with the QUESTRA® Panel app is the perfect choice for professional AV integrators seeking a user-friendly solution for their clients.
