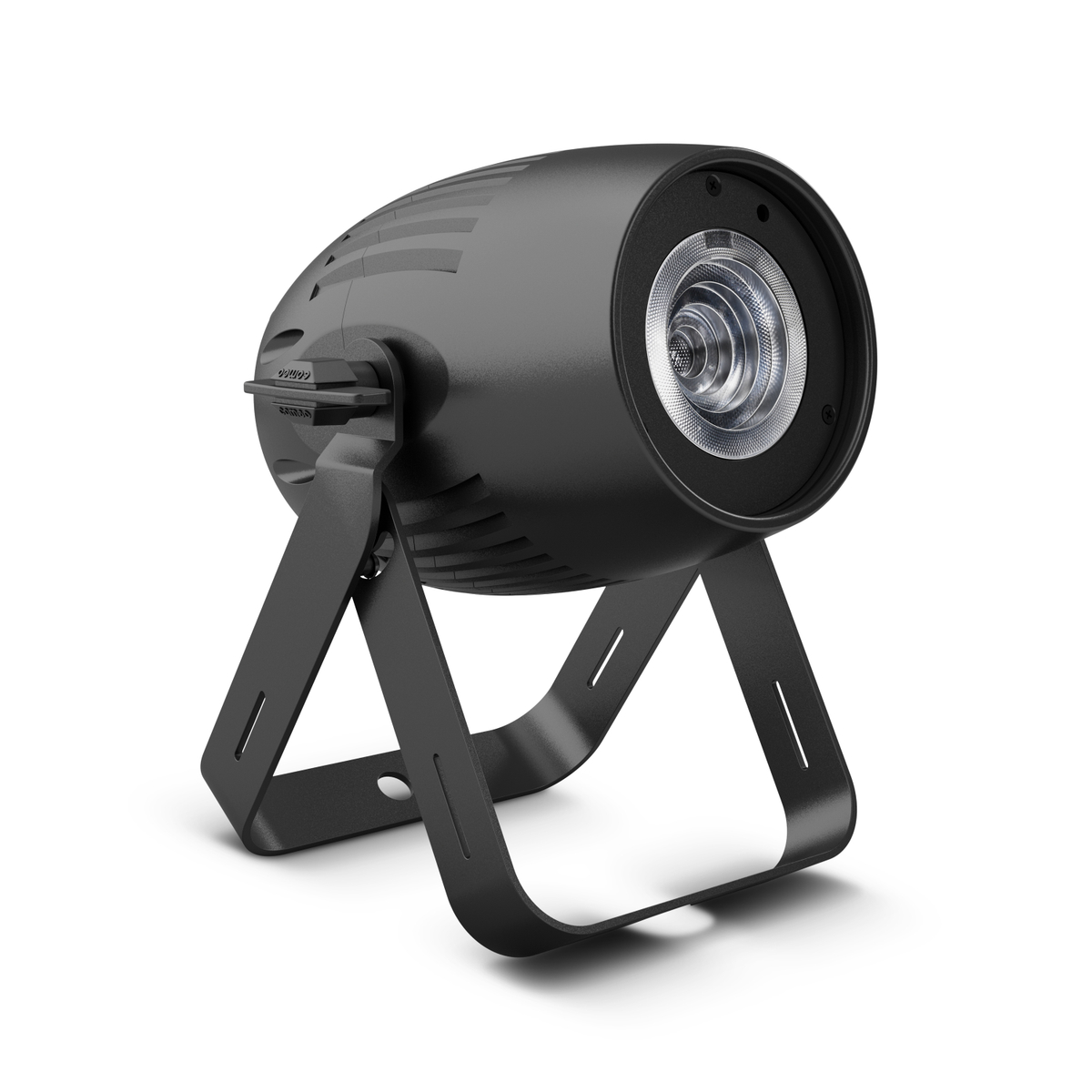

Q-SPOT 40 TW

Q-SPOT 40 TW

Compact Spot with 40 W Tunable White LED Finished in Black

Item no.: CLQS40TW

Guarantee: 24 months

EAN: 4049521304880

Sliding scale: 1

Unit: Piece

Packaging unit: 8

Series:Q-Spot

Versions:

Item highlights:

  • Compact LED spot light with single 40W tunable white LED
  • White temperature adjustable between 3,200 K and 6,800 K
  • Custom lens with 4.5° beam spread for uniform light intensity
  • Includes 2 replacement lenses for 10° or 15° beam angles
  • RDM enabled
  • 16-bit technology for ultra smooth dimming
  • Flicker free, ideal for motion picture and TV applications
  • 4 high resolution dimming curves with adjustable response
  • DMX control, sound activation plus master, slave and standalone capability
  • 4-button OLED display for easy configuration
  • Convection cooling for noiseless performance
  • Infrared remote control available as accessory

Features

Infrared remote control
The device is fitted with an infrared sensor and can be controlled wirelessly using the IR remote control unit included.

Specifications

Product type
LED PAR Lighting
Type
Indoor
Colour spectrum
Warm White/Cold White
Number of LEDs
1
Color temperature
3200 - 6800 K
Average LED lifetime
50,000 h
LED type
40 W
Refresh rate
3600 Hz
Dispersion
10 °, 15 °, 4.5 °
DMX input
XLR 3-pin male
DMX output
XLR 3-pin female
DMX mode
1-channel, 2-channel, 3-channel 1, 3-channel 2, 8-channel
DMX Functions
Dimmer Curve, Colour temperature correction, Cold-white dimmer, master dimmer, Strobe, Warm-white dimmer
Strobe flash rate
1–20 Hz
Standalone modes
Master / Slave mode, sound control
Controls
Enter, Mode, Value Down, Value Up
Indicators
OLED Display
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
55 W
Device connections quantity (110 V)
5
Device connections quantity (240 V)
5
Power supply connector
Blue Power Twist, male
Power supply connection
Grey Power Twist, female
Housing material
Metal
Cabinet colour
Black
Protection class IP
IP20
Cooling
Convection
Illuminance
95400 lx @ 1m
Luminous flux
1435 lm
Width
220 mm
Height
230 mm
Length
220 mm
Weight
2,75 kg

Description

Q-SPOT 40 TW

This compact Cameo Q-Spot is equipped with a powerful 40 watt tunable white LED that has a 50,000 hour life expectancy and lets you vary the white temperature from 3,200 to 6,800 K. This allows perfect adjustment from warm and soft to cool and ultra bright to cover all scenarios that require white light. The RDM enabled PAR light sports a custom lens for a tightly focussed 4.5° beam spread and comes with two replacement lenses offering versatility with a choice of 10° and 15° angles. Using 16- bit technology, the fixture provides ultra smooth dimming with selectable curves and response. Highly efficient convection cooling ensures silent operation, and the 3,600 Hz refresh rate and flicker-free performance make it ideal for motion picture and TV applications. .

The tunable white Q-Spot 40 features 5 modes of DMX control, sound activation and master, slave and standalone capability. A convenient infrared remote control unit is available as accessory. The spotlight features a high-speed strobe function and a 4-button OLED display for easy configuration. The rugged all-metal housing provides 3-pin DMX inputs and outputs plus blue and grey Power Twist connectors for trouble-free daisy-chaining and power linking. The Q-Spot 40 TW is also available with a white housing (item no. CLQS40TWWH).
