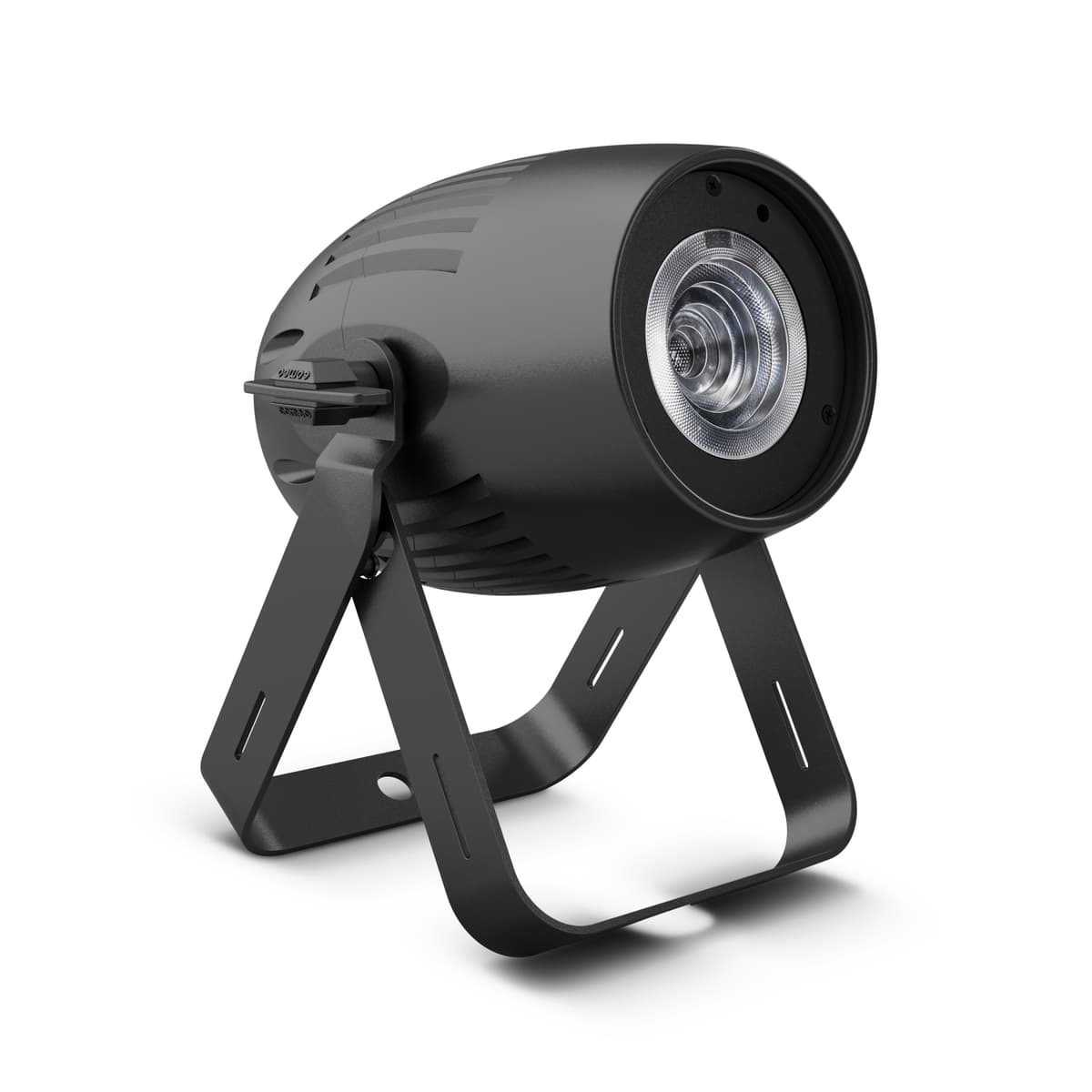

Q-SPOT 40 TW

Q-SPOT 40 TW

Compact Spot with 40 W Tunable White LED Finished in Black

Item no.: CLQS40TW

Guarantee: 24 months

EAN: 4049521304880

Sliding scale: 1

Unit: Piece

Packaging unit: 8

Series:Q-Spot

Versions:

Item highlights:

  • Compact LED spot light with single 40W tunable white LED
  • White temperature adjustable between 3,200 K and 6,800 K
  • Custom lens with 4.5° beam spread for uniform light intensity
  • Includes 2 replacement lenses for 10° or 15° beam angles
  • RDM enabled
  • 16-bit technology for ultra smooth dimming
  • Flicker free, ideal for motion picture and TV applications
  • 4 high resolution dimming curves with adjustable response
  • DMX control, sound activation plus master, slave and standalone capability
  • 4-button OLED display for easy configuration
  • Convection cooling for noiseless performance
  • Infrared remote control available as accessory

Features

Infrared remote control
The device is fitted with an infrared sensor and can be controlled wirelessly using the IR remote control unit included.

Specifications

LED data
40 W Tunable white LED
Luminous flux
1,435 lm
Illuminance
95,400 lx (1 m / 0.0 )
LED PWM frequency
3,600 Hz
Correlated colour temperature (CCT)
3,200 - 6,800 K
Strobe
1 - 20 Hz
Controller protocols
DMX512, RDM
Number of DMX control modes
5
Stand alone operating modes
Sound controlled, Master/slave, Static
Data in connector
XLR 3-pole male
Data out connector
XLR 3-pole female
Operation voltage
100 V AC - 240 V AC / 50 - 60 Hz
Rated power
55 W
Mains fuse
T1A/250 V
Cabinet material
Metal
Colour
Black
Cooling system
Convection cooling
Protection class
IP20
Ambient temperature
0 - 40 °C
Width
220 mm
Height
230 mm
Depth
220 mm
Weight
2.75 kg

Description

Q-SPOT 40 TW

This compact Cameo Q-Spot is equipped with a powerful 40 watt tunable white LED that has a 50,000 hour life expectancy and lets you vary the white temperature from 3,200 to 6,800 K. This allows perfect adjustment from warm and soft to cool and ultra bright to cover all scenarios that require white light. The RDM enabled PAR light sports a custom lens for a tightly focussed 4.5° beam spread and comes with two replacement lenses offering versatility with a choice of 10° and 15° angles. Using 16- bit technology, the fixture provides ultra smooth dimming with selectable curves and response. Highly efficient convection cooling ensures silent operation, and the 3,600 Hz refresh rate and flicker-free performance make it ideal for motion picture and TV applications. .

The tunable white Q-Spot 40 features 5 modes of DMX control, sound activation and master, slave and standalone capability. A convenient infrared remote control unit is available as accessory. The spotlight features a high-speed strobe function and a 4-button OLED display for easy configuration. The rugged all-metal housing provides 3-pin DMX inputs and outputs plus blue and grey Power Twist connectors for trouble-free daisy-chaining and power linking. The Q-Spot 40 TW is also available with a white housing (item no. CLQS40TWWH).
