Item no.: AHPROPORT4TT
Guarantee: 24 months
EAN: 4049521237218
Sliding scale: 1
Unit: Piece
Packaging unit: 20
Series:AH Proports
Versions:
Item highlights:
- Mobile power distribution unit from our PRO PORT® Series
- With 5 x IP65 Out sockets (1 x for continuation)
- Power supply IP65 In socket (compatible with all TRUE1® plugs)
- Sturdy metal housing IP20
- With 2 x M10 mounting points (for e.g. Adam Hall Super Clamp)
Specifications
Input connector type
Mains plug device outdoor male & TRUE1®
Input protection class
IP65
Output connector type
Mains plug device outdoor female & TRUE1®
Output protection class
IP65
Mounting
M10
Material
Steel
Coating
Powder coated
Cable detachable
No
On/Off switch
No
Number of outputs
5
Colour
Black
Operation voltage
100 V AC - 230 V AC / 50 - 60 Hz
Max. Amperage
16 A
Conductor material
OFC (Oxygen-free copper)
Conductor cross-section
1,5 mm²
Protection class
IP20
Width
297 mm
Height
60 mm
Depth
78 mm
Weight
1 kg
Description

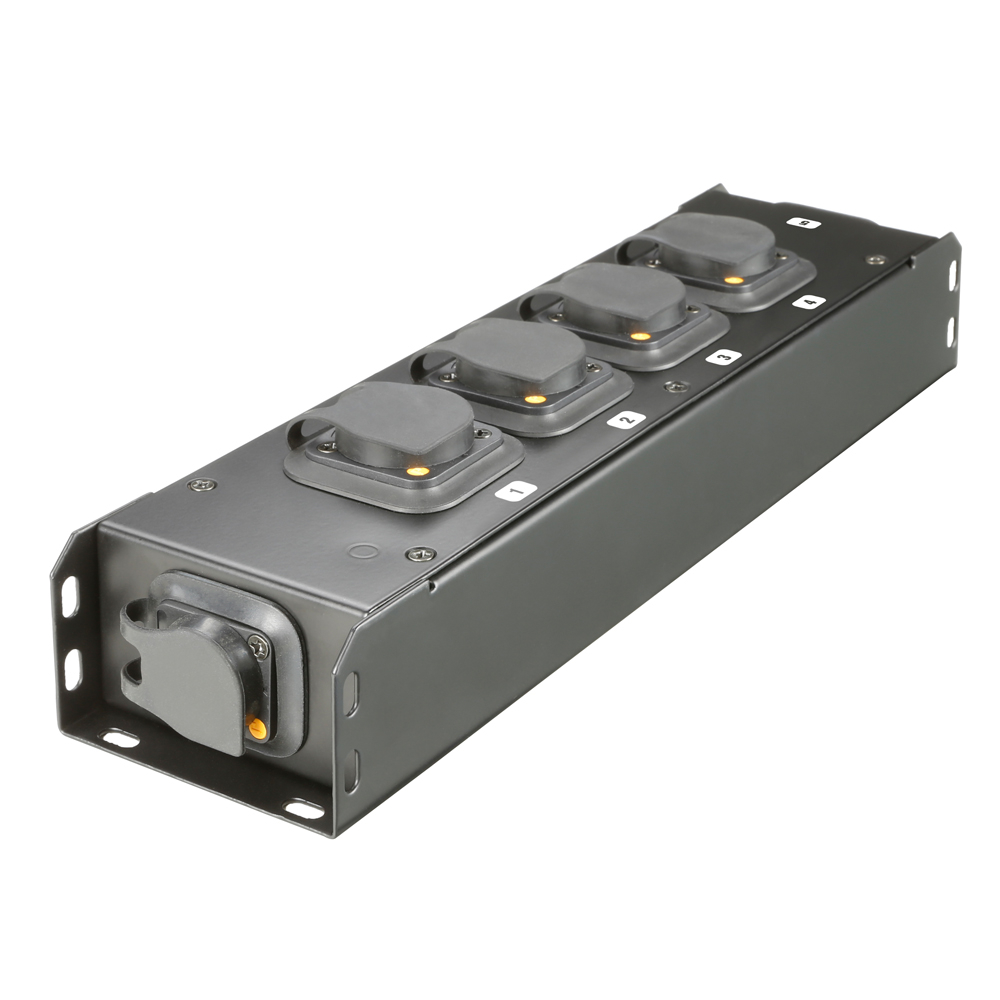

PRO PORT 4 TCON
The PROPORT 4TT is ideal for tidy and specific power distribution on stage, on trusses and in equipment rigs. The robust metal housing features a Power Twist TR1 power input socket and 5 Power Twist TR1 power outs (2 on top of the distributor). 2 x M10 threaded inserts for mounting and fixed installation
