Item no.: AHPROPORT4PP
Guarantee: 24 months
EAN: 4049521412592
Sliding scale: 1
Unit: Piece
Packaging unit: 20
Series:AH Proports
Versions:
Item highlights:
- Mobile power distribution unit from our PRO PORT® Series
- With 5 x PowerOut GREY sockets (1 x for power continuation)
- Power supply cable PowerIn BLU socket (compatible with all powerCON® plugs)
- Sturdy metal housing IP20
- With 2 x M10 mounting points (e.g. for Adam Hall Super Clamp)
Specifications
Input connector type
Mains socket indoor power in male & powerCON®
Input protection class
IP20
Output connector type
Mains socket indoor power out male & powerCON®
Output protection class
IP20
Mounting
M10
Material
Steel
Coating
Powder coated
Cable detachable
No
On/Off switch
No
Number of outputs
5
Colour
Black
Operation voltage
100 V AC - 230 V AC / 50 - 60 Hz
Max. Amperage
16 A
Conductor material
OFC (Oxygen-free copper)
Conductor cross-section
1,5 mm²
Protection class
IP20
Width
297 mm
Height
60 mm
Depth
78 mm
Weight
991 g
Description

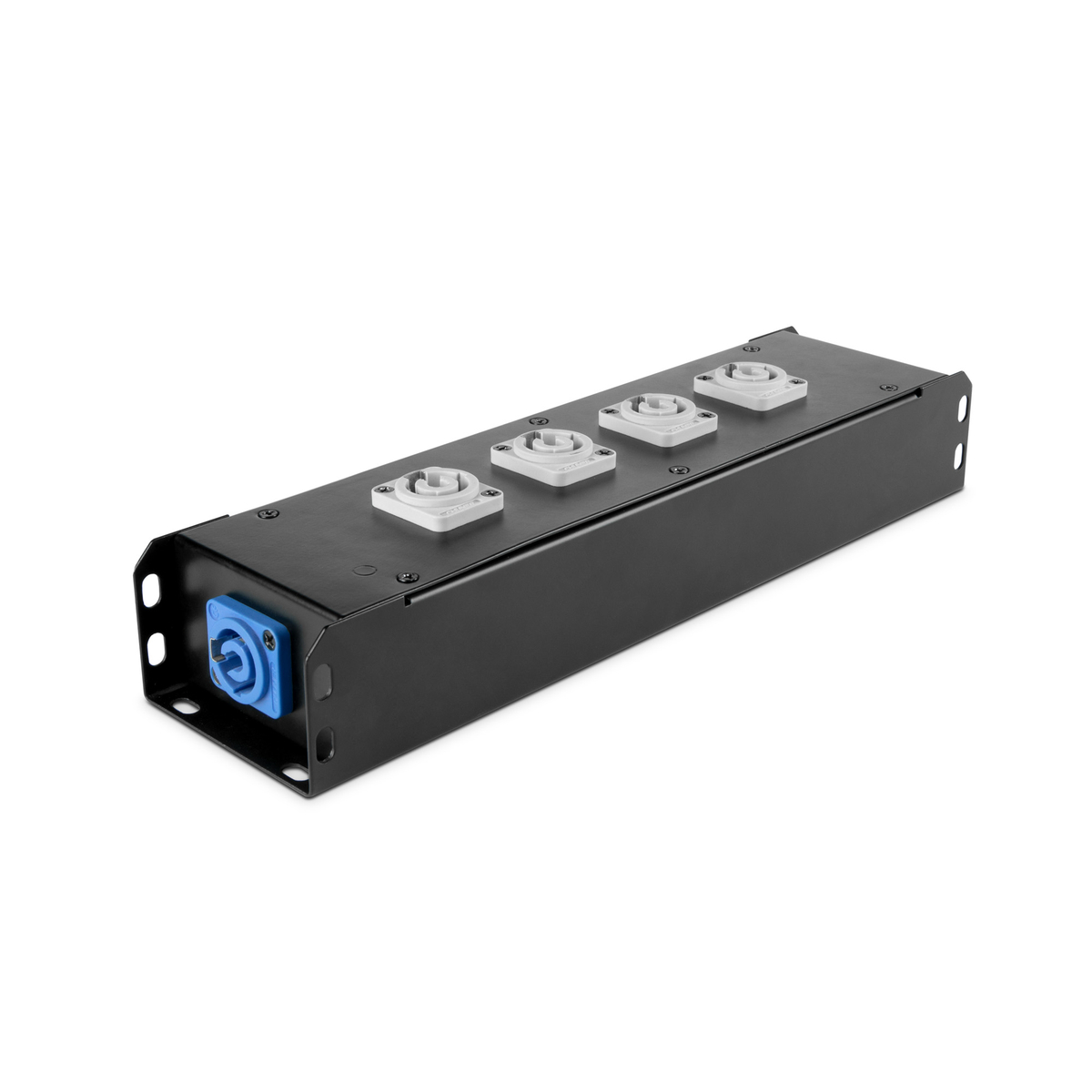

PRO PORT 4 PCON
The PRO PORT 4PP is ideal for tidy and targeted power distribution on stages, on trusses and in equipment rigs. The rugged metal housing features a Power Twist power input jack and 5 Power Twist output jacks, 4 of which are located on top of the distributor. Two M10 threaded inserts are used for suspension and fixed mounting.
