Item no.: AHPROPORT4
Guarantee: 24 months
EAN: 4049521198939
Sliding scale: 1
Unit: Piece
Packaging unit: 20
Series:AH Proports
Versions:
Item highlights:
- Mobile power distribution unit from our PRO PORT® Series
- With 4 x Schuko sockets IP54
- PowerIn BLU power supply & PowerOut GREY continuation (compatible with all powerCON® plugs)
- Sturdy metal housing IP20
- With 2 x M10 mounting points (e.g. for Adam Hall Super Clamp)
Specifications
Input connector type
Mains socket indoor power in male & powerCON®
Input protection class
IP20
Output connector type
Schuko socket female
Output protection class
IP54
Output 2nd connector type
Mains socket indoor power out male & powerCON®
Mounting
M10
Material
Steel
Coating
Powder coated
Cable detachable
No
On/Off switch
No
Number of outputs
5
Colour
Black
Operation voltage
100 V AC - 230 V AC / 50 - 60 Hz
Max. Amperage
16 A
Conductor material
OFC (Oxygen-free copper)
Conductor cross-section
1,5 mm²
Protection class
IP20
Width
318 mm
Height
64 mm
Depth
78 mm
Weight
1.059 kg
Description

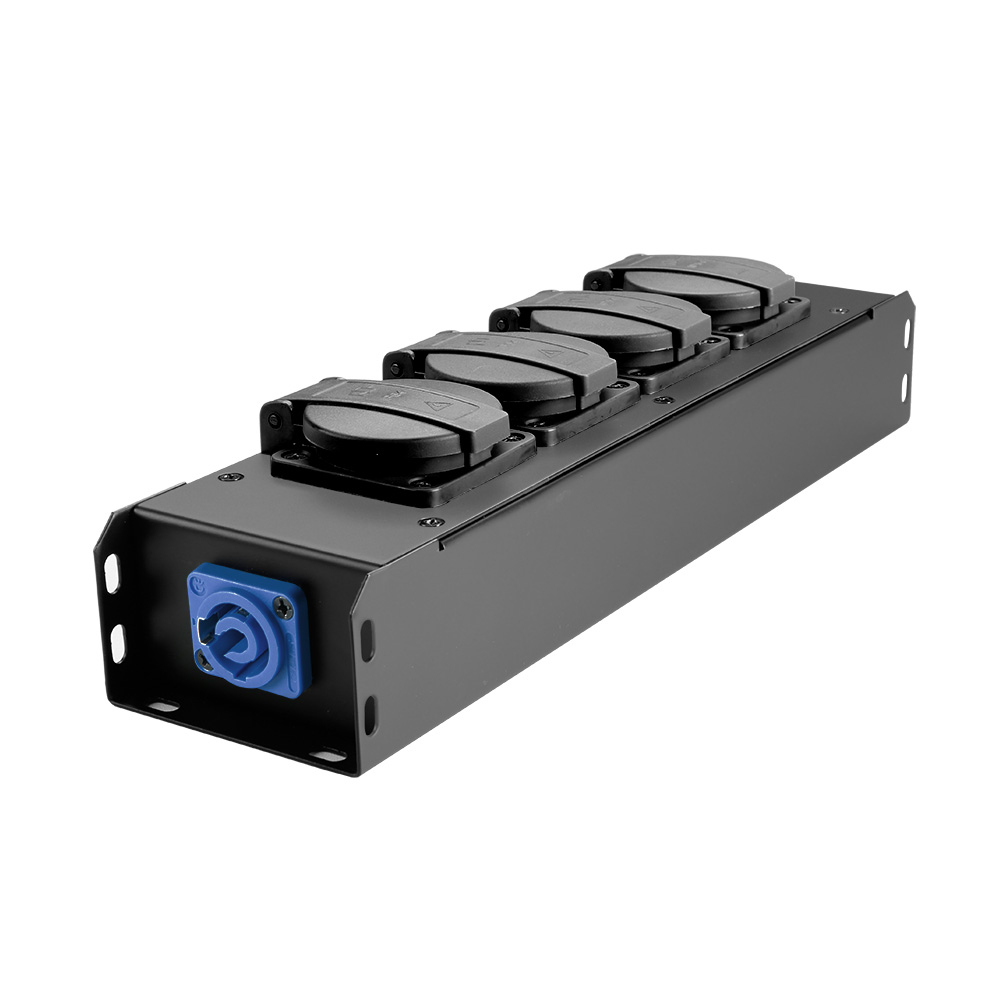

PRO PORT 4 P
The PROPORT 4 power strip is ideal for tidy and specific power distribution on stage, on trusses and in equipment rigs. Its robust metal housing features 4x IP54 protective contact socket outlets with hinged lids, each with a blue and white Power Twist I/O socket for power supply and transmission, as well as two M10 threaded inserts for mounting and fixed installation.
