Item no.: AHPROPORT4CEE
Guarantee: 24 months
EAN: 4049521237201
Sliding scale: 1
Unit: Piece
Packaging unit: 10
Series:AH Proports
Versions:
Item highlights:
- Mobile power strip from our PRO PORT® Series
- With 4 x Schuko sockets IP54
- 16A CEE power supply & IP65 Out power extension (compatible with all TRUE1® plugs)
- Sturdy metal housing IP20
- With 2 x M10 mounting points (e.g. for Adam Hall Super Clamp)
Specifications
Input connector type
CEE plug 16A male
Output connector type
Schuko socket female
Output protection class
IP54
Output 2nd connector type
Mains plug device outdoor female & TRUE1®
Mounting
M10
Material
Steel
Coating
Powder coated
Cable detachable
No
On/Off switch
No
Number of outputs
5
Colour
Black
Operation voltage
100 V AC - 230 V AC / 50 - 60 Hz
Max. Amperage
16 A
Conductor material
OFC (Oxygen-free copper)
Conductor cross-section
1,5 mm²
Protection class
IP20
Width
318 mm
Height
64 mm
Depth
78 mm
Weight
1.059 kg
Description

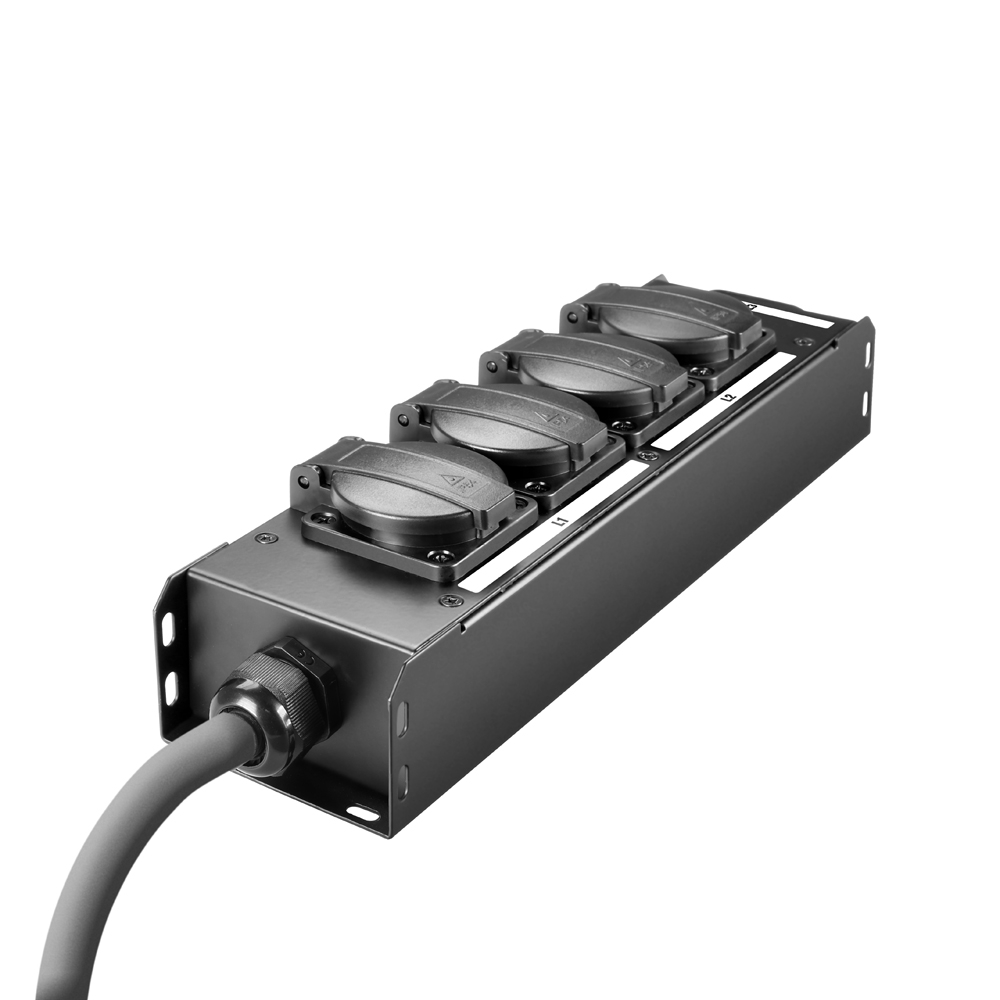

PRO PORT 4 CEE
The PROPORT 4CEE is the ideal power strip for tidy and specific power distribution on stage, on traverses and in equipment rigs. Its robust metal housing features 4 protective contact socket outlets with hinged lids, a black/yellow power output socket for power transmission, and two M10 threaded inserts for mounting and fixed installation. The 40 cm power cable with 16 A CEE plug is hard-wired to the housing.
