PRE 2

PRE 2

Two-channel microphone and line mixer

Item no.: LDPRE2

Guarantee: 60 months

EAN: 4049521907876

Sliding scale: 1

Unit: Piece

Packaging unit: 8

Series:TICA®

Item highlights:

  • 1× balanced stereo line input
  • 1× mic input with gain control and –20 dB pad switch
  • Stereo line output (switchable to mono)
  • Remote level control
  • Automatic music ducking for announcements

Specifications

Product type
Installation mixer preamplifier
Mic inputs
1
Line inputs
1 x stereo
Line outputs
1 x stereo
Cooling
Convection
Priority levels
2
Nominal input sensitivity
15 mVrms
Nominal input clipping
550 mVrms
Frequency response (-3 dB)
150 Hz - 20000 Hz
Gain
Mic: 18 to 48 dB
PAD
-20 dB switchable
Phantom power
+ 24V, 10mA switchable
VOX Threshold
Mic: 0%: Off, 25%: -40 dBu, 50%: -50 dBu, 100%: -63 dBu
Connector
3-pin terminal block (3.81 mm)
Nominal input sensitivity line
12 dBu ( Sine 1 kHz, Gain max )
Nominal input clipping line
14 dBu ( Sine 1 kHz, Gain max )
Frequency range (- 0.5 dB)
15 Hz - 30000 Hz
Gain line input
3 dB
Line Input Connectors
2 x 3-pin Terminal Block, pitch 3.81 mm
Line Output Connectors
3-pin terminal block (3.81 mm)
Max. output level
16 dBu
Connector (VCA)
3-pin Terminal block, pitch (3.5 mm)
Main Volume (VCA)
10 k (Linear Taper) External Potentiometer
Type
External SMPS
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power supply plugs
Type A - USA/Canada, Type C - EU, Type G - UK, Type I - Australia
Power Supply Secondary
24 V DC / 500 mA
Power consumption (max.)
6 W
Idle power consumption
5 W
Standby power consumption
< 1 W
Rack width
1/4 19"
Operating temperature ( non-condensing )
0°C - 40°C; < 85% humidity, non condensing
Accessories (included)
External power supply with interchangeable plugs, Mounting plates for surface mount applications
Optional accessories
Rack mounting hardware ( LDTICARK )
Weight
1,42 kg

Description

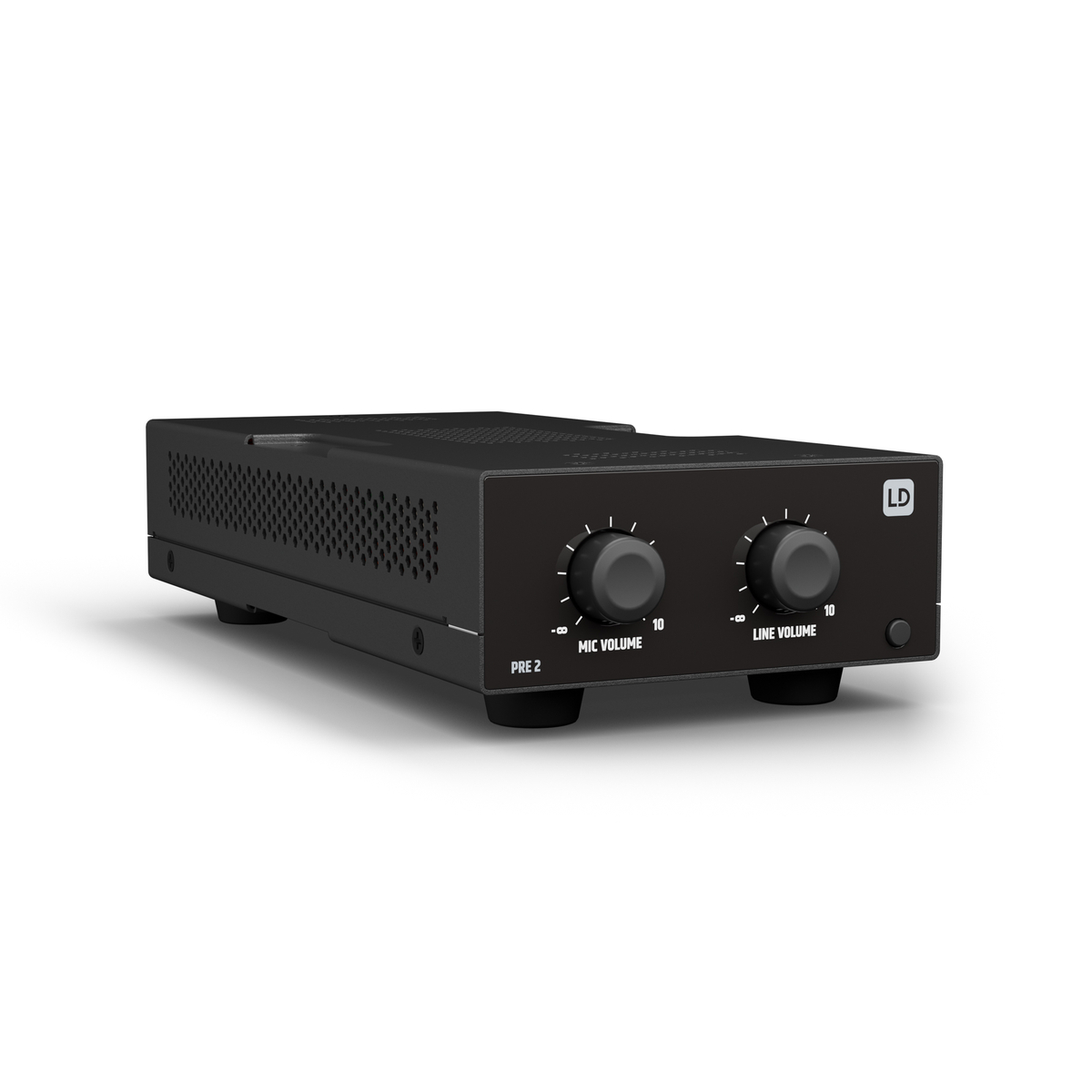

PRE 2

Part of the TICA® series, the PRE2 is a compact two-channel line and mic mixer. Ideal for smaller installations, it allows you to mix stereo audio from any media source with a microphone for announcements.

The PRE2 is incredibly easy to use with two simple volume control knobs, with signal presence and clip indicators.

The built-in audio ducking function automatically reduces the music level from the stereo line input when an announcement is being made. Connect a wired remote for simple master volume control. Dip switches let you configure it to work in stereo or mono mode.

Its tiny form factor (106 × 44 × 222 mm) and included mounting plates allow it to be installed discreetly behind screens or under tables. Alternatively, it fits into a ¼ 19-inch rack. Use the optional rack tray to slot up to four TICA® series products alongside each other and build a system to your exact requirements, using minimal rack space.

The PRE2 uses an external 24 V power supply. Terminal block connections for the analogue inputs and outputs make wiring easy.
