P6

P6

High Output Full-Spectrum Ellipsoidal

Item no.: CLP6

Guarantee: 24 months

EAN: 4049521980381

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:P-Series

Item highlights:

  • Future-proof LED Profile Spotlight meeting coming EU regulations
  • 16,000 lm luminous flux replaces conventional 2.5 kW halogen profile lights
  • 600 W RGBALC LED (RGB, Amber, Lime, Cyan)
  • High CRI (98 @ 5,600 K) and TLCI (94 @ 5,600 K) for natural colour rendering
  • Seamless colour temperature adjustment from 1,800 K to 10,000 K
  • Extremely precise, calibrated colour mixing technology developed in Germany
  • Manually operated zoom range (5° - 50°) and additional focus
  • Protected and registered stepless, linear frost for versatile and seamless beam shaping
  • 360° rotatable four-blade framing system
  • Dual slot-in system for flexible combination of iris and gobo holder, with manual rotation
  • Whisper-quiet operation

Features

COB LED technology
The current “chip-on-board” multi-LEDs allow dense, large-area light sources to be created that are characterised by their high luminosity and wide range of even colours. Cold white According to the colour temperature scale in Kelvin (K), “cold white” is a very bright, clear light in the colour temperature range between 5,000 and 10,000 K; it is slightly artificial in character and goes well with rich primary colours.

Specifications

Illuminant type
RGBALC LED
Illuminant power
600 W
Luminous flux
16000 lm
Front lens diameter
150 mm
Exchangable lens
Yes
Zoom range
5 ° - 50 °
Focusing type
Manual
LED PWM frequency
1,530 Hz, 3,600 Hz, 12 kHz, 18.9 kHz, 25 kHz
Dimmer resolution
16 Bit
Dimmer curves
Linear, Exponential, Logarithmic, S curve, Tungsten
LED colours
Red, Green, Blue, Amber, Lime, Cyan
Correlated colour temperature (CCT)
1800 K - 10000 K
Halogen simulation redshift/DTW
Yes
Colour rendering index (CRI)
> 98
Min. TLCI
94
Iris
Yes
Framing blades
Yes
Module rotation
0 ° - 360 °
Controller protocols
DMX512, RDM, Art‑Net, sACN, iDMX® (Transceiver)
Number of DMX control modes
17
Stand alone operating modes
Master/slave, Static
Data in connector
XLR 5-pole male, RJ-45 with housing & etherCON®
Data out connector
XLR 5-pole female, RJ-45 with housing & etherCON®
Operation voltage
100 V AC - 240 V AC / 50 - 60 Hz
Rated power
620 W
Rated current
2.7 A
Mains fuse
T10AL/250 V
Fuse replacement
Possible from the outside without opening
Cabinet material
Metal
Colour
Black
Cooling system
Temperature controlled fan cooling
Cooling modes
On/Off, Auto, Constant Low, Constant Mid, Constant High
Protection class
IP20
Risk group
2
Ambient temperature
0 °C - 40 °C
Width
730 mm
Height
579 mm
Depth
410 mm
Weight
20.9 kg
Included Accessories
Mains cable

Description

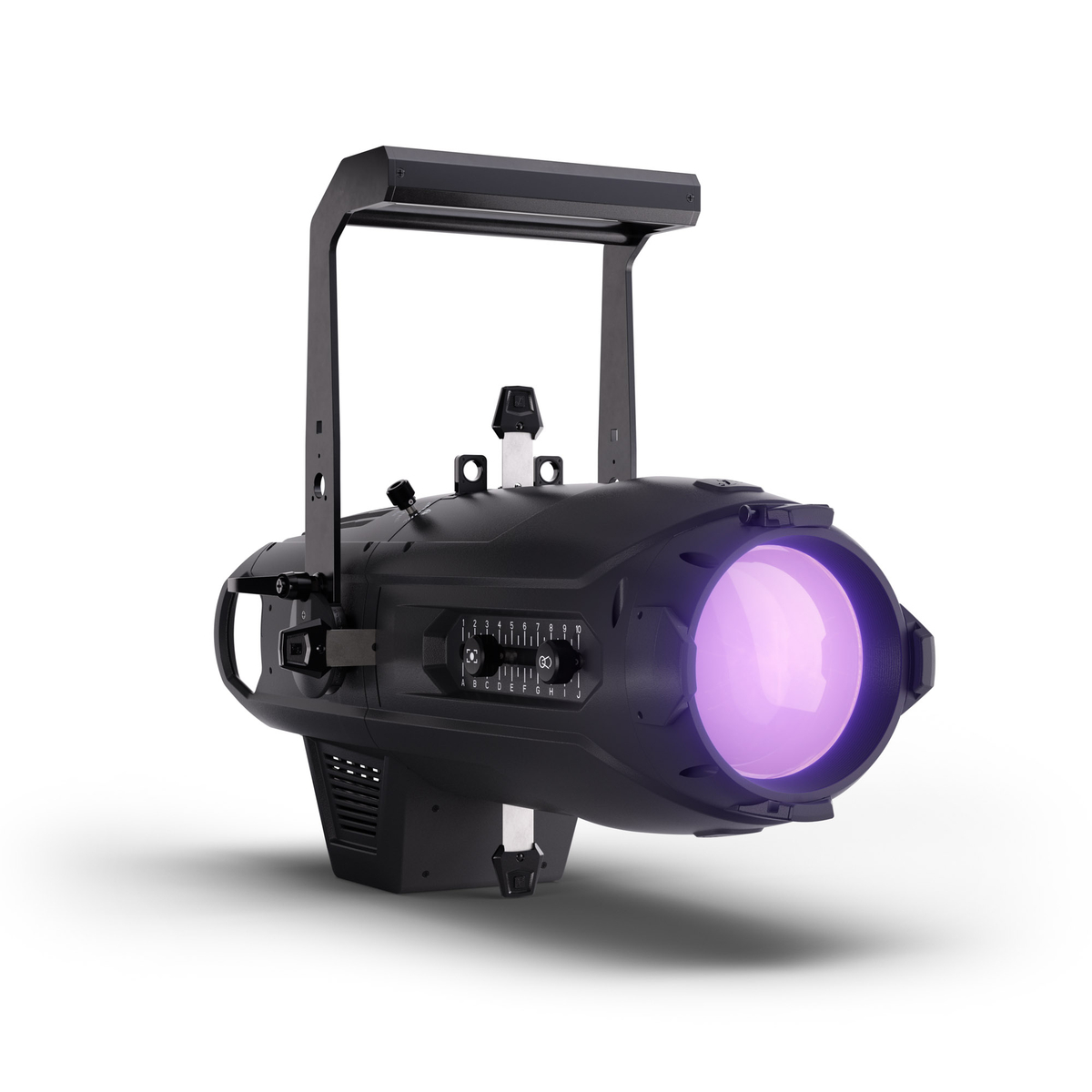

P6

The P6 is a future-proof LED profiler with a powerful 600 W RGBALC engine and 16,000 lumens, making it the perfect energy-efficient replacement for traditional 2.5 kW halogen profile lights in theaters and venues. It unites excellent lighting quality and natural colour reproduction with flexible lighting design tools in a modern lighting solution, which not only impresses in theatres, musicals, and TV studios, but also at congresses or event stages in the live performance sector and corporate world.

Thanks to the advanced colour calibration technology designed & engineered in Germany, the P6 delivers extremely precise colour mixing based on the RGBALC (RGB + Amber + Lime + Cyan) LED engine. At the same time, the high CRI of 98 @ 5,600 K and a TLCI value of 94 @ 5,600 K ensure that people and objects are always vibrantly presented in clear and dynamic colours. In the white light range, the colour temperature can be continuously adjusted between 1,800 K and 10,000 K.

To flexibly adapt the P6’s powerful light to different stage requirements, the LED profiler is equipped with an integrated zoom in the 5° to 50° range. In combination with the 360° rotatable four-blade framing system and the infinitely variable integrated frost filter (the iris and gobo holders supplied can be optionally added via a slot system), users have a wide array of creative light-shaping options at their disposal.

With an LED service life of around 50,000 hours and significantly reduced power consumption compared to old 2.5 kW halogen profile lights, the P6 is a future-proof lighting solution. This not only contributes to lower energy costs and reduced environmental impact but also aligns with the overarching ‘Green Deal’ (aiming for climate neutrality by 2050) and the harmonisation of eco-design guidelines for light sources within the European Union.
