Item no.: CLOTOSW6
Guarantee: 24 months
EAN: 4049521898273
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:OTOS® Series
Versions:
Item highlights:
- 16 x 50W RGBL LED with a total output of 8,200 lm luminous flux
- Single pixel control
- Controllable FX LED effect ring
- Zoom lens and zoom range 4° - 60°
- Dual zoom enables two individually controllable zoom levels
- Dual input mode as option for pixel mapping
- Flexible control options via integrated W-DMX™ & CRMX transceiver, DMX and RDM
- Supplied in matching flight case insert
Features
Single pixel control
This device has an individual pixel control function. Since the colour and brightness of each LED pixel can be individually controlled (“Single Pixel Control”), the device can be used to generate animated graphic patterns and pixel mapping effects.
Specifications
Description

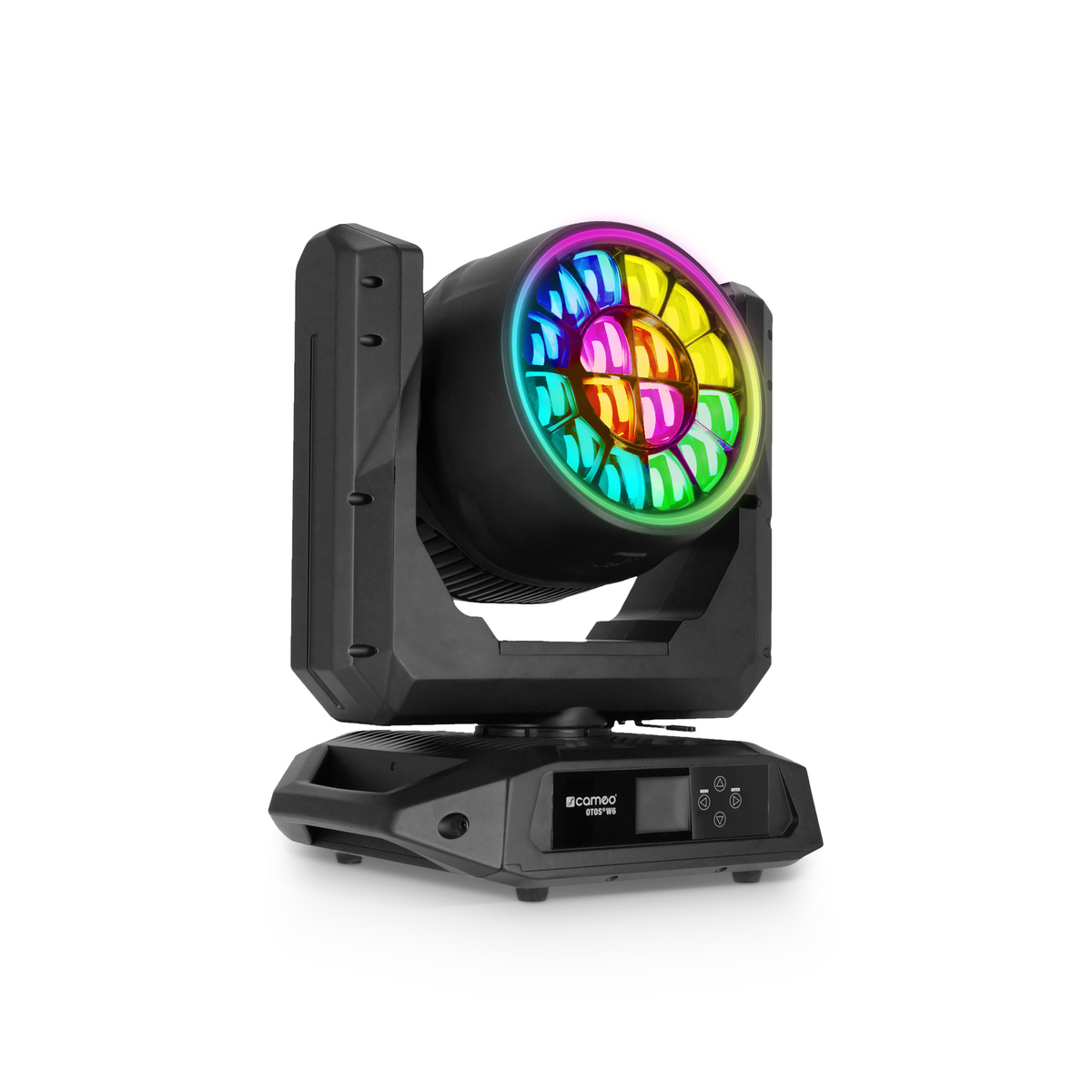

OTOS® W6
With vibrant accents, the wash products in the OTOS® series enrich outdoor concert and festival stages as well as major TV show productions. Three multi-faceted eye-catchers, rich in features that are an absolute must.
Versatile zoom levels
As the largest IP65 wash moving head in its series, the OTOS® W12 fascinates with its multi-zoom feature. It enables three different levels to be controlled individually and the zoom range to be adjusted on several levels. This feature can be used on two zoom levels with the OTOS® W6 and on one level with the OTOS® W3.
FX LED effect ring
All models have the controllable FX LED effect ring in common, which can shine both in white tones and in a wide range of colours. The effect ring is barely visible when the device is switched off as it has a narrow width and therefore fits discreetly into the stage design.
Single Pixel Control & Dual Input Mode
Depending on the size of the product, either 7 x 50W, 16 x 50W or 32 x 50W RGBL LEDs are available, which can be controlled individually using Single Pixel Control. - The FX effect LED ring also has a large number of pixels, which can also be controlled individually. For more efficient use of the DMX channels, you can also use the dual input mode, which allows you to assign a separate colour to each pixel via pixel mapping.
Flexible control options
All IP65 wash moving heads in the OTOS® series have an integrated W-DMX™ & CRMX transceiver, but can also be controlled by cable via DMX and RDM.
Three options that will spice up your shows. Decide now and "Ride vibrant".
