OTOS® SP6
IP65 Spot Profile Moving Head
Item no.: CLOTOSSP6
Guarantee: 24 months
EAN: 4049521764134
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:OTOS® Series
Versions:
Item highlights:
- IP65 Spot Profile Moving Head with 600 W LED and 86.000 lux at 6° beam angle
- High-quality optics with 130 mm front lens and large 6°-46° zoom
- Uniform projection without hotspots throughout the zoom range
- CMY colour mixing and additional colour wheel with 6 dichroic filters + open
- Rotating gobo wheel with 7 indexable/rotatable, exchangeable glass gobos + open
- Static gobo wheel with 7 interchangeable glass gobos + open
- 4-blade framing system with +/- 45° rotation
- Linear CTO correction (2,600 K - 7,000 K)
- Selectable pulse width modulation (up to 25 kHz) for flicker-free operation
- Flexible control options: DMX, RDM, Art-Net, sACN, W-DMX, CRMX
- Easy handling and low weight (34 kg)
- Supplied in matching flight case insert
Features
4 framing shutter blades
Like wing limiters, but significantly more flexible, there are four diaphragm sliders here that enable the light beam to be shaped. Each diaphragm slider can be individually angled and inserted all the way for complete shading. The diaphragm slider system can be rotated by 45° in both directions for exact positioning.
Specifications
Description

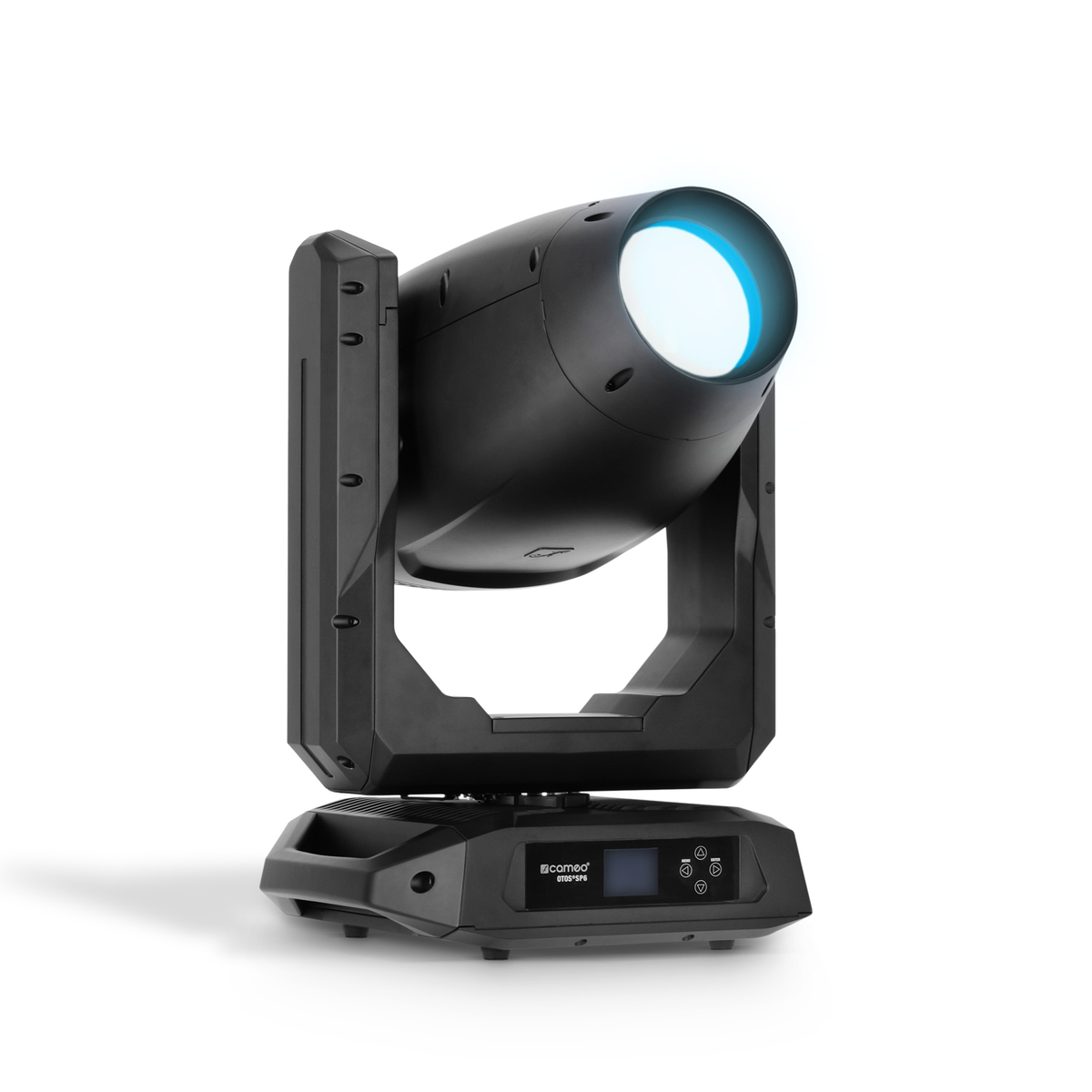

OTOS® SP6
Combined spot/profile moving heads are true all-rounders for live, event, theatre and TV use. The OTOS® SP6 is no exception - and still stands out from the crowd as an IP65 spot/profile with LED light source! The 600 Watt LED generates a powerful 86,000 lux at 6° beam angle. At the same time, the optical system with 130 mm front lens enables an impressively wide zoom range from 6° to 46° without visible hotspots.
The OTOS® SP6 is made for precise and creative use. The light beam can be shaped via the two gobo wheels (rotatable with seven indexable and rotatable, exchangeable glass gobos + static with seven exchangeable glass gobos), via the rotatable and indexable 5-facet prism as well as via the integrated 4-fold iris slider system with individual angulation and +/- 45° rotation. Two frost filters (light and heavy) and the infinitely variable iris diaphragm round off the wide range of possibilities.
The OTOS® SP6 uses CMY colour mixing and includes an additional colour wheel with six dichroic filters + open for particularly saturated, powerful colours. The linear CTO correction allows infinitely variable adjustment of the colour temperature in the range from 2,600 K to 7,000 K. Thanks to the adjustable PWM frequency (650 Hz - 25 kHz), the OTOS® SP6 is also suitable for use with film and TV cameras. The high-resolution, uniform 16-bit dimming behaviour including four selectable dimming curves also contributes to this.
The control of the OTOS® SP6 could hardly be more flexible. With DMX, RDM, Art-Net, sACN, W-DMX™ and CRMX, almost all control standards of modern lighting technology are available. On the unit itself, the moving head can also be operated via a battery-operated display using four buttons and configured independently of the mains. When it comes to on-site handling, the OTOS® SP6 scores with its intelligently placed handles and - as with all moving heads of the OTOS® series - an exceptionally low weight (OTOS® SP6: 34 kg).
