OTOS® L16
IP65 Moving Bar
Item no.: CLOTOSL16
Guarantee: 24 months
EAN: 4069724028055
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:OTOS® Series
Versions:
Item highlights:
- 16 × 50 W RGBL LEDs with 9,000 lm output
- Motorised tilt range: 208° (+/- 104°) for dynamic movements
- 2 independent zoom segments, each with 8 lenses (left and right), 4.6°–37° zoom range
- Integrated FX strip (such as LC12 and OTOS Wash FX rings)
- Linear bar design, ideal for precise beam looks and symmetrical effects
- Seamless clustering for continuous light surfaces
- IP65 protection for outdoor and touring applications
- Quick-lock mechanism and strategically placed handles for efficient handling
- 4 different filters optionally available
- Weight: approx. 25.8 kg
Features
Environment-friendly
The high energy efficiency, the long service life of the LED lamps and the low level of heat dissipation make this device particularly environment-friendly.
Specifications
Description

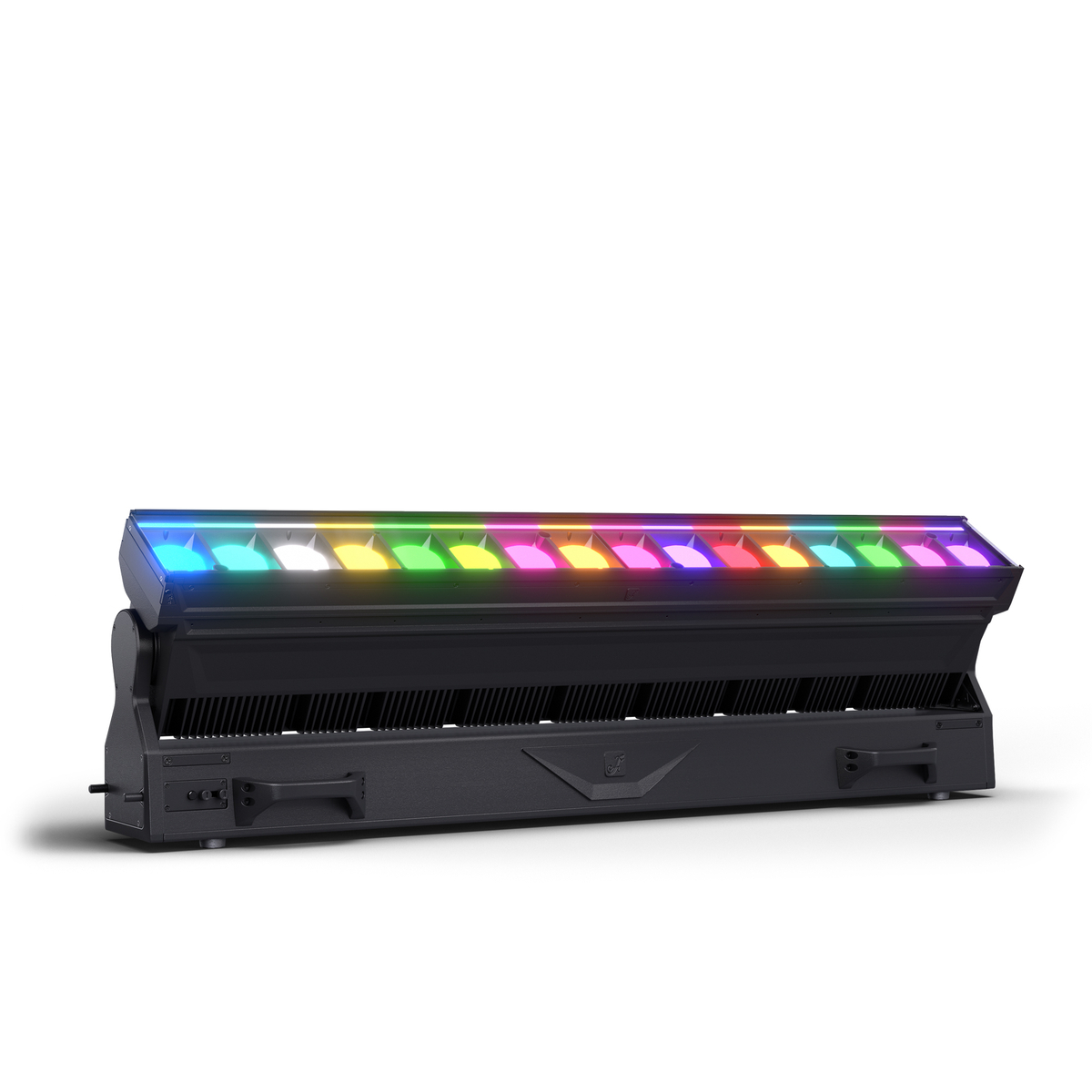

OTOS® L16
The OTOS® L16 extends the OTOS series with an IP65-certified LED bar with 16 × 50 W RGBL lenses. With the power of 720 W, it achieves a light output of 9,000 lumens – setting powerful accents in any outdoor show. Two independently controllable zoom segments, an integrated FX strip, and the motorised tilt range of 208° (+/- 104°) make the L16 a versatile tool for precise beams, dynamic zoom effects, and moving light accents – far more than a classic static LED bar.
The linear design enables clear lines and seamless cluster effects, while the RGBL system produces brilliant colours and bright white in the 1,800–10,000 K range. Strategically placed handles, a compact connector layout, and the quick-lock mechanism make rigging faster and cable management tidier.
As part of the OTOS® family, the L16 is optically and photometrically matched to the OTOS Wash series and expands the creative spectrum with striking, symmetrical looks with maximum expressiveness.
