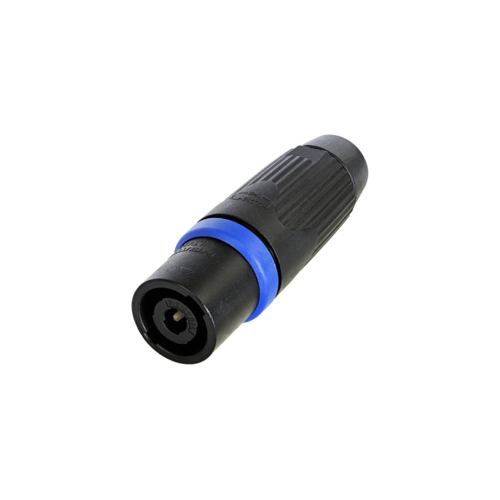

Item no.: NLT4MXXBAG
Guarantee: 12 months
EAN: 7613187013430
Sliding scale: 1
Unit: Piece
Packaging unit: 50
Item highlights:
- Current rating 40 A continuous, 50 A audio signal with 50% duty cycle
- Robust and durable all metal housing
- Sealing ring provides weatherproof IP54 rating in mated condition
- Reinforced metal quick lock system for ease and precise locking
- Extra large solder contacts for up to 6mm² (AWG10) wires
- Mate with all available speakON products
- IEC 61984 certified IEC 62368/-1 compliant
Specifications
Product type
Plugs and Connectors
Type
Speakon and Loudspeaker Connectors
Poles
4
Gender
male
Cable diameter
9 - 16 mm
Contacts
copper
Connection type
solder contacts
Color
Black
Housing
Zinc die-cast
Length
83 mm
Diameter
26 mm
Weight
0,07 kg
Description
NLT4MXX-BAG
The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.
Downloads
Name | Type | Format | File size | ||
|---|---|---|---|---|---|
| NLT4MXXBAG Quick Start Guide | Quick Start Guide | 2.45 MB | |||
| NLT4MXXBAG 2D Drawing | 2D Drawing | 69.49 KB | |||
| Product Images | Images & Artwork | .zip | - |
