NLT4MPXX

NLT4MPXX

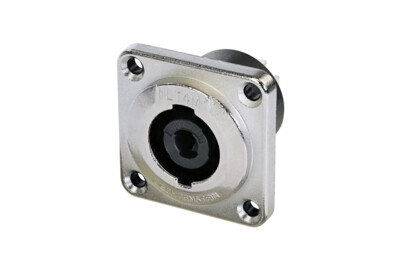

speakON® chassis connector 4-pole male Neutrik®

Item no.: NLT4MPXX

Guarantee: 12 months

EAN: 4049521638602

Sliding scale: 1

Unit: Piece

Packaging unit: 25

Versions:

Item highlights:

  • Extremely robust metal housing designed for harsh and demanding environment
  • Ideal product for touring applications and harsh environments
  • Current rating 40 Amp continuous, 50 Amp audio with 50% duty cycle
  • Uses precise “Quick Lock” system
  • Mates with all currently available speakON products
  • Weatherproof built-in gasket meets IP 54 protection class (4 pole)
  • 4 pole version has UL Recognized components, CSA listed
  • 4 type range - also male cable connector and female receptacle on 4-pole version
  • IEC 61984 certified IEC 62368/-1 compliant

Specifications

Product type
Plugs and Connectors
Type
Loudspeaker Connectors
Poles
4
Gender
male
Contacts
copper
Connection type
Flat tabs / solder contacts
Housing
die-cast zinc
Width
38 mm
Height
38 mm
Depth
37 mm
Weight
0,05 kg

Description

NLT4MPXX

4 pole male chassis connector, metal housing, solder or ¼" flat tabs

The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.

Downloads

Name
Type
Format
File size
NLT4MPXX 2D Drawing 2D Drawing.pdf182.54 KB
Product ImagesImages & Artwork.zip-

Nothing there?
You can find more downloads in our download centre.
