Item no.: NL4MPXXUC
Guarantee: 12 months
EAN: 4049521920769
Sliding scale: 1
Unit: Piece
Packaging unit: 100
Item highlights:
- Original speakON® chassis connector
- Compliant to all 4-pole speakON® connectors
- Complies with the appliance standard IEC 62368-1
- 30A RMS dauerhafte Strombelastung
- Glas fiber reinforced V-0 Material
Specifications
Plug type
Standard speaker connector 4-pole male
Connection type
Soldering contacts
Chassis material
Polyamide
Length
36 mm
Width
26 mm
Height
31 mm
Description

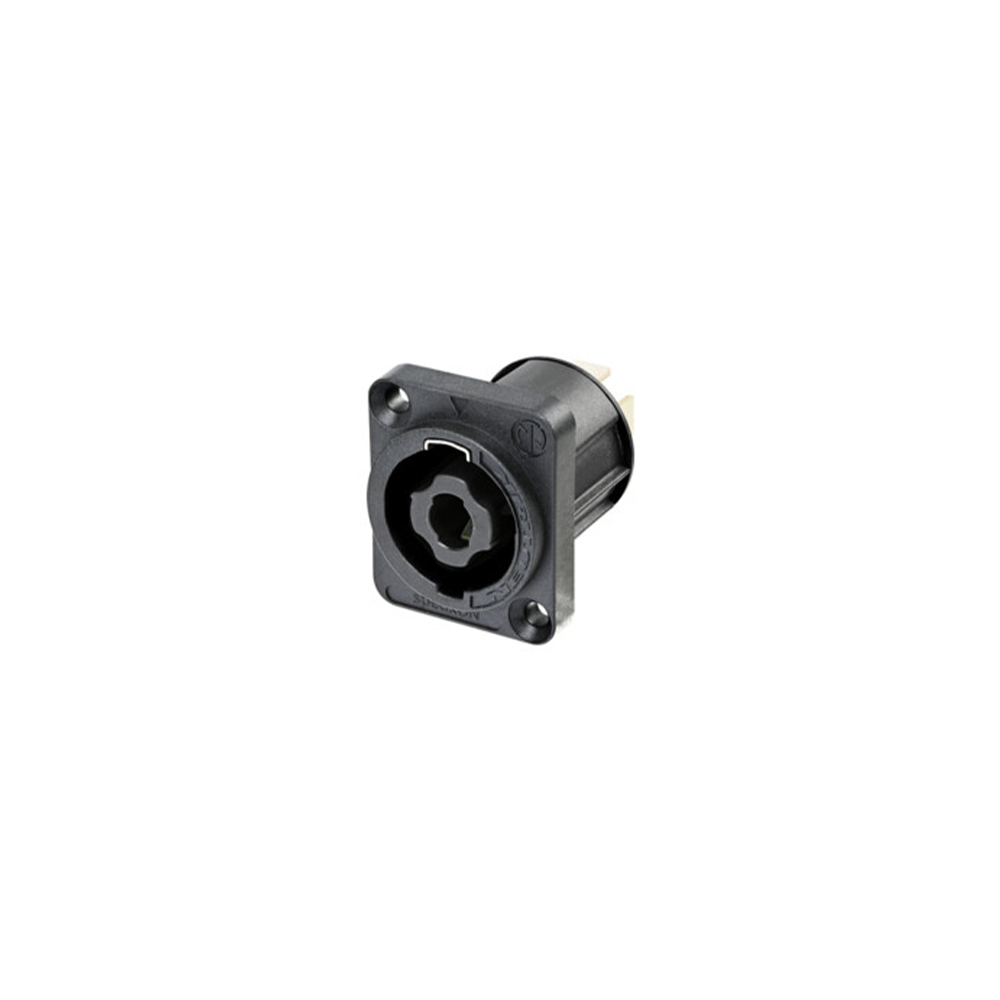

NL4MPXX-UC
4-pole chassis connector for 30 A rms continuous current load. Black D-shaped flange, 1/4" flat tabs.
Due to the component certification according to IEC 61984, this connector fulfills the device standard IEC 62368-1.
The speakON chassis connectors have established themselves as the standard for loudspeaker / amplifier chassis connectors. They have a unique metal locking system that only establishes contact after complete locking. The speakON chassis connectors are robust and versatile.
Downloads
Name | Type | Format | File size | ||
|---|---|---|---|---|---|
| NL4MPXXUC 2D Drawing | 2D Drawing | 195.66 KB | |||
| Product Images | Images & Artwork | .zip | - |
