Item no.: NAC3FXXAWL
Guarantee: 12 months
EAN: 7613187017780
Sliding scale: 1
Unit: Piece
Packaging unit: 50
Versions:
Item highlights:
- IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1
- Power-in (blue) and power-out (grey) versions with di?erent keying to avoid the possibility of intermating
- Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
- Easy and reliable twist lock system
- Ergonomic design with slip-proof two-component molded housing
- Unique NEUTRIK locking bushing and strain relief for cable diameters 10 mm to 16 mm
- Superior NEUTRIK quality standard, extremely robust and reliable
- Improved kink protection by two-component bushing
Specifications
Product type
Plugs and Connectors
Type
Power Connectors
Poles
3
Gender
female
Cable diameter
10 - 16 mm
Contacts
copper
Connection type
PowerCon
Housing
polyamide
Weight
0,044 kg
Description

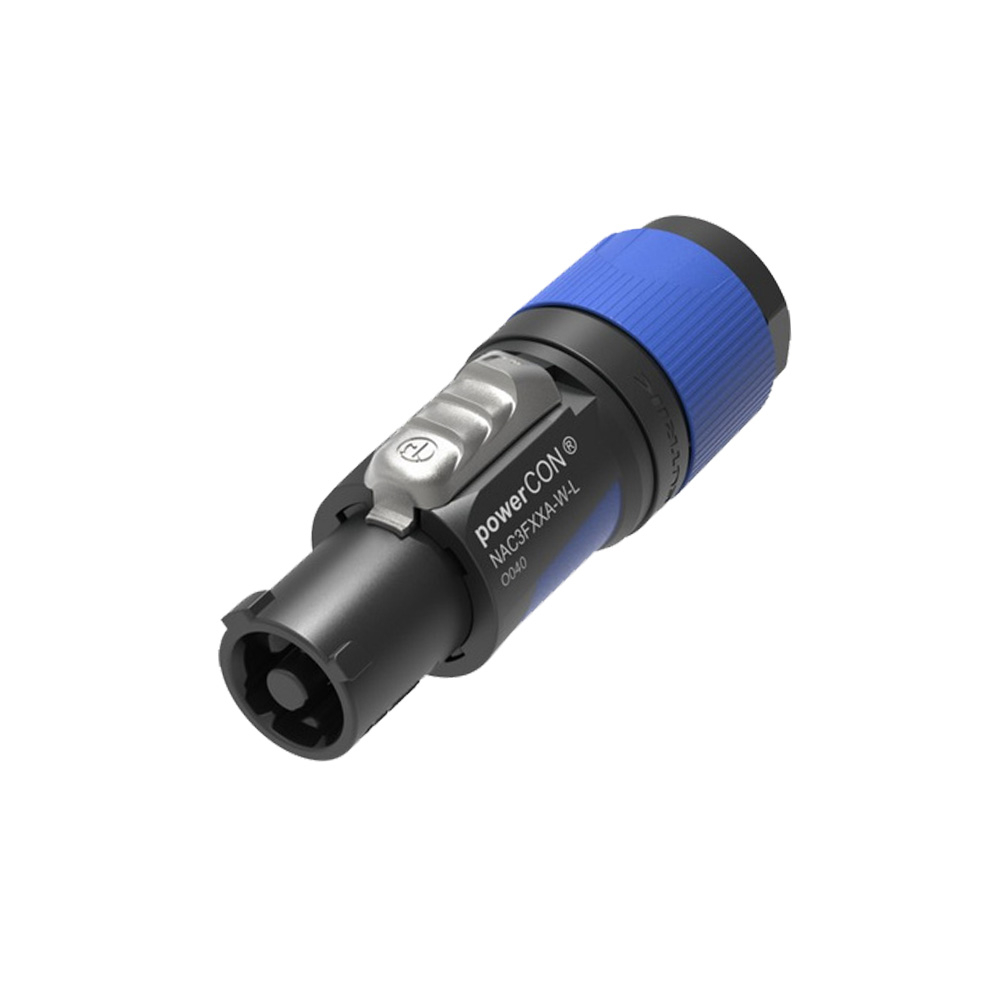

NAC3FXXA-W-L
- Locking AC mains cable connector, keyed and color coded (blue) for power-in, screw terminal assembly, for cable diameters 10 - 16 mm.
- The powerCON FXXA/FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles.
- It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection.
