MOVO BEAM 100

Unlimited Rotation Beam Moving Head with LED Ring

Item no.: CLMB100

Guarantee: 24 months

EAN: 4049521209628

Sliding scale: 1

Unit: Piece

Packaging unit: 2

Series:MOVO® Series

Questions about the item?

Item highlights:

Ultra-bright 60 W Osram RGBW LED for saturated primary colours, subtle pastel hues and natural shades of white
Individually controllable 4-segment RGB LED surround with single pixel control
2 high-speed motors for ultra-fast continuous pan and tilt
Fantastic automated modes
4 selectable dimming curves
4 DMX modes and standalone, master or slave operation
2.5" TFT display and touch sensitive buttons for intuitive configuration
Omega mounting bracket included

Features

RGB additive colour system plus white LEDs
Additional white LEDs create more contrast and clearer colour boundaries. What is more, they improve the creation of white and pastel colours.

Unlimited rotation
This moving head is fitted with two powerful, fast motors for endless horizontal and vertical rotation (pan and tilt).

LED technology
LEDs are ideal for use in lighting systems: They are bright and have a low level of heat dissipation, a long operating life and low energy consumption. Moreover, LED systems often weigh less than conventional lighting systems.

Master & slave
Master/slave operation allows identical DMX devices to be controlled by a DMX device of the same model and software standard. All the devices are connected by DMX cables in series. The master device is then set to run in standalone mode and the slave devices are set to run in slave mode.

Environment-friendly
The high energy efficiency, the long service life of the LED lamps and the low level of heat dissipation make this device particularly environment-friendly.

Strobe
Strobes emit fast flash sequences, which makes movements appear “frozen” and creates a kind of slow-motion effect.

DMX512
Communication standard DMX512 was developed specially for lighting systems in 1986. Up to 32 DMX devices can be daisy-chained and controlled via a control source (e.g. a light mixer).

Standalone mode
In standalone mode, the device functions are controlled via integrated programmes, so no light mixer or “master” controller is required.

The PAN & TILT feature moves light emission along the X and Y axes.

Specifications

Product type

LED Moving Lights

Type

LED Moving Effects

Colour spectrum

RGBW

Number of LEDs

1

LED type

60W OSRAM (approx. 50.000 operating hours)

Refresh rate

1000 Hz

Dispersion

5.5 °

DMX input

XLR 3-pin male

DMX output

XLR 3-pin female

DMX mode

15-channel, 4-channel

DMX Functions

Auto programs, colour fade, colour jump, colour macro, Colour Ring Macro, Colour Ring Macro Speed, Dimmer, Dimmer Colour Ring, Dimmer Curve, Dimmer Fine, PAN, PAN UNLIMITED ROTATION, Pan/Tilt Macros, Pan/Tilt Speed, Pan/Tilt fine, RGB Ring 1-4, RGBW, Strobe Colour Ring, Stroboscope, TILT, TILT UNLIMITED ROTATION

PAN movement

unlimited / 540°

TILT movement

unlimited / 270°

Standalone modes

Auto programs, Static Mode

Controls

Enter, Mode, Value Down, Value Up

Indicators

2,5” TFT Display

Operating voltage

100 V AC - 240 V AC, 50 - 60 Hz

Power consumption

130 W

Power supply connector

Blue and white power I/O

Housing material

ABS plastic, Metal

Cabinet colour

Black

Cooling

fan

Illuminance

157000lx @ 1m

Luminous flux

1480 lm

Width

210 mm

Height

299 mm

Depth

210 mm

Weight

6 kg

Description

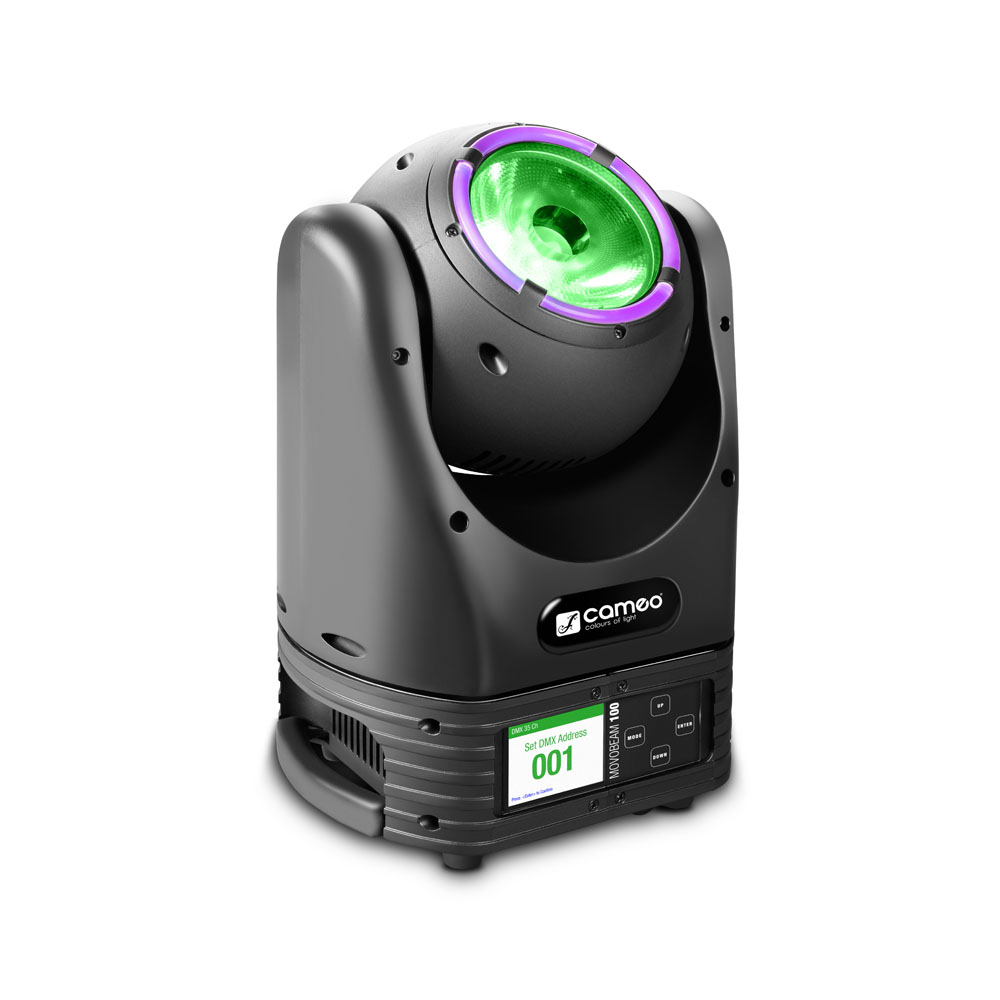

MOVO BEAM 100

The MOVO® BEAM 100 is a powerful ultra-fast moving head delivering a narrow and defined 5,5° beam. A central high-performance 60 watt Osram LED produces rich RGBW mixes with saturated primary colours, subtle pastel hues and natural shades of white. It is surrounded by an RGB LED ring with 4 individually controllable segments to enable a multitude of spectacular beam effects. With its 1,000 Hz refresh rate the fixture is perfect for motion picture and TV applications.

Driven by two high-speed, high-torque motors the MOVO® BEAM 100 provides continuous pan and tilt with smooth precision. It sports a bright 2.5" TFT display with touch sensitive buttons for convenient configuration, DMX control and amazing automated modes. Linear dimming with 4 selectable curves, a rapid strobe and colour temperature correction add to a brilliant and exciting performance.

The MOVO® BEAM 100's compact compound housing features fan cooling to ensure reliable operation and extended LED life. It comes with an omega bracket for a variety of mounting options.
