Item no.: LDMAILASUBP
Guarantee: 24 months
EAN: 4069724003533
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:MAILA®
Versions:
Item highlights:
- 2x15" high-performance bandpass subwoofer
- Power handling (AES): 2,500 W
- Input impedance: 4 Ω
- Frequency response (-6 dB): 34 Hz – fx
- Max. SPL (peak): 139 dB
- 2x docking plate for vertical and horizontal setup with pole (M20) or MAILA COL
- Four airflow-optimised bass reflex ports
- Wink-LED for individual speaker identification
- Six handles for touring-grade handling
- Rugged wooden cabinet with polyurea coating
Specifications
Power handling (Peak)
5000 W
Power handling (RMS)
2500 W
Max. SPL peak (sine burst, halfspace/1 m, THD≤10 %)
137 dB
Max. SPL peak (pink noise, halfspace/1 m, CF 4)
139 dB
Max. SPL average (sine burst, BW, halfspace/1 m, THD≤10 %)
130 dB
Low frequency limit (-3 dB, rel. Avg.)
39 Hz
Low frequency limit (-6 dB, rel. Avg.)
34 Hz
Low frequency limit (-10 dB, rel. Avg.)
33 Hz
Impedance
4 Ω
Number of inputs
1
Input connector types
speakON® 4-pole female socket
Number of outputs
2
Output connector types
speakON® 4-pole female socket
Colour
Black
Size
15 "
Quantity
2
Magnet
Neodymium
Voice coil
4 "
Design
Bandpass
Number of handles
6
Flange
M20, MAILA® COL flange
Cabinet material
Birch multiplex
Coating
Polyurea
Ambient temperature
0 - 40 °C
Maximum air humidity (non-condensing)
80 %
Width
536 mm
Height
932 mm
Depth
796 mm
Weight
72.2 kg
Description

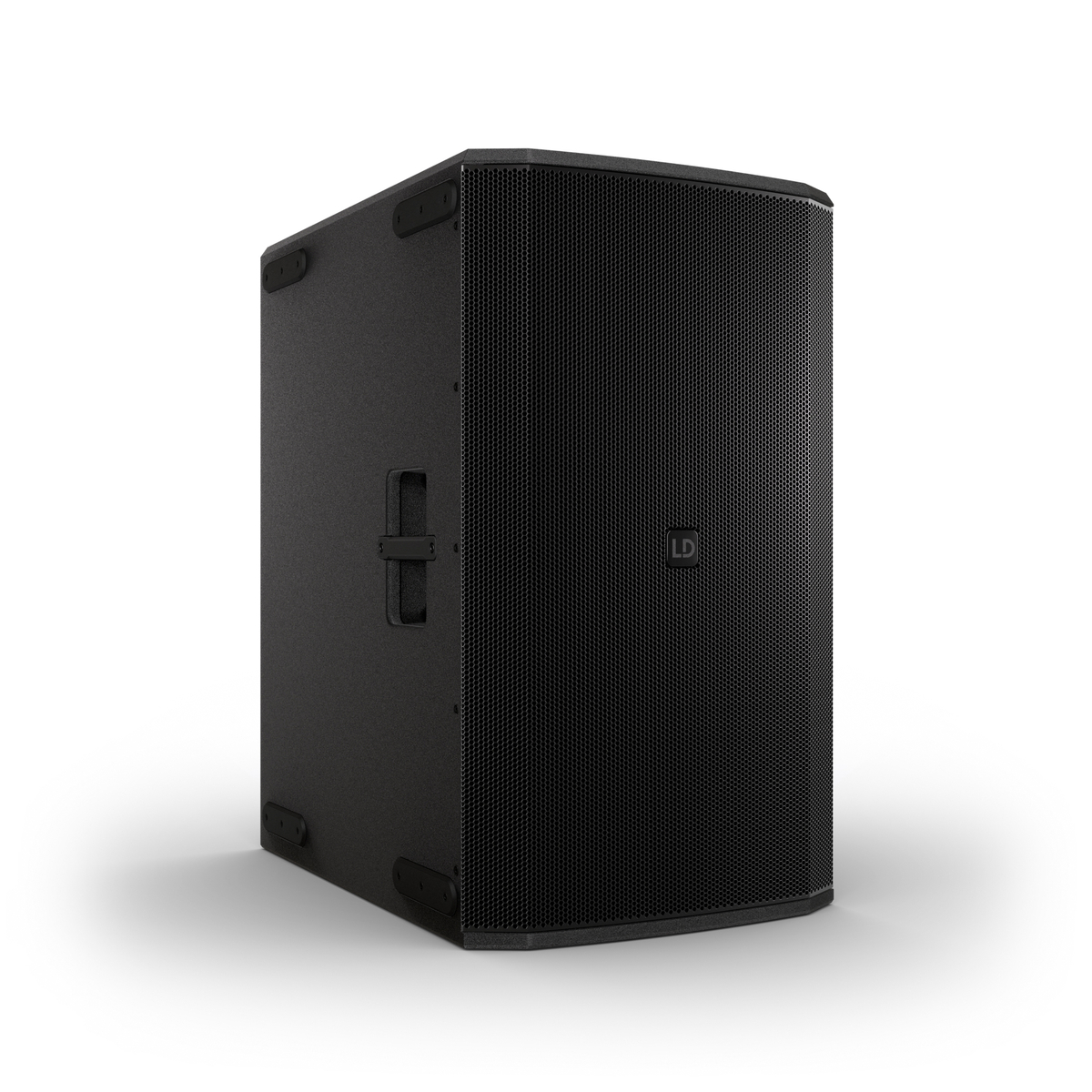

MAILA SUB P
MAILA SUB P is the high-output low-frequency option within the passive MAILA system, designed for maximum headroom and authority in demanding applications. Its dual 15" bandpass design is engineered to deliver a powerful, controlled bass base while maintaining the speed and definition required for modern live sound applications.
The acoustic concept is based on a planar wave bandpass design with quarter-wave horn and symmetrical driver construction. By placing the two 15" drivers opposite each other, the enclosure provides effective impulse compensation, resulting in a powerful and precise low-frequency punch.
The four large bass reflex openings and the cabinet layout help reduce air-flow losses and noise while maintaining efficiency at low frequencies.
Two docking plates enable direct mounting of a M20 speaker pole or a MAILA COL onto the subwoofer, in either a horizontal or vertical position.
The enclosure is made of 18 mm birch plywood and finished with a hard-wearing polyurea coating for everyday road use. A total of six carrying handles ensure optimum grip during assembly and dismantling. For comfortable transport on longer trips, the optional MAILA SUB castor board is the optimal choice.
For passive MAILA systems, ADA amplifiers in combination with ArmoníaPlus provide a structured, repeatable setup workflow. We have transferred the MAILA Quick Setup approach into ArmoníaPlus by creating dedicated manufacturer EQs (MEQ) and presets for 250+ MAILA configurations. Select your MAILA configuration and receive the key setup guidance you need – such as pick-up points and satellite curving. The selected configuration includes the required compensation for loudspeaker coupling and air loss over distance, providing a reliable starting point. ArmoníaPlus supports our Wink-LED identification for passive MAILA components and offers further tuning options, including live Smaart integration, plus valuable insight into system health and available headroom.
