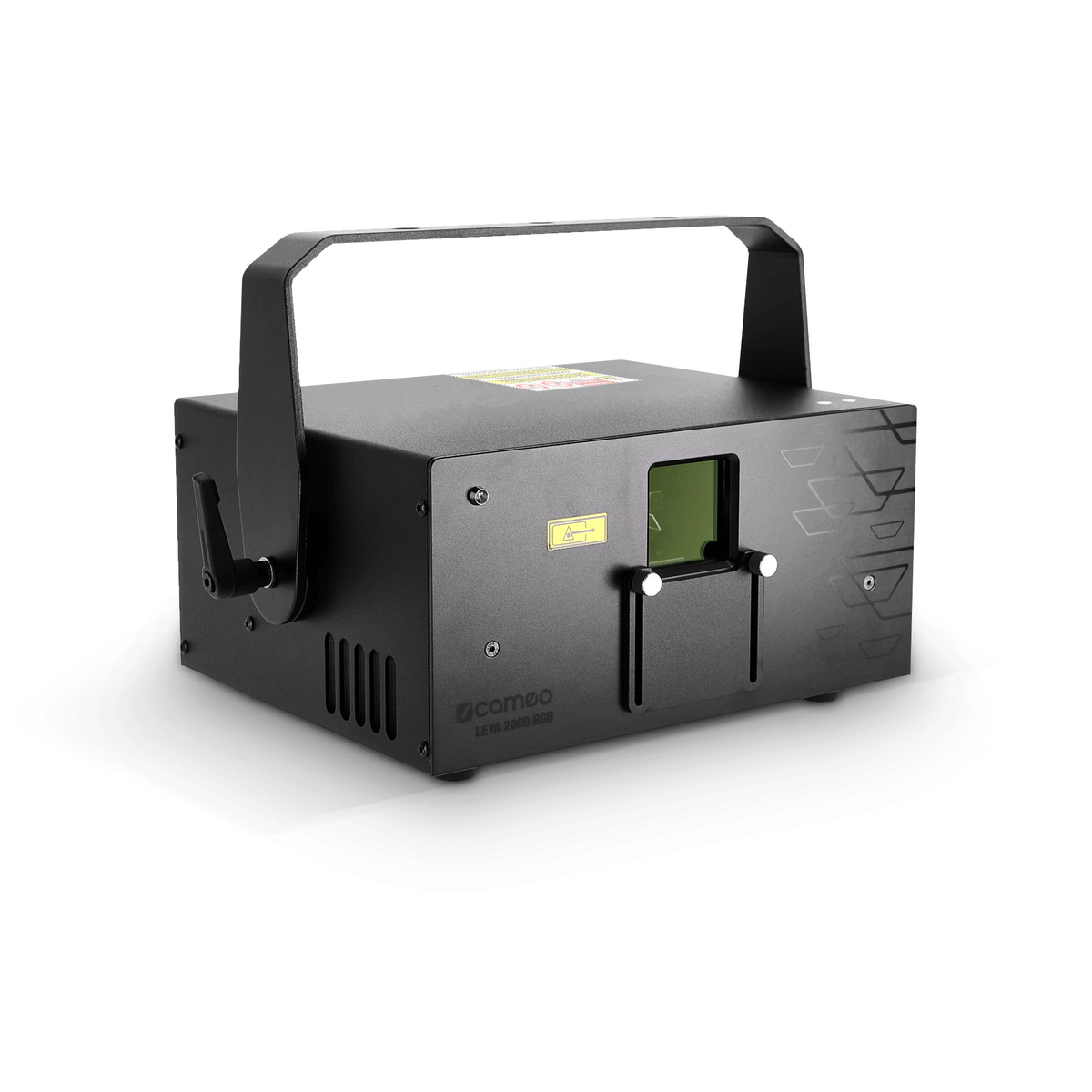

LEYA 2000 RGB

VIDEO

LEYA 2000 RGB

Full diode show laser

Item no.: CLLLEYA2000RGB

Guarantee: 24 months

EAN: 4049521818783

Sliding scale: 1

Unit: Piece

Packaging unit: 2

Series:LEYA

Versions:

Questions about the item?

Item highlights:

2,000 mW total output power (R: 400 mW, G: 600 mW, B: 1000 mW)
Dust-proof aluminium housing for minimum maintenance
Scan-fail safety system, interlock emergency stop signal
25 Kpps galvo scanner at 8° ILDA
Control via ILDA
Analogue modulation for up to 16 million colour shades
Precise beam with extremely low divergence for razor-sharp projections
Neutrik PowerCON power input and output

Features

Full diode laser
The pure diode construction makes for a longer service life and much greater efficiency than DPSS lasers, which are also temperature-dependent.

RGB additive colour system
With additive colour blending, all colours and white are created by blending different amounts of red, green and blue light. The RGB system is used in televisions, computer monitors and digital cameras, for example.

Should the motors guiding the laser beam encounter an error that results in the emission of a static laser beam, the device will immediately shut down laser output.

Specifications

Laser source type

Laser diode

Total laser power

2000 mW

Max. divergence

1.1 mrad

Laser colors

RGB

Laser power red

400 mW

Laser power green

600 mW

Laser power blue

1000 mW

Max. scan angle

40 °

Drive

High-speed galvo

Scan speed (8° ILDA)

25 kpps

Operating modes

ILDA

Data in connector

XLR 3-pole male, D Sub 25 male

Rated power

75 W

Mains connector

Mains socket indoor power in male & powerCON®

Power out connector

Mains socket indoor power out male & powerCON®

Cabinet material

Aluminium

Colour

Black

Protection class

IP20

Ambient temperature

10 °C - 40 °C

Laser class

4

Width

192 mm

Height

114 mm

Depth

238 mm

Weight

4.2 kg

Description

LEYA 2000 RGB

Ignite your events with the LEYA RGB Diode Lasers. From DJ sets to vibrant parties, these laser light projectors redefine entertainment. With power options of 2,000 mW or 3,000 mW, an all-diode system, and precise beams with minimal divergence, your projections will dazzle. The 25 Kpps galvo scanner, scan fail safety system, and emergency stop ensure seamless shows. Let the LEYA series elevate your gatherings into unforgettable spectacles.
