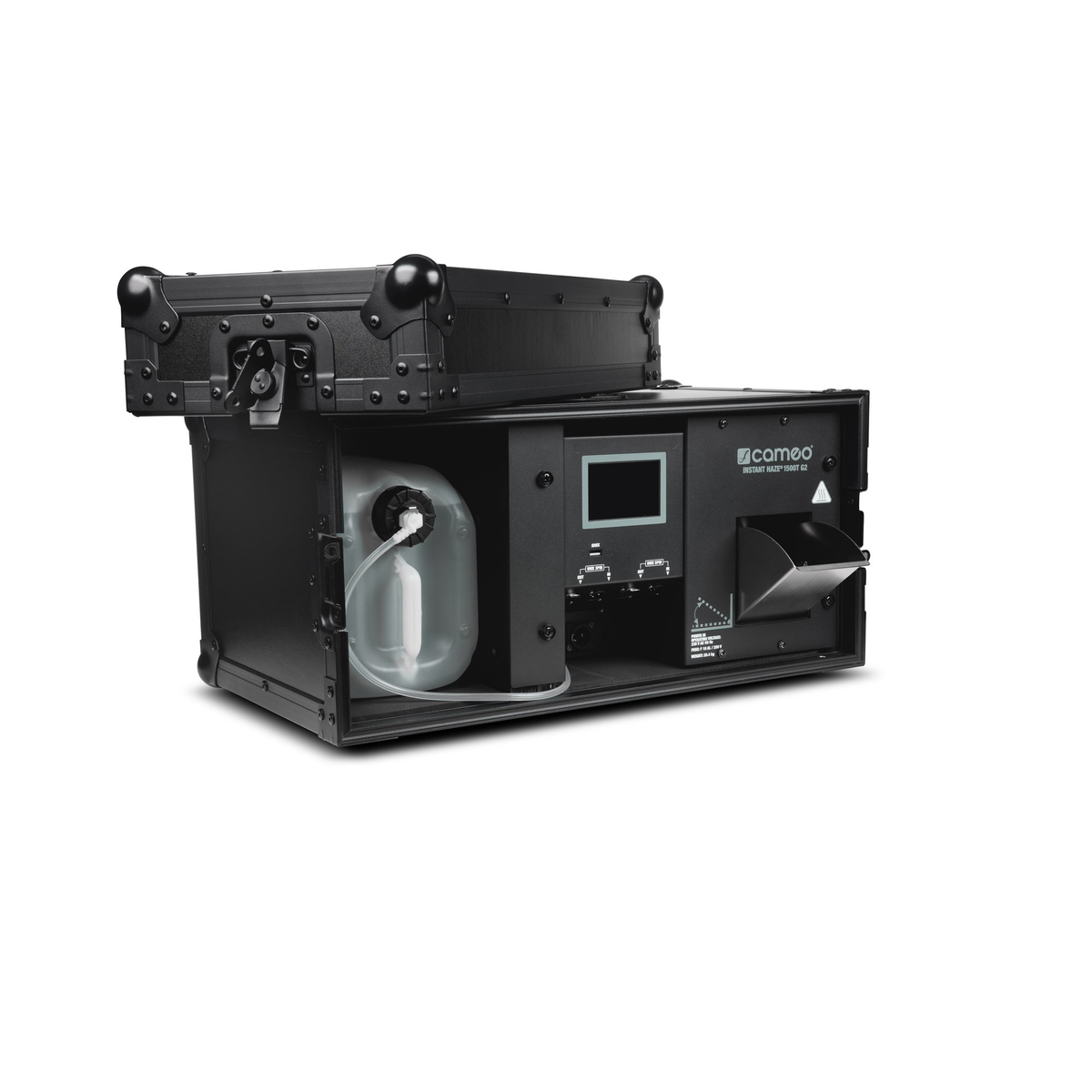

INSTANT HAZE 1500 T G2

INSTANT HAZE 1500 T G2

Touring-Hazer with Microprocessor Control

Item no.: CLIH1500TG2

Guarantee: 24 months

EAN: 4049521979859

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:INSTANT

Versions:

Item highlights:

  • 1,500-watt touring hazer with microprocessor-controlled control unit
  • Robust road case construction for demanding touring operations
  • Additional handle on the top for easier transport and handling
  • Intuitive touch display for particularly easy operation
  • Detachable powerCON TRUE1 connection for flexible and secure power connection
  • Durable stainless steel evaporation tube
  • Automatic self-cleaning to prevent deposits
  • Output and fan individually adjustable at 1 % levels
  • 2-channel DMX control and stand-alone function
  • Integrated slot for fluid canisters up to 5 l
  • Ultra-silent operation – ideal for noise-sensitive applications
  • Perfect for TV, film, fashion shows, live events and mobile discos
  • Enhances the effect of any light show with a fine, long-lasting haze

Features

iDMX Stick compatible
This product includes an input for the iDMX Stick, enabling an upgrade to W-DMX functions.

Specifications

Colour
Black
Controller protocols
DMX512, iDMX® (Transceiver)
Operating modes
DMX512
Number of DMX control modes
2
Stand alone operating modes
Stand-alone, Timer function
Data in connector
XLR 3-pole male
Data out connector
XLR 3-pole female
Operation voltage
230 V AC / 50 Hz
Rated power
1,500 W
Inrush current
32 A / 0.03 ms @230 V (first half cycle)
Mains connector
Mains plug device outdoor male & TRUE1®
Mains fuse
F10AL/250 V
Fuse replacement
Possible from the outside without opening
Power out connector
Mains plug device outdoor female & TRUE1®
Cabinet material
Metal
Protection class
IP20
Ambient temperature
5 - 45 °C
Width
450 mm
Height
273 mm
Depth
585 mm
Weight
20.4 kg
Included Accessories
Mains cable

Description

INSTANT HAZE 1500 T G2

Thanks to its robust tour case housing, the INSTANT HAZE 1500 G2 from Cameo's Instant Series is designed for tough touring use. With its maximum fluid consumption of only 9 ml per minute, extremely short warm-up time of less than a minute and ultra-silent operation, it is perfect for TV and film productions, fashion shows, live events and mobile discos.

The highly efficient micro-processor-controlled hazer features a durable evaporation tube made of austenitic stainless steel and automatic self-cleaning to prevent clogging and minimise maintenance. The vapour output can be regulated continuously without reheating and, like the fan speed, in 1% intervals for stages and rooms of any size.

The second generation of the INSTANT HAZE 1500 G2 has been optimised for even more comfortable handling: Thanks to the additional handle on the top, transporting and positioning the device is even easier. The modern touch display ensures particularly intuitive control directly on the device. In addition, the hazer now has a detachable powerCON TRUE1 connection for maximum flexibility and safety in the power supply.

The INSTANT HAZE 1500 G2 can be controlled in 2-channel mode via DMX and operated as a standalone unit. It is equipped with 3 and 5-pin DMX inputs and outputs and has a robust design with a slot for fluid canisters up to 5 litres. The device is protected against overheating.

For optimal results, use Cameo Instant Haze Fluid, which has been especially developed for Cameo Hazer. Use of other fluids will void the warranty and may damage the device.
