INSTANT FOG 1700 T PRO

INSTANT FOG 1700 T PRO

High Output 1,700 W Touring Fog Machine

Item no.: CLIF1700TPRO

Guarantee: 24 months

EAN: 4049521305481

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:INSTANT

Versions:

Item highlights:

  • 1700 watt high output touring fogger
  • Built into a rugged road case
  • DMX control plus standalone operation
  • High-contrast LC display
  • Master/Slave Mode
  • Integrated fluid canister drawer
  • Integrated 100 mm hose adapter
  • Automatic shutdown prevents pump damage when fluid tank is empty
  • Ideal for live events, discotheques, theatres, TV and film productions

Features

Master & slave
Master/slave operation allows identical DMX devices to be controlled by a DMX device of the same model and software standard. All the devices are connected by DMX cables in series. The master device is then set to run in standalone mode and the slave devices are set to run in slave mode.

Specifications

Product type
Fog and Wind Machines
Type
Fog Machine
Power
1700 W
Warm-up time
ca. 7 minutes
Fog duration
ca. 40 seconds @ 100% Output / Non-Stop @ 50% Output
Reheating time
60 seconds
Fluid tank capacity
5 l
Fluid Consumption
150 ml/min
DMX input
XLR 3-pin male, XLR 5-pin male
DMX output
XLR 3-pin female, XLR 5-pin female
DMX mode
3-channel
DMX Functions
Interval, Fog Quantity
Standalone Functions
Instant Fog, Interval, Fog Quantity
Controls
Enter, Mode, Value Down, Value Up
Indicators
Canister lighting, LC display, Key illumination
Operating voltage
230 V AC / 50-60 Hz
Operating voltage
230 - 240 V AC / 50 - 60 Hz, Neutrik PowerCON TRUE1
Power consumption
1800 W
Overheating Protection
heating element with thermostat
Power supply connector
Power cord with safety plug (Type E / CEE 7/7), Power Twist Connector
Fuse
T10AL (5 x 20 mm)
Ambient temperature (operating)
5 - 40 °C
Relative Humidity
< 85 %, not condensing
Housing material
Metal, plywood
Cabinet colour
Black
Dimensions with cover (W x H x D)
550 x 265 x 465 mm
Width
465 mm
Height
255 mm
Length
550 mm
Other features
4 x rubber feet, Flightcase with cover, butterfly locks and carrying handle., Power cord, Special canister cap with ventilation valve and suction pipe
Weight
21,763 kg

Description

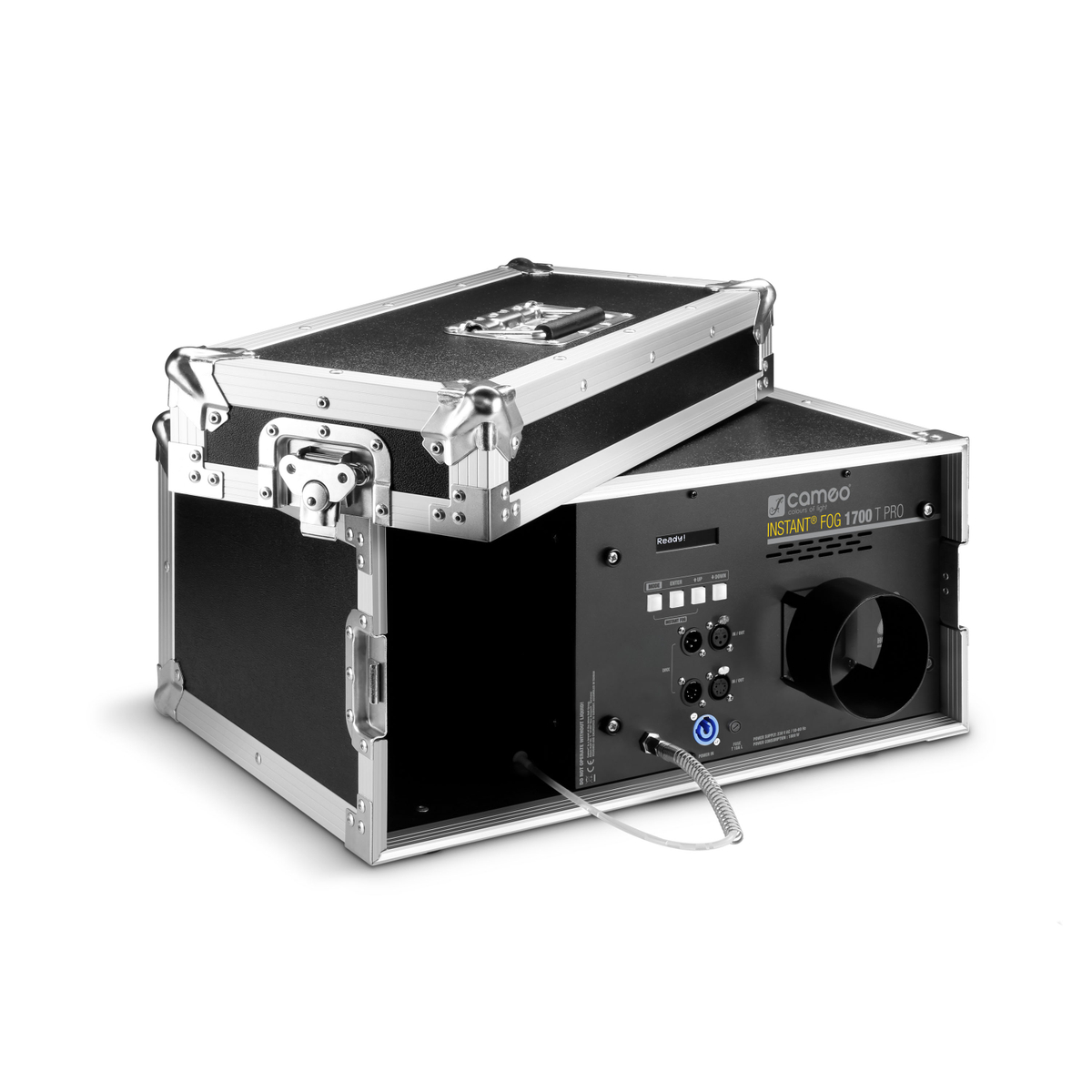

INSTANT FOG 1700 T PRO

Generating spectacular atmospheres and enhancing every light show, the Cameo INSTANT FOG 1700 T PRO is a high output touring fogger built into a rugged road case to meet the rigorous demands of professional applications. It is the perfect choice for live events, discotheques, theatres and on-camera use.

Sporting a powerful 1,700 watt heating element and a massive output of 700 cubic meters per minute, it fills large stages and venues with dense, consistent fog after an initial warm-up time of 7 minutes only. Fluid consumption is a very low 150 ml/min at 100% output, and the integrated fluid canister drawer takes containers up to 5 liter capacity for extended operation between refills.

The INSTANT FOG 1700 T PRO is controlled via DMX in 3-channel mode or the easy-to-read high-contrast LCD display and four buttons. It provides both 3-pin and 5-pin DMX inputs and outputs and integrates a 100 mm hose adapter if you want to duct the fog from the machine to another location. A convenient automatic shutdown feature prevents damage to the pump when the fluid tank runs empty. Generating spectacular atmospheres and enhancing every light show, the INSTANT FOG 1700 T PRO is the perfect choice for live events, discotheques and theatres as well as TV and motion picture applications.
