HYDRABEAM 4000 RGBW

HYDRABEAM 4000 RGBW

Lighting System with 4 Ultra-fast 32 W RGBW Quad LED Moving Heads

Item no.: CLHB4000RGBW

Guarantee: 24 months

EAN: 4049521241376

Sliding scale: 1

Unit: Piece

Packaging unit: 2

Series:HYDRA

Versions:

Item highlights:

  • Lighting system with 4 individually controllable moving heads
  • Ultra fast 540° pan and 270° tilt
  • Powerful 32 W RGBW Quad LEDs
  • Universal mounting options
  • 2 Omega brackets and pole mount adapter included
  • Blue and grey Power Twist plus 3 and 5-Pin DMX connectors
  • Easy daisy chaining and power linking
  • 5 DMX modes, sound activation and automatic operation
  • 16 exciting auto-run programs
  • 4-button LC colour display for intuitive configuration

Features

Music control
In music control mode, the device is controlled via the built-in microphone and can follow the rhythm of the music, for example.

Specifications

Product type
LED Moving Lights
Type
LED Moving Lights
Colour spectrum
RGBW
Number of LEDs
4
Average LED lifetime
50000 hrs.
LED type
32 W
Refresh rate
6000 Hz
Dispersion
2.5 °
DMX input
XLR 3-pin male, XLR 5-pin male
DMX output
XLR 3-pin female, XLR 5-pin female
RDM
No
Protocols
USITT DMX-512
DMX mode
10-channel, 19-channel, 32-channel, 56-channel, 6-channel
DMX Functions
Auto programs, colour change, Dimmer, PAN, Strobe, TILT
Wireless DMX
No
PAN movement
540
TILT movement
270
High Speed Strobe
1 - 20 Hz
Standalone modes
Auto run, sound control
Controls
Enter, LCD display, Mode, Value Down, Value Up
Indicators
colour LC display
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
220 W
How many devices can be connected (110 V)
3
How many devices can be connected (240 V)
5
Fuse
F3AL / 250 V
Power supply connector
Blue Power Twist, male
Power supply connection
Grey Power Twist, female
Max. output current
11 A
Housing material
ABS plastic, Metal
Cabinet colour
Black
Protection class IP
IP20
Cooling
low-noise fan
Illuminance
blue 9600lx @ 1m, green 42400lx @ 1m, red 17900lx @ 1m, white 67200lx @ 1m
Maximum Ambient Temperature
0 - 40° C °C
Width
90 mm
Height
270 mm
Depth
1000 mm
Weight
11,6 kg

Description

HYDRABEAM 4000 RGBW

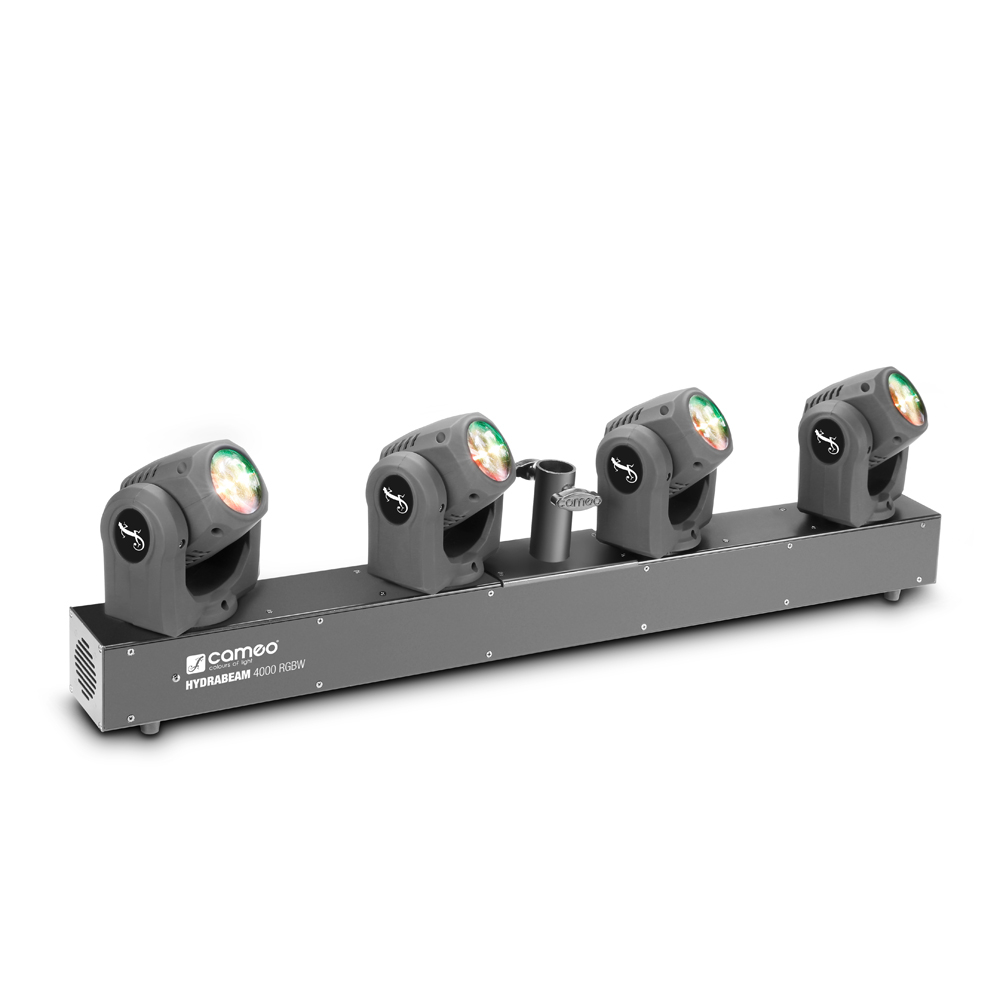

The Cameo Hydrabeam 4000 features four individually controllable moving heads on a 100 cm (3.28 ft.) bar with ultra fast 540° pan and 270° tilt. They are equipped with powerful 32 W quad LEDs for brilliant, uniform colour mixes and project razor sharp beams with an extremely focused 2.5° spread.

The Hydrabeam 4000 provides 5 modes of DMX control, sound activation and automatic operation with 16 exciting built-in programs. In addition, the fixture permits smooth dimming and includes a high-speed strobe function firing a maximum of 20 intense flashes per second.

The compound ABS and metal construction integrates a low-noise fan and a 4-button colour display that permits easy, intuitive configuration and manual operation. 3 and 5-pin DMX inputs and outputs plus the blue and grey Power Twist connectors enable convenient and versatile daisy-chaining. The Hydrabeam 4000 comes with dual Omega brackets and a pole adapter virtually covering all mounting options.
