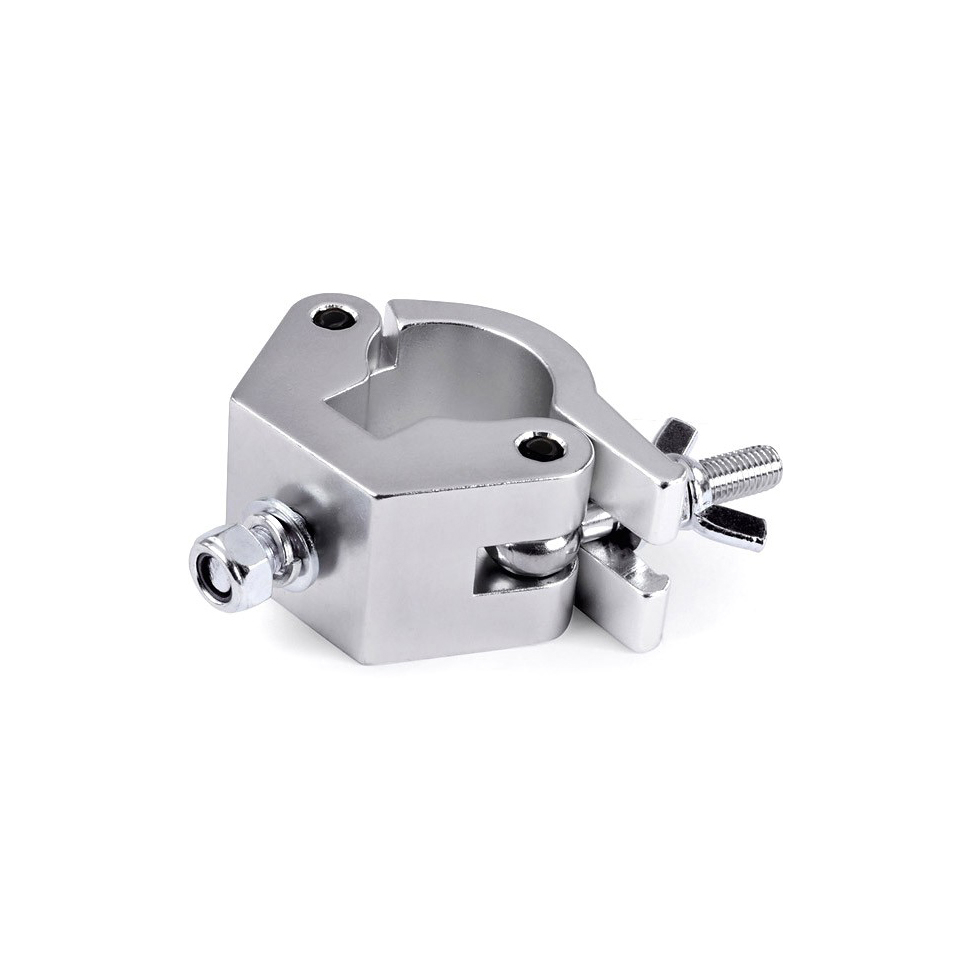

Half Coupler Clamp | silver | wide | WLL 750kg
Width 50mm | Tube diameter 48-51mm
Item no.: RIG400200039
Guarantee: 24 months
EAN: 4250595862446
Sliding scale: 1
Unit: Piece
Packaging unit: 25
Versions:
Item highlights:
- For 48 - 51 mm pipe diameter
- Resilient up to 750 kg (tensile load)
- TUV approved (certificate can be sent on request)
- Clamp width: 51 mm
- Maximum shearing load: 100 kg
- Material: Aluminum 6061 T6
- Incl. device screw M12 silver, retaining ring, grommet and wing nut
- Lock screw M8 zinc coated with grommet and wing nut
- Outer dimensions: 113 x 51 x 81 mm (length x width x height without device screw)
- Weight: 0,70 kg
Specifications
Mounting
Clamp
Maximum load
750 kg
Maximum shear load
100 kg
Material
Aluminium
Locking
M12
Device mounting
M12
Colour
Silver
Clamp range
48 - 51 mm
Clamp width
50 mm
Width
50 mm
Height
81 mm
Depth
113 mm
Weight
0.7 kg
