H2 FC

H2 FC

DMX-controllable House Light with Full-Colour LED

Item no.: CLH2FC

Guarantee: 60 months

EAN: 4049521444258

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:H-Series

Versions:

Item highlights:

  • 180 W RGBAL LED with 7,400 lm total output
  • Colour temperature adjustable from warm white to cold white
  • Adjustable beam angle from 21 ° to 64 ° using exchangeable lenses
  • Completely silent operation thanks to convection cooling without fans
  • Discrete installation flush with the ceiling possible thanks to optional installation kit
  • Control via DMX and W-DMX™
  • 5-pin XLR and terminal block connectors for simple integration into any environment
  • 16-bit technology for dimming
  • Combines form and function in a minimalistic design
  • Flicker-free operation thanks to selectable PWM frequencies up to 25 kHz
  • Mounting bracket for truss or wall mounting included

Features

This product is ETL certified.

Specifications

Product type
LED Lighting
Colour spectrum
RGBAL
Color temperature
adjustable K
Number of LEDs
1
Average LED lifetime
30000 hours
LED type
180 W COB
LED PWM Frequency
800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12 kHz, 25 kHz - adjustable
Dispersion
20 °, 25 °, 60 °
DMX input
Terminal block, RJ45
DMX output
Terminal block, RJ45
DMX Functions
Colour presets, Dimmer, Dimmer Fine, Colour temperature, Colour shade, Hue Saturation, Device Settings, RGBAL, Strobe
Control
DMX512, RDM, W-DMX
Standalone Functions
Static
Controls
Down, Enter, menu, Up
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
165 W
Luminous flux
7400 lm
Colour rendering index (Ra)
>90
Power connector
Blue Power Twist, Terminal block
Ambient temperature (operating)
0 - 40 °C
Relative Humidity
< 80 %, not condensing
Cabinet colour
Black
Housing material
Metal
Housing Cooling
Convection
Recommended cable for operation as pendant lamp
H07RN-F 3G1.5
Width
200 mm
Length
380 mm
Weight
8,3 kg
Accessories (included)
1 x omega mounting, 2 x exchange lenses
Optional accessories
Ceiling installation kit, Half and full glare shield, Wall mounting bracket

Description

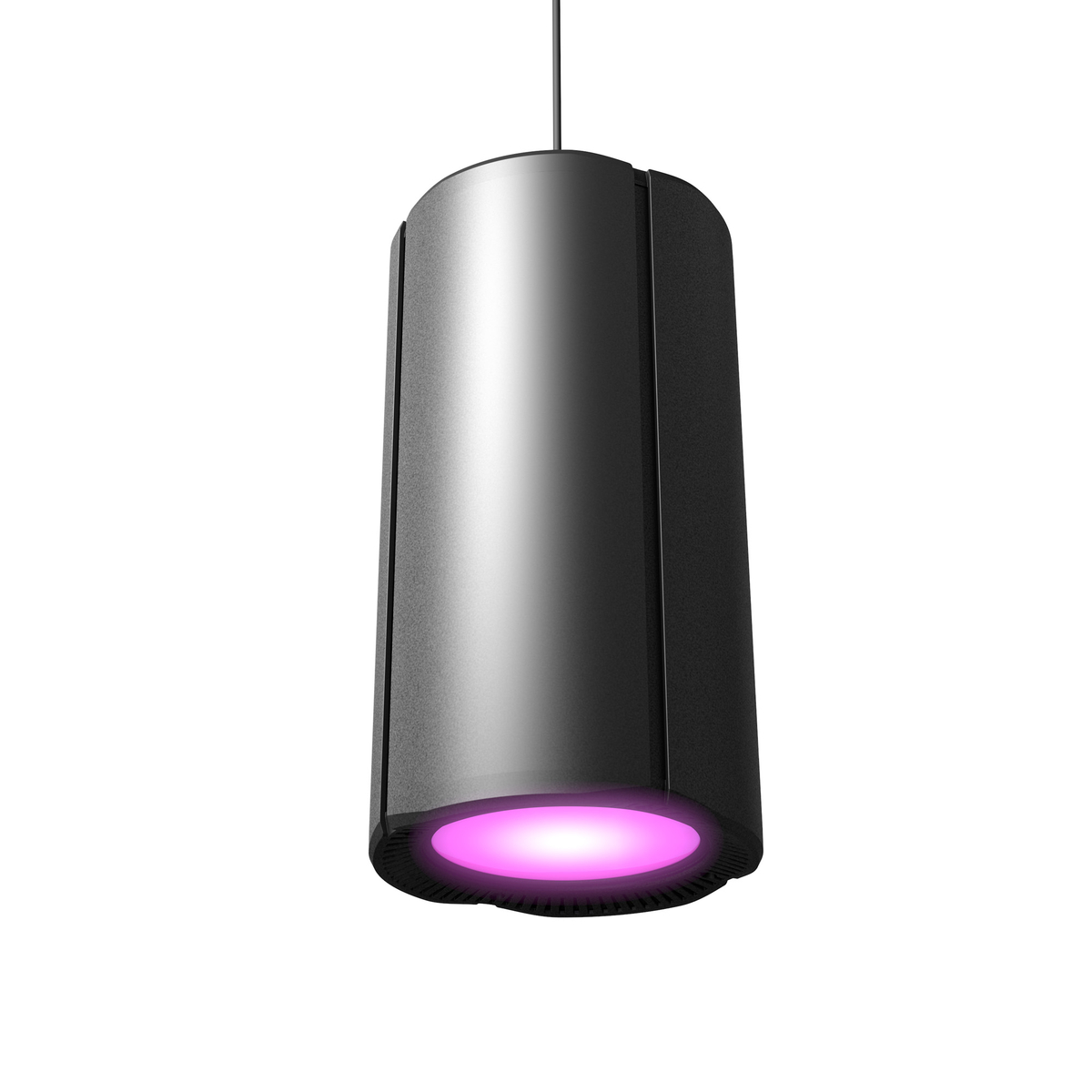

H2 FC

Discerning interior designers and lighting engineers particularly appreciate the CAMEO H2 FC house light. Featuring 5-pin XLR and terminal block connectors, this house light can be easily integrated into any hall lighting or stage equipment to discretely fulfil its function in a minimalistic design. Exchangeable lenses allow the beam angle to be adjusted between 21° and 64°. It can also be mounted on trusses, on walls and even on ceilings. The optional installation kit means that it can also be discretely installed flush with the ceiling.

This intelligent house light fully exploits the potential of LED technology to discerningly flood theatres, restaurants, event venues and places of worship with almost any selectable colour temperature of white. Perfectly suited to video recording, this pendant light with a CRI of over 90 has flicker-free operation thanks to selectable PWM frequencies of up to 25 kHz. This allows concerts, theatre performances, conventions and events to be recorded for posterity in high quality. The 16-bit technology enables high colour resolution with smooth, stepless dimming. As well as this, DMX control, or wireless control via W-DMX™, allows especially flexible and refined operation. At the same time, convection cooling with noiseless operation offers outstanding performance properties in compact housing.
