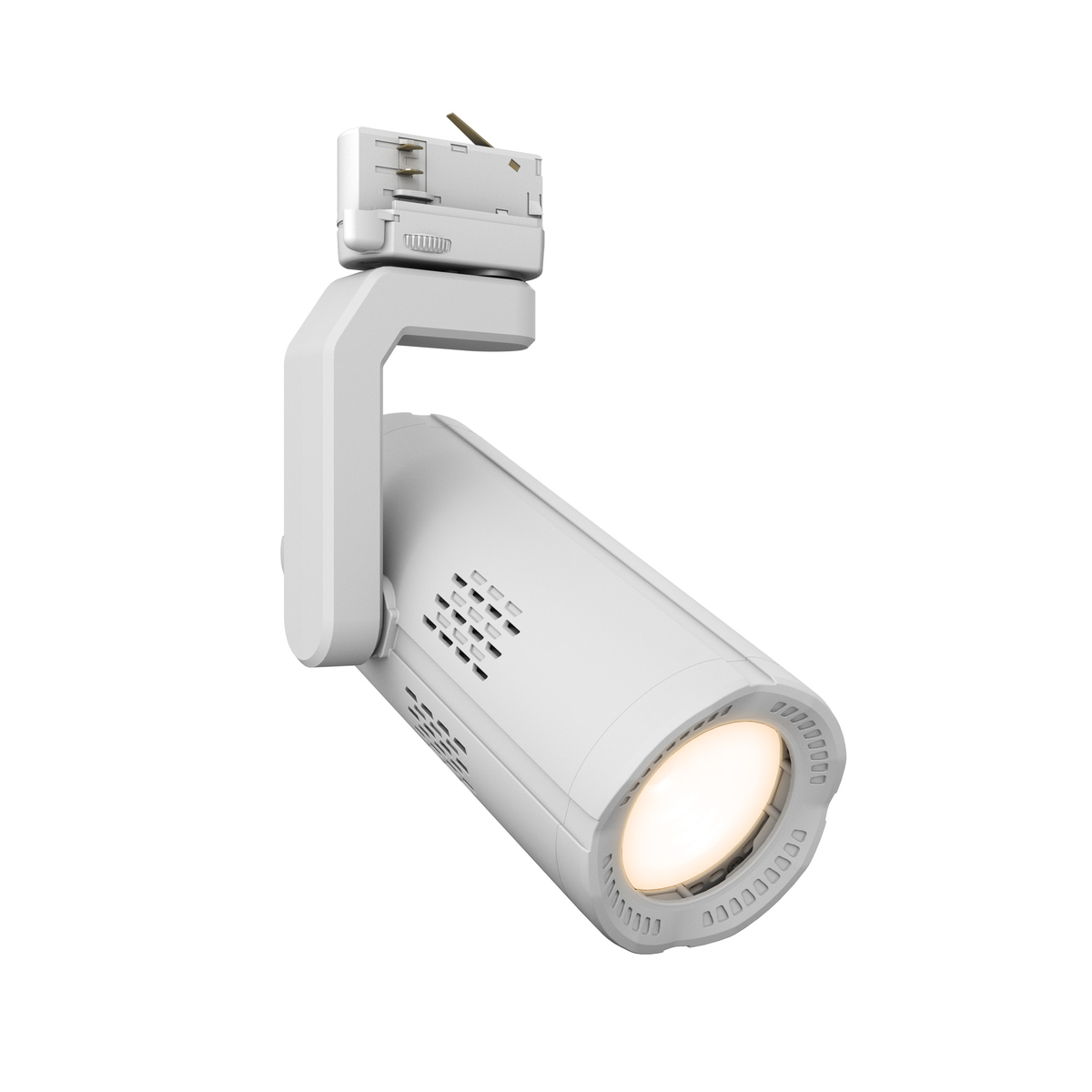

G4 TW

G4 TW

Tracklight with Tunable White LED

Item no.: CLG4TWWH

Guarantee: 60 months

EAN: 4049521725340

Sliding scale: 280

Unit: Piece

Packaging unit: 6

Series:G-Series

Versions:

Item highlights:

  • Tracklight with 40 W Tunable-White COB-LED
  • Colour temperature: 2,700 K - 6,500 K
  • 560 lm Luminous flux
  • Use on commercially available busbar systems
  • Applications: Museum, retail, gastronomy and many more.
  • Beam angle flexibly adjustable via magnetic filters
  • Optional magnetic filters (CTO, CTB, Honeycomb)
  • FC & TW models compatible with DMX, W-DMX & RDM
  • Selectable pulse width modulation (up to 25 kHz) for flicker-free operation
  • Passive cooling for virtually silent operation

Features

This product is ETL certified.

Specifications

Product type
LED Lighting
Type
Installation spotlights
Colour spectrum
Tunable White
Color temperature
2700 - 6500 K
Number of LEDs
1
Average LED lifetime
30000 hours
LED type
2in1 chip
LED PWM Frequency
800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12 kHz, 25 kHz - adjustable
Dispersion
5 °
DMX input
RJ45
DMX output
RJ45
DMX Functions
Cool White, Dimmer, Dimmer Fine, Colour temperature, Device Settings, Strobe, Warm White
Control
DMX512, RDM, W-DMX
Standalone Functions
Static
Controls
External Remote Control, W-DMX Button
RDP (Material Group A)
0.20 @ 2700 K, 0.50 @ 6500 K
RDP (Material Group B)
0.61 @ 2700 K, 0.65 @ 6500 K
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
40 W
Luminous flux
560 lm
Colour rendering index (Ra)
>97
Power connector
Rail adapter (selectable phase)
Compatible rails
Global Track
Ambient temperature (operating)
0 - 40 °C
Relative Humidity
< 80 %, not condensing
Cabinet colour
white
Housing material
Metal
Housing Cooling
Convection
Width
80 mm
Length
195 mm
Weight
1,3 kg
Optional accessories
CTB filter, CTO filter, Honey comb grid, Interchangeable lenses

Description

G4 TW

Whether in a museum, a shop or a restaurant - almost identical basic requirements apply to the lighting of commercial areas: professional lighting quality for the natural illumination of rooms, objects and people, high flexibility in application and maximum cost efficiency in permanent use. With the G-series tracklights, Cameo offers lighting and room planners, designers and installation service providers versatile tracklights for use in standard track systems. The discreet and versatile LED luminaires come in four different versions: Neutral White, Tungsten, Tunable White & Full-Colour.

The G4 TW Tracklight is equipped with a 40 Watt Tunable White COB LED that produces a luminous flux of 560 lumens. The colour temperature of the G4 TW can be variably adjusted in the range from 2,700 K to 6,500 K. Magnetic filters allow the 5° beam angle to be flexibly adjusted without the use of tools. Numerous optional interchangeable lenses for narrower and wider beam angles as well as CTO, CTB and honeycomb filters are available. In addition, the G4 TW allows variable adjustment of the PWM frequency up to 25 kHz for flicker-free operation.

The Cameo G-Series Tracklightsare designed for use on standard track systems and allow power to be transferred via the track adapter depending on the manufacturer's system used. In this way, the luminaires can be flexibly adapted to changing room designs - from temporary exhibitions in a museum hall to changing store concepts in the retail sector to variable table configurations in gastronomy.

The FC & TW models of the Cameo G-series also feature integrated protocols such as DMX512, W-DMX for wireless control and RDM for convenient configuration and monitoring of the tracklights. Thanks to passive convection cooling, the G4 TW operates almost silently and is also suitable for particularly noise-sensitive environments.

All Cameo G-Series tracklights are available in black and white housing colour.
