G4 TW

G4 TW

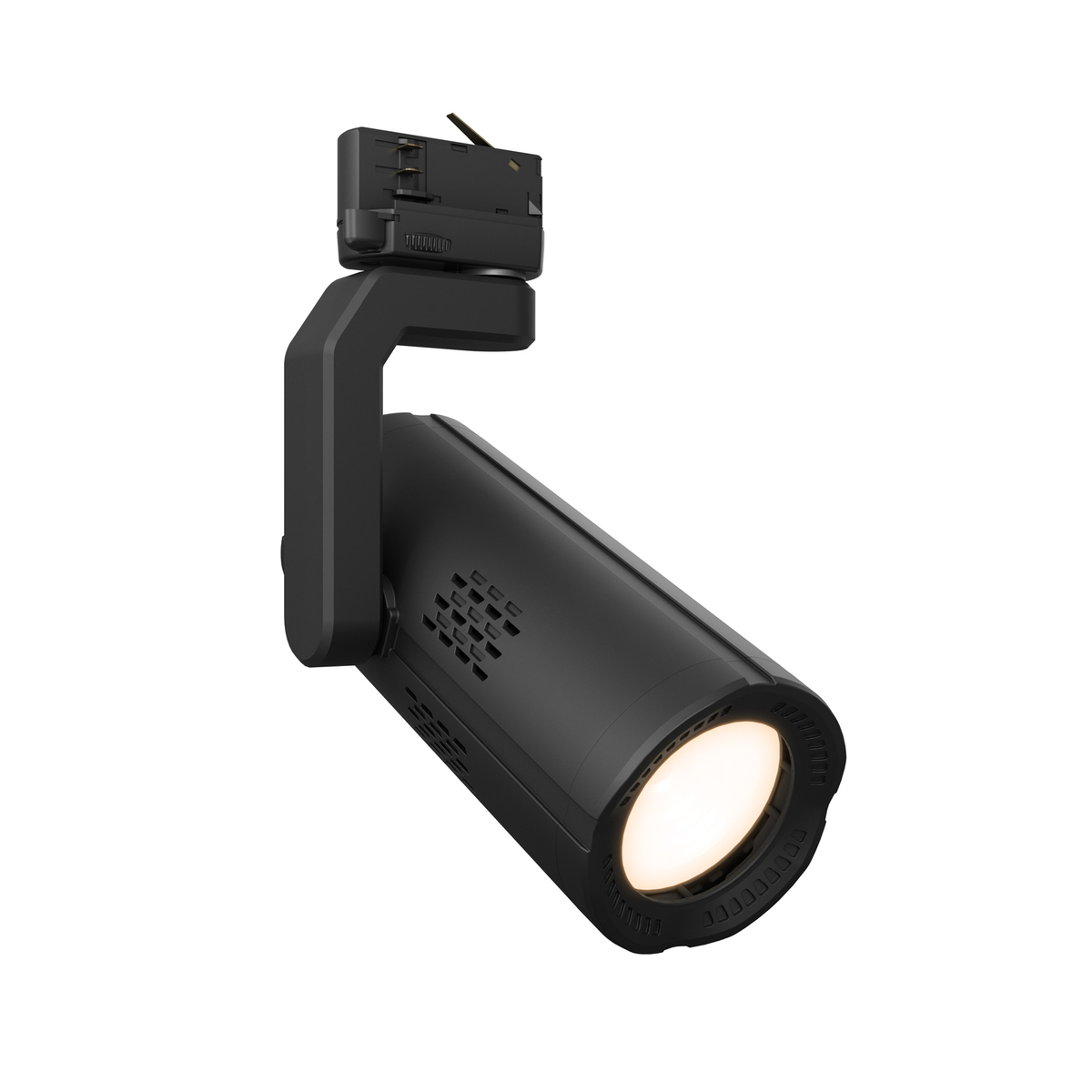

Tracklight with Tunable White LED

Item no.: CLG4TW

Guarantee: 60 months

EAN: 4049521725302

Sliding scale: 1

Unit: Piece

Packaging unit: 6

Series:G-Series

Versions:

Item highlights:

  • Tracklight with 40 W Tunable-White COB-LED
  • Colour temperature: 2,700 K - 6,500 K
  • 560 lm Luminous flux
  • Use on commercially available busbar systems
  • Applications: Museum, retail, gastronomy and many more.
  • Beam angle flexibly adjustable via magnetic filters
  • Optional magnetic filters (CTO, CTB, Honeycomb)
  • FC & TW models compatible with DMX, W-DMX & RDM
  • Selectable pulse width modulation (up to 25 kHz) for flicker-free operation
  • Passive cooling for virtually silent operation

Features

This product is ETL certified.

Specifications

LED data
40 W Tunable white LED
Luminous flux
560 lm
Beam/Field angle
Beam: 5°
LED PWM frequency
800 Hz, 1,200 Hz, 2,000 Hz, 3,600 Hz, 12 kHz, 25 kHz
Correlated colour temperature (CCT)
2,700 - 6,500 K
Colour rendering index (CRI)
> 97
Controller protocols
DMX512, RDM
Stand alone operating modes
Static
Data in connector
RJ-45 socket
Data out connector
RJ-45 socket
Operation voltage
100 V AC - 240 V AC / 50 - 60 Hz
Rated power
40 W
Inrush current
45 A
Cabinet material
Metal
Colour
Black
Cooling system
Convection cooling
Protection class
IP20
Ambient temperature
0 - 40 °C
Maximum air humidity (non-condensing)
80 %
Width
80 mm
Depth
195 mm
Weight
1.3 kg
Required Accessories
CTB-Filter, CTO-Filter, Honeycomb, Wechsellinsen

Description

G4 TW

Whether in a museum, a shop or a restaurant - almost identical basic requirements apply to the lighting of commercial areas: professional lighting quality for the natural illumination of rooms, objects and people, high flexibility in application and maximum cost efficiency in permanent use. With the G-series tracklights, Cameo offers lighting and room planners, designers and installation service providers versatile tracklights for use in standard track systems. The discreet and versatile LED luminaires come in four different versions: Neutral White, Tungsten, Tunable White & Full-Colour.

The G4 TW Tracklight is equipped with a 40 Watt Tunable White COB LED that produces a luminous flux of 560 lumens. The colour temperature of the G4 TW can be variably adjusted in the range from 2,700 K to 6,500 K. Magnetic filters allow the 5° beam angle to be flexibly adjusted without the use of tools. Numerous optional interchangeable lenses for narrower and wider beam angles as well as CTO, CTB and honeycomb filters are available. In addition, the G4 TW allows variable adjustment of the PWM frequency up to 25 kHz for flicker-free operation.

The Cameo G-Series Tracklightsare designed for use on standard track systems and allow power to be transferred via the track adapter depending on the manufacturer's system used. In this way, the luminaires can be flexibly adapted to changing room designs - from temporary exhibitions in a museum hall to changing store concepts in the retail sector to variable table configurations in gastronomy.

The FC & TW models of the Cameo G-series also feature integrated protocols such as DMX512, W-DMX for wireless control and RDM for convenient configuration and monitoring of the tracklights. Thanks to passive convection cooling, the G4 TW operates almost silently and is also suitable for particularly noise-sensitive environments.

All Cameo G-Series tracklights are available in black and white housing colour.
