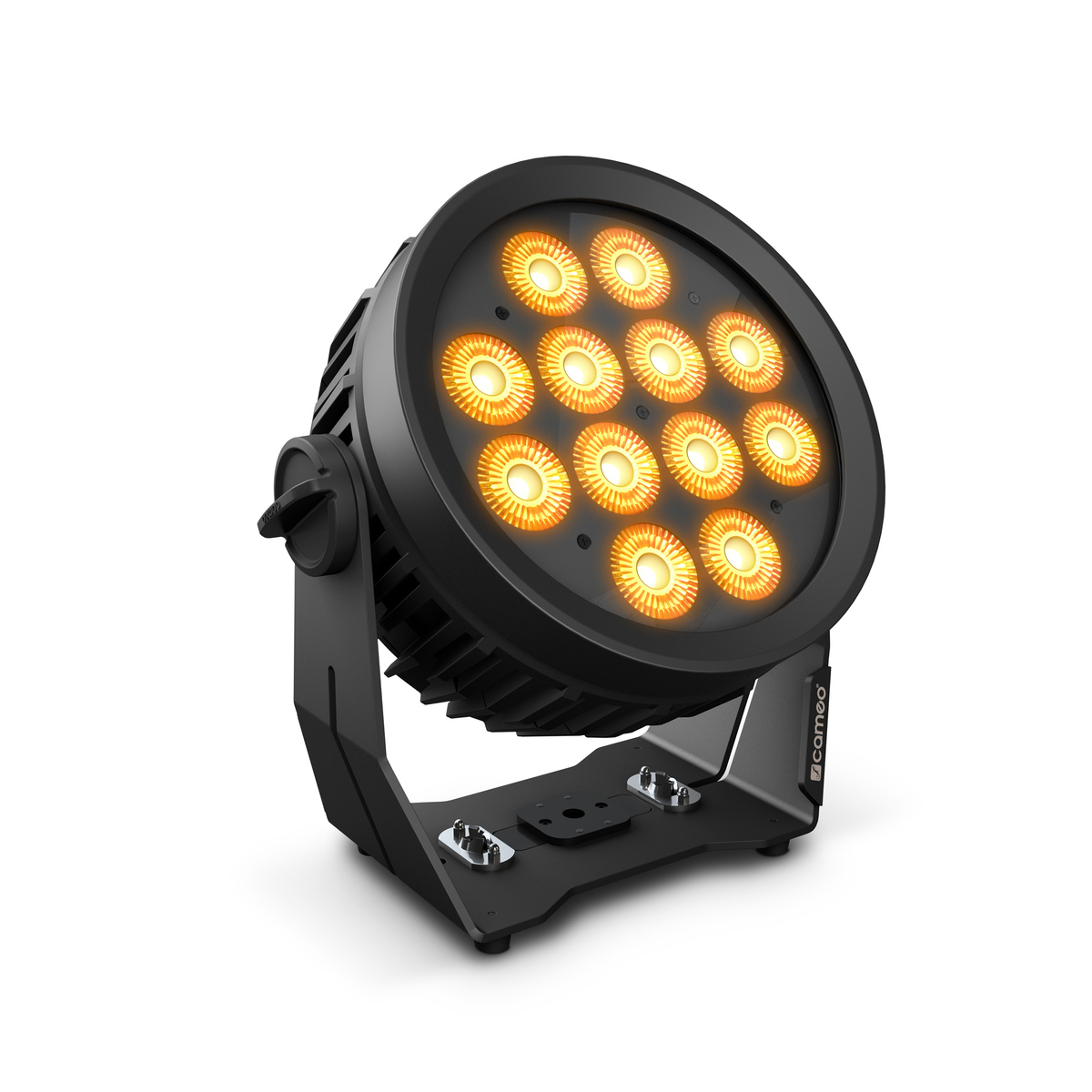

FLAT PRO® 12 G2

FLAT PRO® 12 G2

12 x 10 W RGBWA LED Outdoor Spotlight

Item no.: CLPFLATPRO12G2

Guarantee: 24 months

EAN: 4049521479908

Sliding scale: 1

Unit: Piece

Packaging unit: 2

Series:FLAT PRO® Series

Versions:

Item highlights:

  • 12 x 10-watt 5-in-1 RGBWA LEDs with 4,300 lm luminous flux for warm full and pastel colours
  • IP-65 certified for outdoor use
  • Noiseless & flicker-free operation for theatres, broadcasting & film
  • Professional Neutrik True1-compatible inputs/outputs & IP65 DMX input/output sockets
  • Robust, flat and compact metal housing
  • Patented EZChase® DMX Delay: running lights effect without DMX control
  • OLED display with touch-sensitive keys
  • Calibrated LEDs
  • Improved design with built-in carry grip
  • Optionally available: SPIN 16 spigot, Omega bracket

Features

RGBWA
Additional white and amber-coloured LEDs expand the GB spectrum, creating more contrast as well as clearer colour boundaries. What is more, they improve the creation of white and pastel colours. The amber-coloured LEDs create more powerful and warmer colours with greater saturation.

Specifications

LED data
12 x 10 W RGBWA LED
Luminous flux
4,300 lm
Beam/Field angle
Beam: 30°
LED PWM frequency
650 Hz, 1,530 Hz, 3,600 Hz, 12 kHz, 25 kHz
Controller protocols
DMX512, RDM
Number of DMX control modes
7
Stand alone operating modes
Static, Endless loop
Data in connector
XLR 3-pole male
Data out connector
XLR 3-pole female
Operation voltage
100 V AC - 240 V AC / 50 - 60 Hz
Rated power
110 W
Cabinet material
Metal
Colour
Black
Cooling system
Convection cooling
Protection class
IP65
Ambient temperature
-15 - 40 °C
Maximum air humidity (non-condensing)
80 %
Width
292 mm
Height
300 mm
Depth
156 mm
Weight
6 kg
Product dimensions
292 x 300 x 156 mm
Required Accessories
Netzkabel

Description

FLAT PRO® 12 G2

Set up, connect, finished! The FLAT PRO® 12 G2 LED PAR spotlight offers you a professional outdoor allrounder that saves you a lot of work under adverse conditions: whether as a calibrated and compact IP65 uplight fixed to a building facade, as a noiseless light source in theatres or as an effects light for live shows.

Its patented EZChase® DMX delay feature allows you to create running lights effects without an external controller. This saves on DMX channels as well as time and patience. You can also rely on it to always provide consistent ambient lighting. Regardless of how many FLAT PRO G2s you connect together, the integrated calibration chip ensures that full and pastel RGBWA colour spectrum colours can be used without any deviations.

The FLAT PRO® 12 G2 comprises 12 x 10-watt 5-in-1 RGBWA LEDs for an impressive luminous flux of 4,300 lm. Thanks to its adjustable PWM frequency (650 Hz to 25 kHz), there's no need to worry about flickering LEDs when dimming for theatre, TV studios, film sets or light festivals.

An outdoor IP65 flat PAR spotlight is only as good as its handling. That's why we've optimised many points of the series' design. The handle is inconspicuously integrated into the compact metal housing, while the OLED display with touch-sensitive keys delivers fast and simple operation. Every seconds counts when working in wind and rain. The redesigned convection cooling and the professional connection options with Neutrik True-compatible inputs and outputs and 3-pin IP65 DMX sockets all offer the highest possible reliability.

For even greater installation flexibility, the FLAT PRO® 12 G2 can also be optionally retrofitted with a fold-out 16-mm TV spigot that uses patented SPIN16® technology.

The versatile FLAT PRO® 12 G2 IP65 LED PAR spotlight is ideal for all lumen beings looking for an uncompromising way to express their passion for lighting in the great outdoors.
