F4 T PO IP

VIDEO

F4 T PO IP

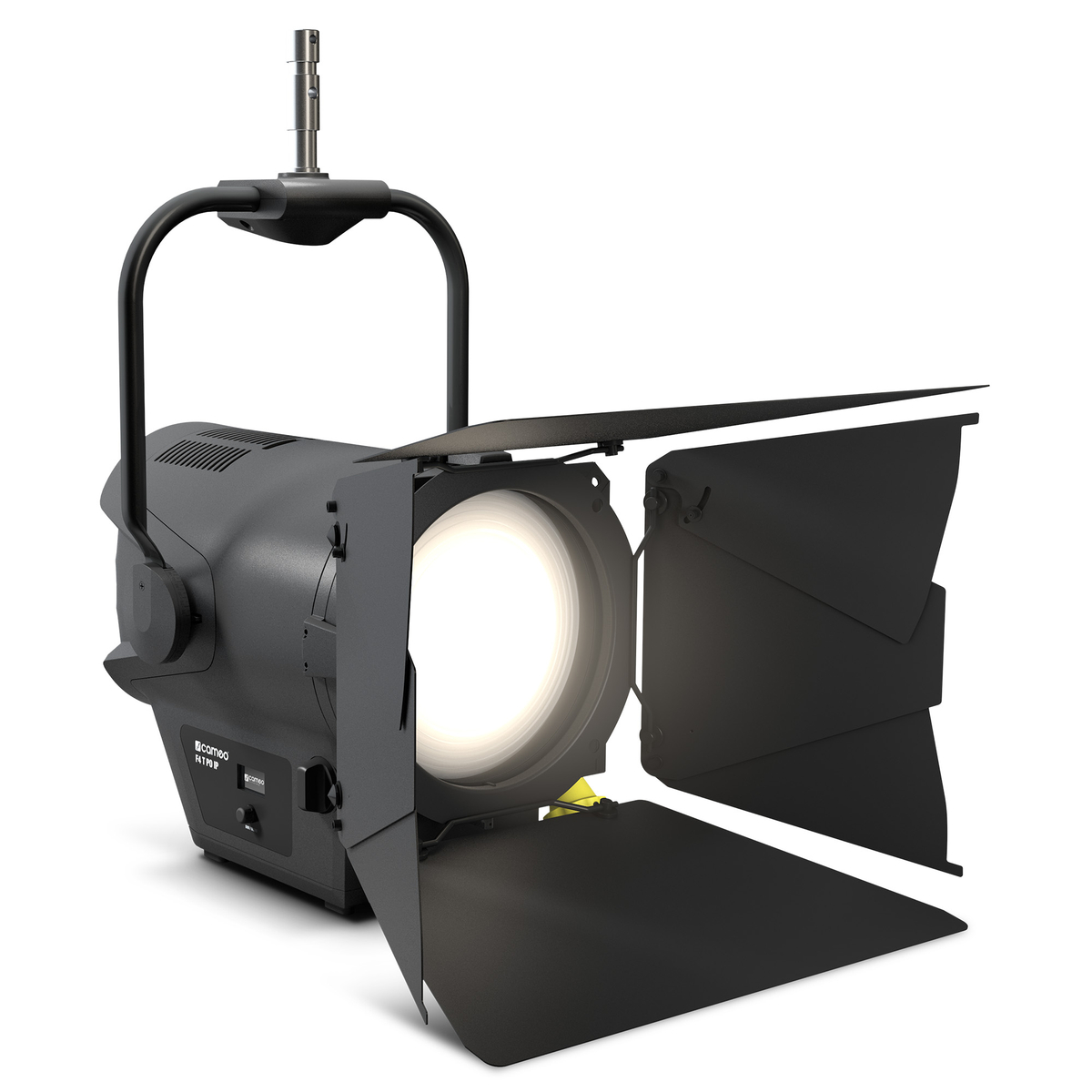

Pole-Operated IP65 Fresnel Spotlight with Tungsten LED

Item no.: CLF4TPOIP

Guarantee: 24 months

EAN: 4049521477300

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:F-Series

Versions:

Questions about the item?

Item highlights:

Fresnel spotlight with tungsten LED, 3,200 K
24,000 lm luminous flux replaces conventional 2 kW halogen Fresnel spotlights
IP65-certified for permanent outdoor use
Pole-operated for efficient use in different environments (TV studios, etc.)
Natural color reproduction (CRI: 95, TLCI: 96)
Continuous zoom range from 14° to 43°
Flicker-free camera images thanks to selectable pulse width modulation frequencies up to 25 kHz
Selectable 16-bit dimmer curves for smooth dimming
8-way barn door and color filter frame included
Highly efficient cooling system and silent mode for noise-free operation

Features

Warm white
According to the colour temperature scale in Kelvin (K), warm white is a soft, lightly yellowish light with a natural character that is pleasant to the human eye.

RDM
This device has full RDM capability. The RDM protocol supplements the DMX protocol and enables bidirectional communication via a standard DMX network. It simplifies configuration, administration and monitoring of RDM devices connected to an RDM controller.

The high-frequency control of the LEDs while dimming ensures flicker-free operation, including for filming purposes.

Protection class IP65
The IP code of the protection class indicates how well the sensitive parts of the device are protected from foreign bodies and water entering. This device is fully protected from the penetration of dust and water jets.

This product is ETL certified.

Specifications

LED data

520 W Tunable white LED

Luminous flux

26000 lm

Front lens diameter

250 mm

Beam/Field angle

Beam: 14° / Field: 24°

LED PWM frequency

600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25 kHz

Colour rendering index (CRI)

> 95

Stand alone operating modes

Master/slave, Static

Data in connector

XLR 5-pole male

Data out connector

XLR 5-pole female

Operation voltage

100 V AC - 240 V AC / 50 - 60 Hz

Rated power

460 W

Cabinet material

Aluminum continuous casting

Colour

Black

Cooling system

Heat pipes, Temperature controlled fan cooling

Protection class

IP65

Ambient temperature

-15 °C - 45 °C

Width

433 mm

Height

420 mm

Depth

531 mm

Weight

25 kg

Description

F4 T PO IP

It can be challenging with ever-changing weather conditions to do concerts or film & TV productions outdoors. In order to still rely on the warm light of a zoomable Fresnel spotlight here, there's the dust- and splash water-protected, IP65-certified F4 T PO IP spotlight by Cameo. It is pole-operated making it easy to adjust from the ground.

The F4 T PO IP from the Cameo F Series is a natural light specialist with a CRI value of 95 and a TLCI of 96. The precise 250 mm Fresnel glass lens with a continuous zoom lets you keep control over the 26,000 lm warm white light, whether you use it to shine the spotlight right down on performers, speakers or objects or apply it as area lighting for entire scenes and surfaces.

A low-maintenance, pole-operated LED tungsten spotlight with warm light reproduction, which remains fully usable even outdoors, thanks to IP65 - a real work relief for fast and natural illumination.
