F4 D
Professional Fresnel Spotlight with Daylight LED
Item no.: CLF4D
Guarantee: 24 months
EAN: 4049521415708
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:F-Series
Versions:
Item highlights:
- LED Fresnel spotlight with daylight LED and 34,000 lm total light output
- Natural colour reproduction, CRI 96, TLCI > 94
- Continuous zoom for beam angles from 12° to 40°
- 16-bit technology for high-resolution dimming
- Four selectable dimmer curves with adjustable response
- Highly efficient heatpipe cooling with temperature-controlled fan
- RDM-capable, selectable pulse width modulation frequencies up to 25 kHz
- Flicker-free and silent operation, ideal for TV, film and theatre
- Quicklight function to save time when setting lights
- 8-way barndoor and colour filter frames included
Features
COB LED technology
The current “chip-on-board” multi-LEDs allow dense, large-area light sources to be created that are characterised by their high luminosity and wide range of even colours. Cold white According to the colour temperature scale in Kelvin (K), “cold white” is a very bright, clear light in the colour temperature range between 5,000 and 10,000 K; it is slightly artificial in character and goes well with rich primary colours.
Specifications
Description
F4 D

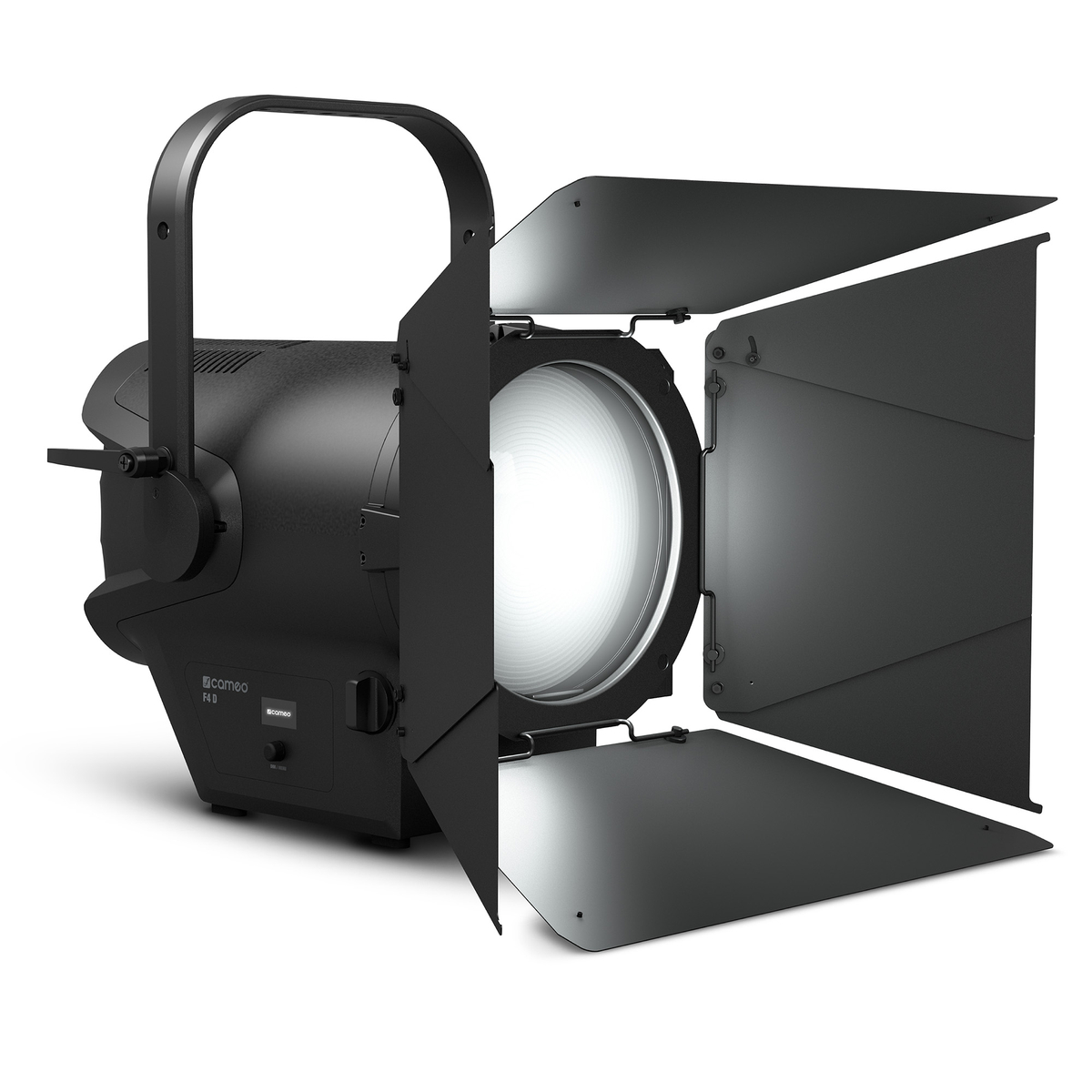

Natural white daylight in precise reproduction quality: The CAMEO F4 D is a professional Fresnel spotlight with the latest LED technology. It's an outstanding replacement for conventional halogen Fresnel spotlights that also leads to significant energy savings. The 250 mm high-quality lens is flooded with a powerful luminous flux of 34,000 lm. The RDM-capable spotlight creates a soft-edged beam of light with a continuously adjustable beam angle of 12° to 40° (beam angle) or 24° to 47° (field angle). Its 520-watt daylight LED has a colour temperature of 5,600 K and a service life of 50,000 hours. Its extremely high colour rendering index of 96 reproduces pure and natural colours.
The F4 D has six DMX control modes, a fast strobe function and 16-bit dimmer curves with adjustable response. The unique quicklight function makes setting up the spotlight much easier. Simply remove the DMX signal for a moment, increase the lighting brightness via the push encoder and adjust the spotlight. Six selectable pulse width modulation frequencies of up to 25 kHz ensure flicker-free operation. The highly efficient heatpipe cooling combines with a temperature-controlled fan to ensure optimal operation. The robust, die-cast aluminium housing is equipped with a push encoder and OLED display for easy configuration of the spotlight. 5-pin DMX connections allow simple daisy-chaining. 8-way barndoor, a gel frame and mains cable are included.
