F2 T

F2 T

LED Tungsten Fresnel Spot Light

Item no.: CLF2T

Guarantee: 24 months

EAN: 4049521304347

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:F-Series

Versions:

Item highlights:

  • Tungsten LED Fresnel with 3,200 K colour temperature and 12,500 lm output
  • Perfect replacement for conventional 1 kW Fresnels
  • Faithful colour reproduction, CRI rating of 96, TLCI of 97
  • Continuously variable zoom for 15° to 40° beam spread
  • 16-bit dimming with 4 selectable curves and adjustable response
  • Super efficient heat pipe cooling and temperature controlled fan for optimum operation
  • RDM enabled
  • Selectable PWM frequencies up to 25 kHz
  • Flicker-free and silent operation, ideal for TV, film and theatre applications
  • Includes 8-way barn door and gel frame

Features

This product is ETL certified.

Specifications

LED data
240 W Tunable white LED
Luminous flux
12,500 lm
Beam/Field angle
Beam: 16° / Field: 28°
LED PWM frequency
800 Hz, 1,200 Hz, 2,000 Hz, 3,600 Hz, 12 kHz, 25 kHz
Correlated colour temperature (CCT)
3,200 K
Controller protocols
DMX512, RDM
Number of DMX control modes
6
Stand alone operating modes
Master/slave, Static
Data in connector
XLR 5-pole male
Data out connector
XLR 5-pole female
Operation voltage
100 V AC - 240 V AC / 50 - 60 Hz
Rated power
210 W
Mains fuse
T3.15A/250 V
Cabinet material
Aluminum continuous casting
Colour
Black
Cooling system
Heat pipes, Temperature controlled fan cooling
Protection class
IP20
Ambient temperature
-15 - 45 °C
Maximum air humidity (non-condensing)
80 %
Width
270 mm
Height
292 mm
Depth
322 mm
Weight
9 kg

Description

F2 T

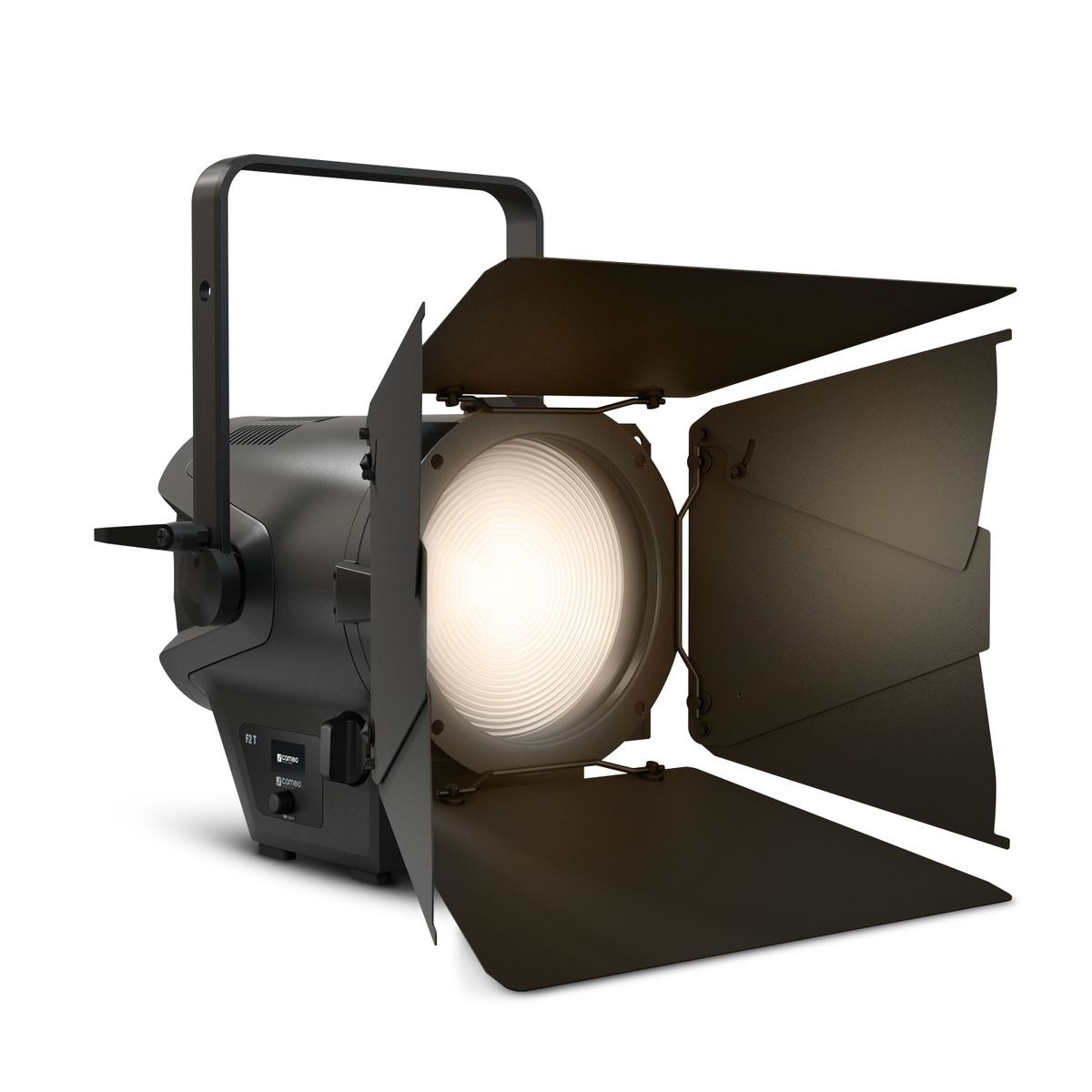

The Cameo F2 T is a professional Fresnel light with high-quality 200 mm lens and huge 12,500 lm output delivering a soft-edged beam with continuously variable 15° to 40° spread. A perfect and energy saving replacement for conventional 1 kW Fresnels, the RDM-enabled spot light is powered by a single 240 watt warm white LED with 50,000 h life expectancy. It has a colour temperature of 3,200 K and super high CRI of 97 showing colours faithfully and realistically.

The F2 T provides 6 modes of DMX control, a high-speed strobe function and smooth 16-bit dimming with a choice of 4 curves and adjustable response. It offers a selection of 6 PWM frequencies up to 25 kHz for flicker-free performance, and the super efficient heat pipe cooling and temperature controlled fan ensure optimum operation. The Fresnel's rugged die-cast aluminium housing features a rotary encoder and OLED display for easy configuration plus 5-pin DMX and Power Twist inputs and outputs for convenient daisy- chaining. The fixture comes with an 8-way barn door, gel frame and power cord.
