F2 D PO

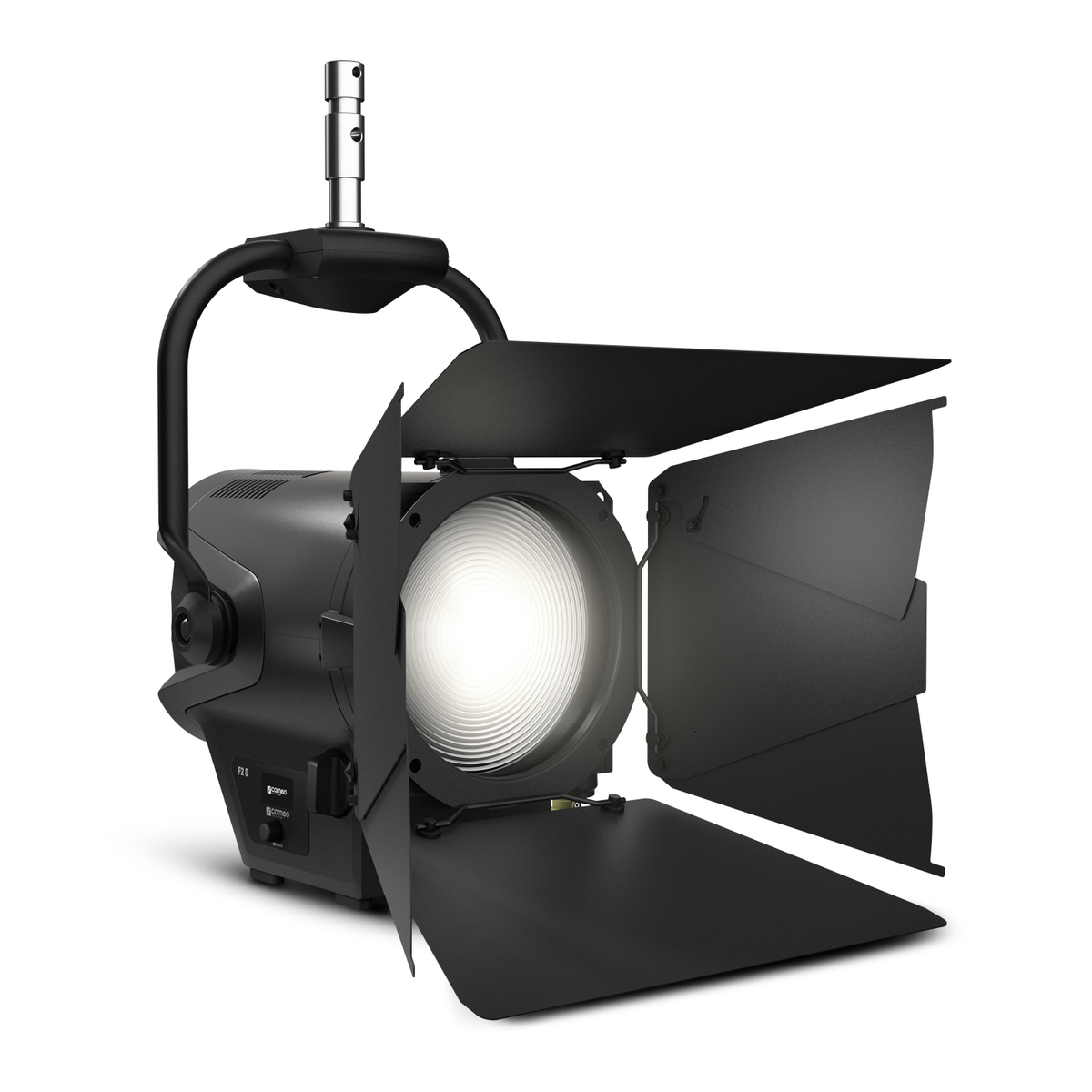

Pole-operated Fresnel Spotlight with Daylight LED

Item no.: CLF2DPO

Guarantee: 24 months

EAN: 4049521412936

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:F-Series

Versions:

Item highlights:

  • LED Fresnel spotlight with 5,400-K daylight LED and 15,000 lm luminous flux
  • Easy to operate from the floor with a pole for pan, tilt and zoom
  • Perfect replacement for traditional 1-kW Fresnel spotlights
  • Natural colour reproduction CRI 96, TLCI 97
  • Continuous zoom for beam angles from 15° to 40°
  • Four selectable 16-bit dimmer curves with adjustable response
  • Optimised operation via high efficiency heatpipe cooling and temperature-controlled fan
  • RDM enabled
  • Selectable pulse width modulation frequencies up to 25 kHz
  • Flicker-free and silent operation, ideal for TV, film and theatre
  • 8-way barn door and gel frames included

Features

Daylight colour temperature

Specifications

Product type
LED Fresnel Spotlight
Type
Theater Fresnel
Colour spectrum
Daylight
Number of LEDs
1
LED type
240 W (ca. 50,000 Operating Hours)
LED PWM Frequency
Adjustable: 800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12000 Hz, 25000
Dispersion
Beam Angle: 15 ° - 40, Field Angle: 28 ° - 60
Lens
200 mm Fresnel
DMX input
5-Pol
DMX output
5-Pol
DMX mode
1-channel, 4-channel, 3-channel, 2-channel 2, 2-channel 1
DMX Functions
Dimmer, Strobe, Dimmer Fine, Dimmer Curve, Device Settings
Standalone modes
Master / Slave mode, Static
Controls
Encoder
Indicators
OLED Display
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
210 W
Power Factor
0.94 / 240, 0.99 / 120
Power supply connector
TRUE1 Compatible Power I/O Socket
Housing material
Die-cast aluminium
Cabinet colour
Black
Protection class IP
IP20
Cooling
Combination of heat pipe and temperature controlled fan
Luminous flux
15000 lm
Efficiency
63 lm/W
Color temperature
5400
Operating Temperature
-15 °C - 45 °C
Width
357 mm
Height
573 mm
Length
322 mm
Accessories (included)
gel frame, 8-way barndoor, Power cord

Description

F2 D PO

On the spot - Cameo F2 D PO as professional Fresnel spotlight with pole operation capacity

Do you prefer your RDM-enabled spotlight to give off a soft-edged beam of light with a continuously adjustable angle of 15° to 40°? Looking for an energy-saving replacement for conventional 1 kW Fresnel models? If so, you should take a look at the Cameo F2 D PO: the professional Fresnel spotlight has a 200 mm quality lens and a high luminous flux of 15,000 lm. Its pole operability makes the Cameo F2 D PO the perfect choice for anyone who requires precise manual adjustment from the ground and is unable or unwilling to use a ladder. The 240-watt daylight LED has a colour temperature of 5,400 K and a service life of 50,000 hours. Its extremely high colour rendering index of 96 reproduces pure and natural colours.

The F2 D PO has 6 DMX control modes, a fast strobe function and four 16-bit dimmer curves with adjustable response. Six selectable pulse width modulation frequencies up to 25 kHz ensure flicker-free operation. High- efficiency heatpipe cooling and a temperature-controlled fan provide optimal operation. The robust, die-cast aluminium housing is equipped with a rotary encoder and OLED display for easy configuration of the spotlight. 5-pin DMX connectors and Power Twist mains sockets facilitate simple daisy-chaining. 8-way barn door, a gel frame and mains cable are included.
