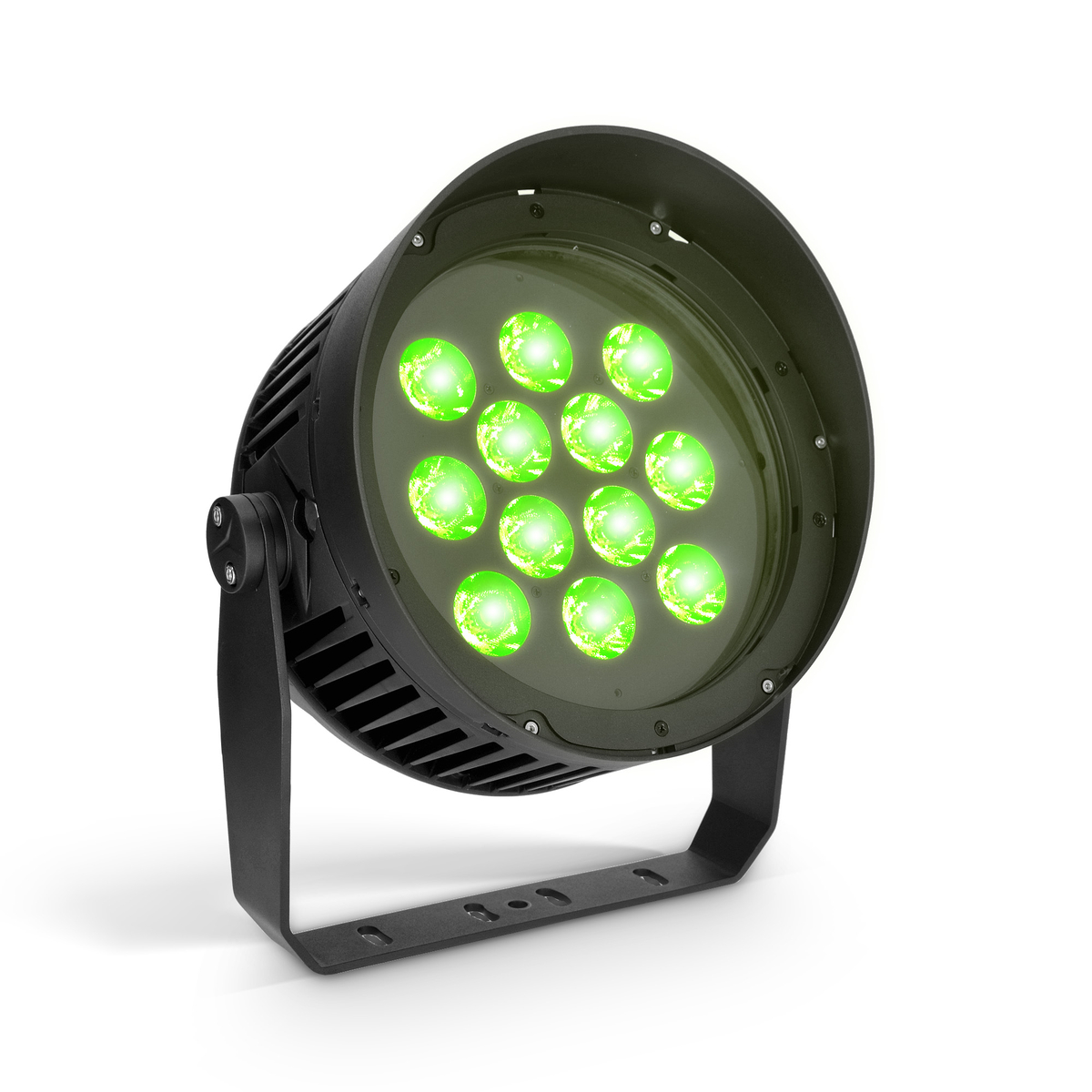

DURA® SPOT 200

DURA® SPOT 200

IP67 Outdoor-Spot with RGBW LED for permanent installation

Item no.: CLDS200

Guarantee: 60 months

EAN: 4049521766053

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:DURA® Series

Versions:

Item highlights:

  • Efficient 20 W RGBW LED
  • IP67 and IK08 classification for permanent outdoor use
  • 4 sizes to fit any application
  • 6° beam angle
  • Various filters for different beam angles available as accessories
  • Filters can be applied without breaking IP Seal
  • Anti glare shield included for less light spill
  • Calibrated LEDs for excellent colour consistency
  • Control via DMX, RDM or external control remote (UNICON)
  • Minimum LED lifetime: 50,000 hours (to >70% luminous output)

Features

RGB additive colour system plus white LEDs
Additional white LEDs create more contrast and clearer colour boundaries. What is more, they improve the creation of white and pastel colours.

Specifications

Product type
LED Lighting
Type
Installation spotlights
Colour spectrum
RGBW
Number of LEDs
12
LED type
4in1 chip
LED power
20 W
Luminous flux
7000 lm
LED PWM Frequency
650 Hz, 1530 Hz, 3600 Hz, 12000 Hz, 18900 Hz, 25000 Hz
Half spread angle
6 °
Tenth dispersion angle
11 °
DMX In/Out
Permanently mounted 5-pin signal cable (DMX In and Out), 2 m, open ends
DMX Functions
CCT, Colour presets, Dimmer 8bit/16bit, Dimmer Curve, Dimmer Response, Device Settings, Calibration, PWM, RGBW, Record User Colour, Strobe, Factory reset
Control
DMX512, RDM
Standalone Functions
Auto programs, CCT, Colour presets, Direct, Timer
Controls
External Control Remote (UNICON)
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
220 W
Inrush Current Power
40A / 1ms (first half-wave)
Colour rendering index (Ra)
>79 @ 8700K
Efficiency
32 lm/W
power factor
>0,9 / 100-240V
Power connector
Permanently mounted mains cable H07RN-F, 3x 1.5 mm², 2 m, open ends
Overvoltage protection
4 KV
Ambient temperature (operating)
-20 - 45 °C
Relative Humidity
< 80%, not condensing
Housing material
Die-cast aluminium
Cabinet colour
Black
Corrosion resistance
C5-M powder coating
Protection class
IP67
Cable ducts
IP68
Impact resistance level
IK08
Housing Cooling
forced air cooling
Max. Mounting height
unlimited
Height
250 mm
Width
282 mm
Depth
284 mm
Weight
13,09 kg
Accessories (included)
Mounting ring for optional interchangeable lenses, Half anti glare shield
Accessories (optional)
External Control Remote (UNICON), Full anti glare shield, Interchangeable lenses (20°, 40°, 55°, 60°x10°)

Description

DURA® SPOT 200

Imagine transforming an ordinary building into a breathtaking work of art with just a few strategically placed lights. With the DURA® Spot fixtures, this vision can become a reality. These IP67-rated outdoor install fixtures are built to withstand any weather conditions, making them perfect for illuminating objects, buildings, and facades of historical or artistic architecture.

With 4 different sizes available, the DURA® Spots are offering flexibility to its users - The DURA® Spot 60, 100, 200 and 400 are all equipped with an efficient 20W RGBW LED and calibrated for excellent colour consistency. The 6° beam angle and anti-glare shield included with each lamp help to minimize light spill and create a focused, stunning effect.

Various filters for different beam angles are available as accessories, providing versatility in lighting design and allowing you to customize the lighting to fit any application. And with control via DMX, RDM, or external control remote via Cameo's UNICON® (CLIREMOTE), you can easily adjust the lighting to suit any mood or occasion.

Boasting a minimum LED lifetime of 50,000 hours (to >70% luminous output), the DURA® Spots are built to last. Whether you're a lighting designer or planner looking to create a unique artistic touch for a building, or a business owner looking to enhance the appearance of your property, the DURA® series is the perfect solution. So why settle for ordinary lighting when you can create something extraordinary with the DURA® Spot series?
