Item no.: LDDSP45KRACK
Guarantee: 24 months
EAN: 4049521278587
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:DSP
Item highlights:
- Pre-loaded 3 U 19” rack case with power amp and patchbay
- DSP 45K 4-channel power amplifier with 24-bit DSP
- 4 x 1,200 watts @ 4 and 2 ohms, 2 x 2,400 watts bridged @ 4 ohms
- Integrated preset library for LD Systems loudspeakers
- Patchbay with 4 x speakON, 4 x XLR/f, 2 x XLR/m, 1 x RJ45 Neutrik connectors
- 7 mm plywood case construction with high-quality hardware and front and rear lids
Specifications
Product type
Power Amplifiers
Type
19" / 3 HE
Items in this set
Controls
Direct access buttons, knob, Exit / lock button, On / off switch
Cooling
2 fans, temperature controlled
Depth
320
Features
19" / 2 U, Active Power Factor Correction, DSP controlled
Frequency response
10 - 22000
Height
89
High Z 100Vrms / 140Vpeak
2 x 2400
High Z 70Vrms / 100Vpeak
4 x 1200
Indicators
LC display
Line input connectors
Neutrik XLR
Line inputs
4
Line output connectors
Neutrik XLR
Line outputs
4
Loudspeaker outputs
4
Maximum Ambient Temperature
0 - 40
Output circuitry
Class H
Power consumption @ full load
1900 W
Power supply
Switching power supply, 100 V AC - 240 V AC, 50 - 60 Hz
Product type
Power Amplifiers
Protection circuits
soft start, over-current, DC protection, RMS speaker limiter, Thermal protection, clip limiter, Short circuit, Multiband limiter
Rated ouput power (1 kHz @ 4 Ohms, bridged)
2 x 2400
Rated ouput power (1kHz @ 2 Ohms)
4 x 1200
Rated ouput power (1kHz @ 4 Ohms)
4 x 1200
Rated ouput power (1kHz @ 8 Ohms, bridged)
2 x 1200
Rated ouput power (1kHz @ 8 Ohms)
4 x 675
Relative Humidity
< 80 % ( non-condensing )
Signal-to-noise ratio
104
Speaker output connections
Speakon
Total Harmonic Distortion (THD)
< 0.05 % @ 1 kHz
Type
4-channel
Width
482
Connectors
4 x Neutrik XLR Chassis Socket, 2 x Neutrik XLR Chassis Connector, 4 x Neutrik Speakon, RJ45
Depth
110
Height
44.5
Length
483
Material
Steel
Material thickness
1.5
Product type
Power Amplifier Accessories
Surface
Powder coated
Type
19" / 1 U
Description

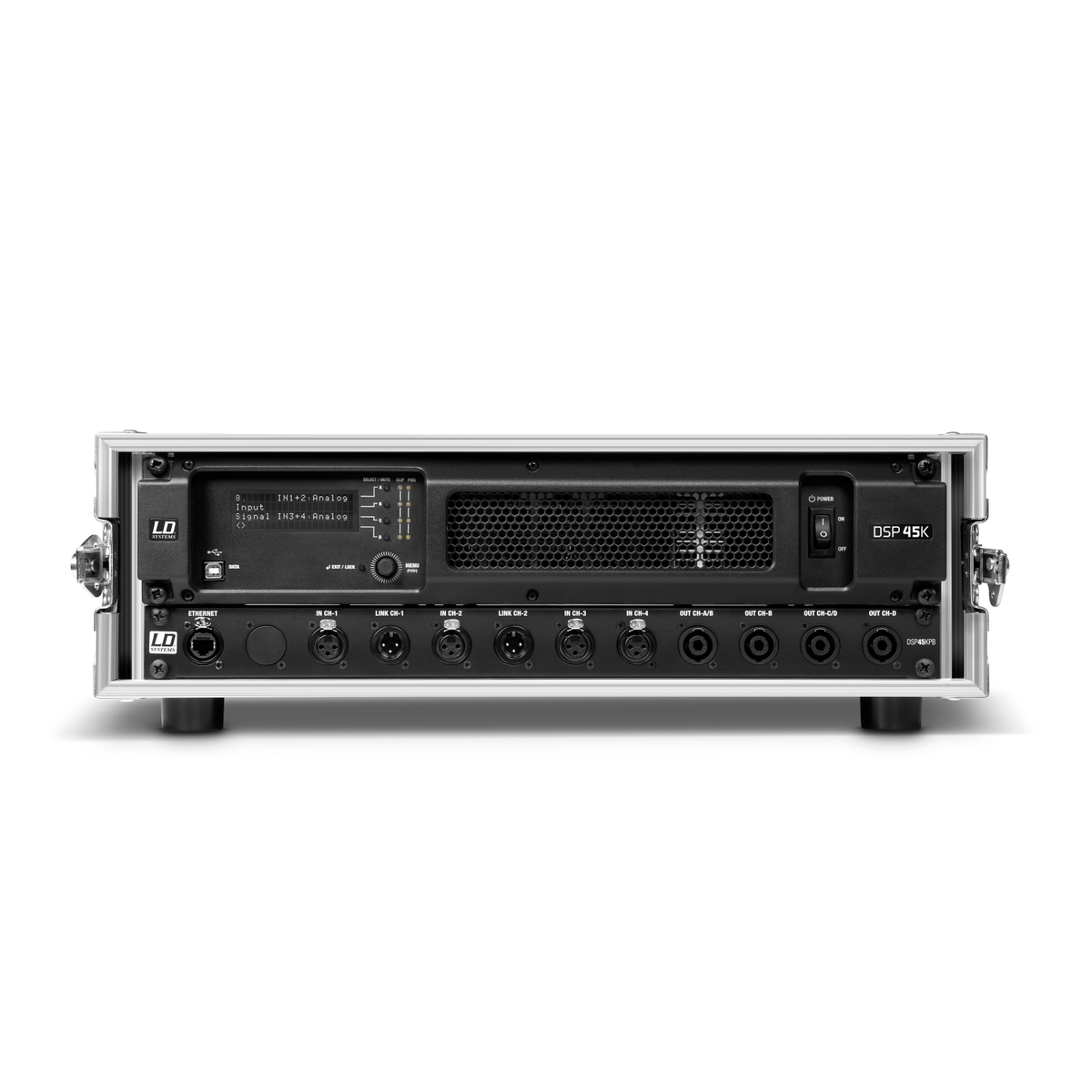

DSP 45 K RACK
This ready-to-use 3 U amp rack comes with LD Systems' DSP 45K power amplifier pre-wired to a patchbay providing convenient front panel input and output access. The rugged case with front and rear lids is made of 7 mm plywood with black film face and high-quality hardware.
Delivering 4 x 1,200 watts into 4 and 2 ohms, the amp features 24-bit signal processing and includes a preset library making it the perfect engine to power passive LD Systems loudspeakers such as Stinger® series models.
