Item no.: LDDQORPBW
Guarantee: 60 months
EAN: 4049521757617
Sliding scale: 1
Unit: Piece
Packaging unit: 10
Series:DQOR
Versions:
Item highlights:
- Includes 2 stainless steel band clamps with diameters up to 290 mm
- Suitable for mounting on cylindrical objects with a circumference of 35 to 290 mm
- Mounting option with screws for small diameter poles
- Compatible with DQOR wall mount, CURV500 WMB, SAT WM10B and SUWMB10(W/B)
Specifications
Product type
Speaker Polemount
Material
stainless steel
Color
White
Surface
Powder-coated
Max. load
20 kg
Width
116.9 mm
Height
165 mm
Depth
43.2 mm
Tube diameter
35 mm - 290 mm
Weight
0,9 kg
Description

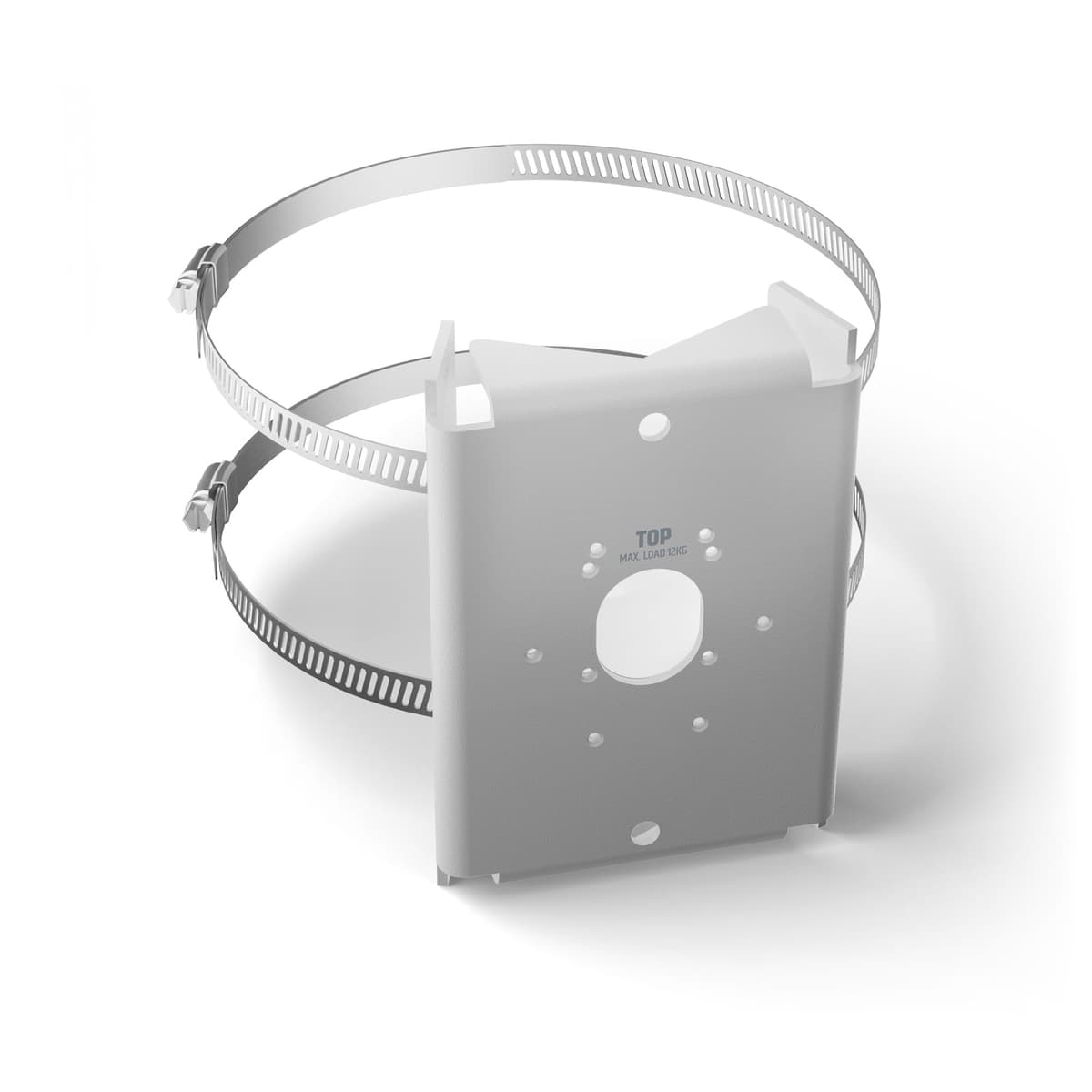

DQOR PB W
This pole mount bracket is designed for mounting DQOR speakers on cylindrical objects (poles, trusses, etc.). The white bracket is made of stainless steel and is supplied with 2 stainless steel band clamps for secure mounting. Alternatively, it can be mounted with two screws (not included). The holes in the bracket are compatible with the Wall Mounting Brackets CURV500 WMB(W), LDSATWMB10(W/B) and SUWMB10(W/B) .
Downloads
Data Sheets & Specifications
CAD & Drawings
Images & Artwork
Catalogues & Publications
Service & Regulation Documents
Display all
Name | Type | Format | File size | ||
|---|---|---|---|---|---|
| LDDQORPBW Product Data Sheet | Product Data Sheet | 410.7 KB | |||
| LD Systems REACh Declaration Adam Hall GmbH | REACh Declaration | 493.71 KB | |||
| LD Systems RoHS Confirmation Adam Hall GmbH | RoHS Confirmation | 197.63 KB | |||
| LDDQORPBW 2D Drawing | 2D Drawing | 142.14 KB | |||
| LDDQORPBW 2D Drawing | 2D Drawing | .dxf | 9.11 MB | ||
| LD Systems Catalogue / Brochure Highlight Brochure Install | Catalogue / Brochure | 6.51 MB | |||
| LD Systems Catalogue / Brochure Adam Hall Group Product Highlights Spring/Summer 2025 | Catalogue / Brochure | 24.23 MB | |||
| LD Systems Catalogue / Brochure Highlight Brochure DJ & Music | Catalogue / Brochure | 22.07 MB | |||
| LD Systems Catalogue / Brochure Highlight Brochure DJ & Music | Catalogue / Brochure | 22.07 MB | |||
| LD Systems Manufacturer's Declaration LD-SYSTEMS | Manufacturer's Declaration | 66.91 KB | |||
| Product Images | Images & Artwork | .zip | - |
Nothing there?
You can find more downloads in our download centre.
