Item no.: LDDQORCBW
Guarantee: 60 months
EAN: 4049521757570
Sliding scale: 1
Unit: Piece
Packaging unit: 6
Series:DQOR
Versions:
Item highlights:
- Mounting bracket for up to four DQOR Loudspeakers
- Optimal for a full 360° sound coverage
- Designed for ceiling and floor mounting
- Pole allows internal cable routing
- Compatible with DQOR wall mount as well as CURV500 WMB, SAT WM10B and SUWMB10(W/B)
- Typical application examples: Shopping centres, supermarkets, warehouses, amusement parks and various others
Specifications
Product type
Cluster mount bracket for DQOR series
Material
Steel
Color
White
Surface
Powder-coated
Max. total load (centered)
50 kg
Max. load capacity per carrier plate
12 kg
Width
155 mm
Height
363 mm
Depth
155 mm
Weight
2,95 kg
Description

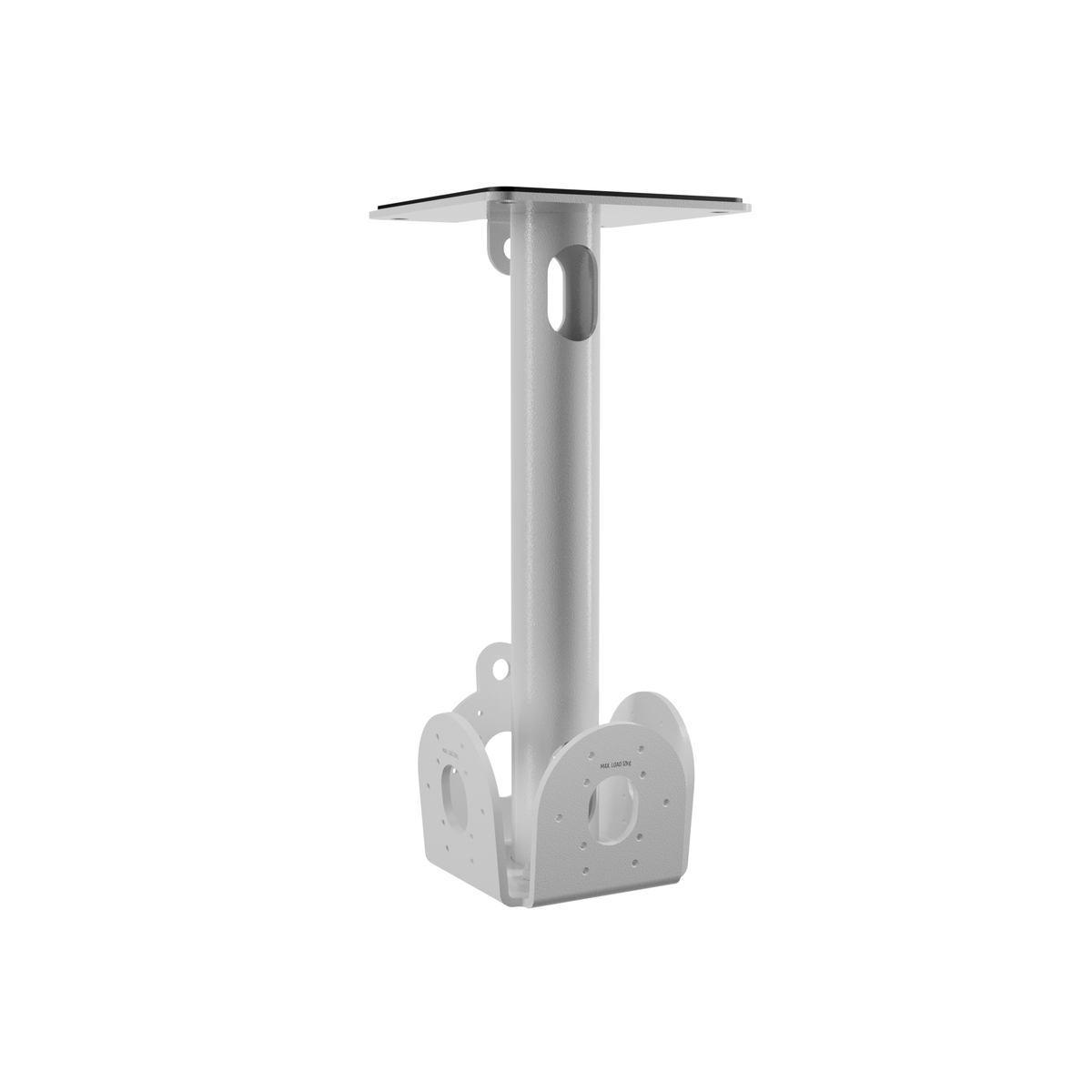

DQOR CB W
The robust mounting bracket for DQOR speakers for ceiling or floor mounting is made of powder-coated steel. Due to the internal cable routing, it offers a clean and elegant solution, both indoors and outdoors. In addition, the bracket has two safety lugs to secure the mounted speakers. The bracket is available in black (LDDQORCB) and white (LDDQORCBW). The mounting holes in the support plates are compatible with the wall brackets CURV500 WMB(W), LDSATWMB10(W/B) and SUWMB10(W/B).
Downloads
Data Sheets & Specifications
CAD & Drawings
Images & Artwork
Catalogues & Publications
Service & Regulation Documents
Display all
Name | Type | Format | File size | ||
|---|---|---|---|---|---|
| LDDQORCBW Product Data Sheet | Product Data Sheet | 311.08 KB | |||
| LD Systems REACh Declaration Adam Hall GmbH | REACh Declaration | 493.71 KB | |||
| LD Systems RoHS Confirmation Adam Hall GmbH | RoHS Confirmation | 197.63 KB | |||
| LDDQORCBW 2D Drawing | 2D Drawing | .dxf | 8.06 MB | ||
| LDDQORCBW 2D Drawing | 2D Drawing | 121.82 KB | |||
| LD Systems Catalogue / Brochure Highlight Brochure Install | Catalogue / Brochure | 6.51 MB | |||
| LD Systems Catalogue / Brochure Adam Hall Group Product Highlights Spring/Summer 2025 | Catalogue / Brochure | 24.23 MB | |||
| LD Systems Catalogue / Brochure Highlight Brochure DJ & Music | Catalogue / Brochure | 22.07 MB | |||
| LD Systems Catalogue / Brochure Highlight Brochure DJ & Music | Catalogue / Brochure | 22.07 MB | |||
| LD Systems Manufacturer's Declaration LD-SYSTEMS | Manufacturer's Declaration | 66.91 KB | |||
| Product Images | Images & Artwork | .zip | - |
